Turn signal lights

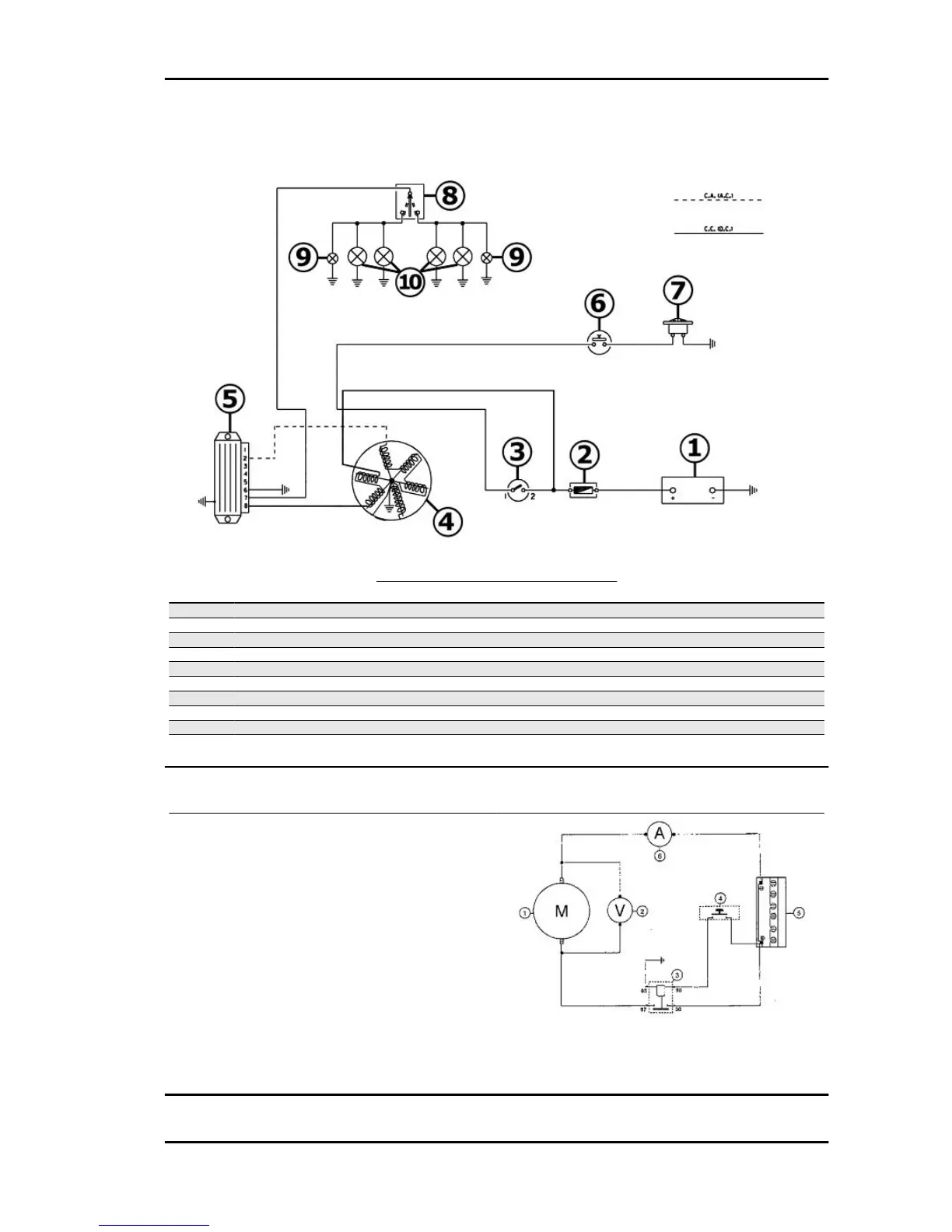

TURN INDICATORS AND HORN
Specification
Desc./Quantity
1 Battery 12V - 4Ah
2 Main fuse 7,5A
3 Key switch
4 Magneto flywheel
5 Voltage regulator
6 Horn button
7 Horn
8 Indicators switch
9 Two (2) turn signal warning light bulbs 12V - 2W
10 4 Turn indicator bulbs 12V-10W
Checks and inspections
1) No-load test: the starter motor, when unloaded,
must absorb no more than 10A with a supply volt-
age ≥ 12V and must rotate at ≥ 15,000 rpm.
2) Load test: when the starter motor is so braked
that it absorbs 47A with supply voltage ≥ 10V, tor-
que of ≥ 0.2 N•m must be obtained at 10,000 rpm.
3) Static torque test: when the rotor is locked and
the supply voltage is <7V, the absorbed current
must not exceed 130A and the torque must be at
least 0.55 N•m
Specifications
Fly Electrical system
ELE SYS - 49
