020363Y 20-mm guide
020359Y 42x47-mm Adaptor

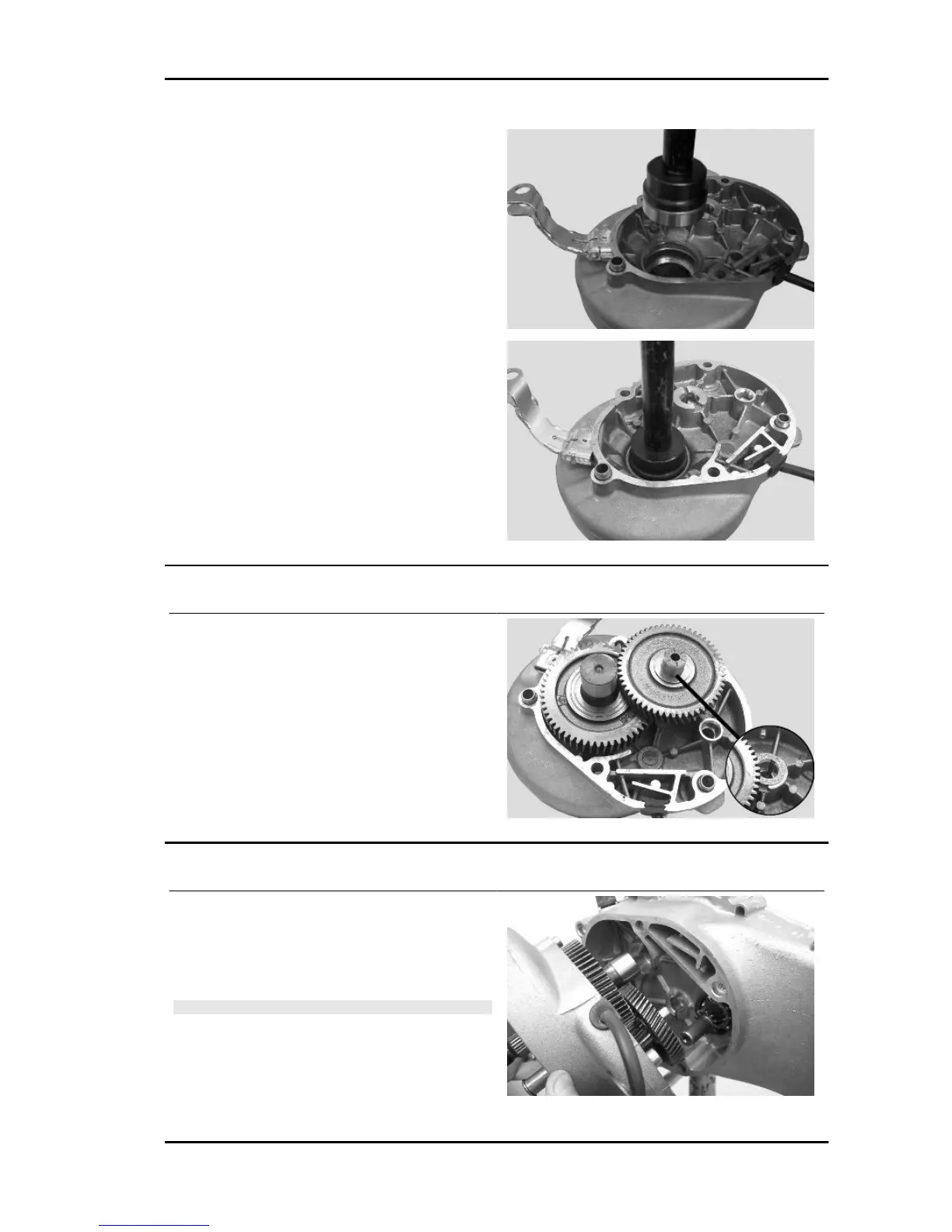

Refitting the hub bearings
- Remove the wheel axle on the cover and pay at-
tention not to damage the sealing lip of the oil seal
- Apply a thin layer of grease on the two shim
washers of the intermediate gear and fit one on the
cap so that it does not interfere with the wheel axle
gear when placing the transmission shaft
Refitting the ub cover
- Apply product recommended for surfaces on the
hub cap and refit cap on the crankcase
- Fit the 5 screws and tighten them to the specified
torque.
N.B.
CLEAN THE CONTACT SURFACES OF THE HUB COVER
AND THE HALF CRANKCASE OF RESIDUE FROM PREVI-
OUS GASKETS BEFORE APPLYING A NEW ONE.
Recommended products
Loctite 510 Liquid sealant
Fly Engine
ENG - 75

PIAGGIO Fly Specifications

General

Transmission	Automatic CVT
Front Brake	Disc
Rear Brake	Drum
Starter	Electric and kick
Engine Type	Single cylinder, 4-stroke
Cooling System	Air-cooled
Front Suspension	Telescopic fork
Front Tire	120/70-12
Fuel System	Carburetor
