Ø 11.98 mm

Minimum diameter allowed - Bearing B:

Ø 15.96 mm

- If any of the above dimensions are outside the

specified limits, or there are signs of excessive

wear, replace the defective components with new

ones.

N.B.

A BALL BEARING IS FITTED ON BEARING «A»; CONSE-

QUENTLY, BEARING «B» IS THE MOST IMPORTANT AS IT

WORKS DIRECTLY ON THE HEAD ALUMINIUM

Characteristic

Standard height - Intake:

25.935 mm

Standard height - Discharge:

25.935 mm

Fitting clearance

Maximum admissible axial clearance: 0.5 mm

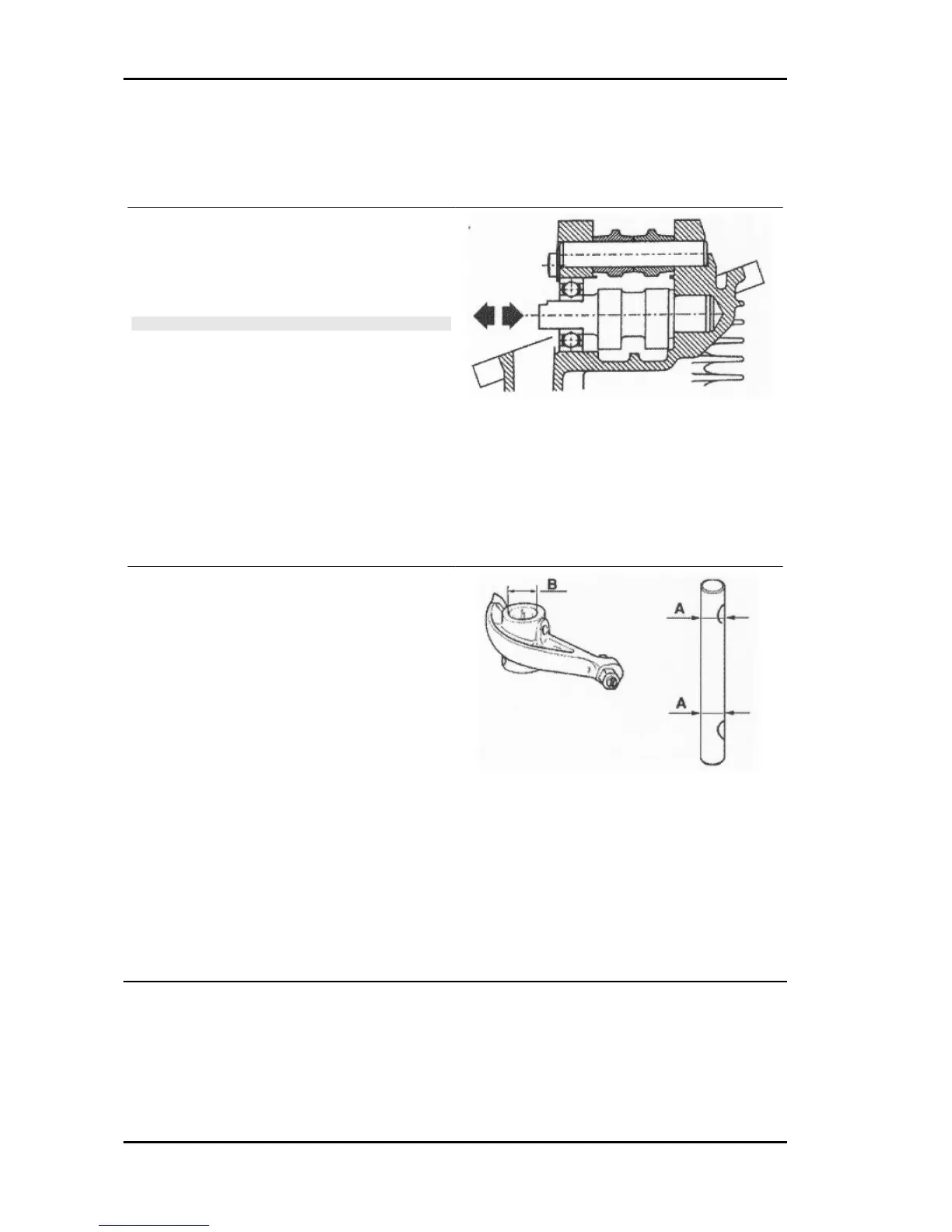

- Check there are no signs of scoring or wear on

the rocking lever bolt.

- Measure the diameter «A».

- Measure the internal diameter of each rocking

lever. level «B».

Check there are no signs of wear on the pad from

contact with the cam and on the jointed adjustment

plate.

- In case of anomalies, replace the damaged com-

ponents.

Characteristic

Minimum admissible diameter

Ø 10.970 mm

Maximum diameter allowed:

Ø 11.030 mm

Engine MSS ZIP 100 4T

ENG - 102
