PIAGGIO ZIP 4T User Manual

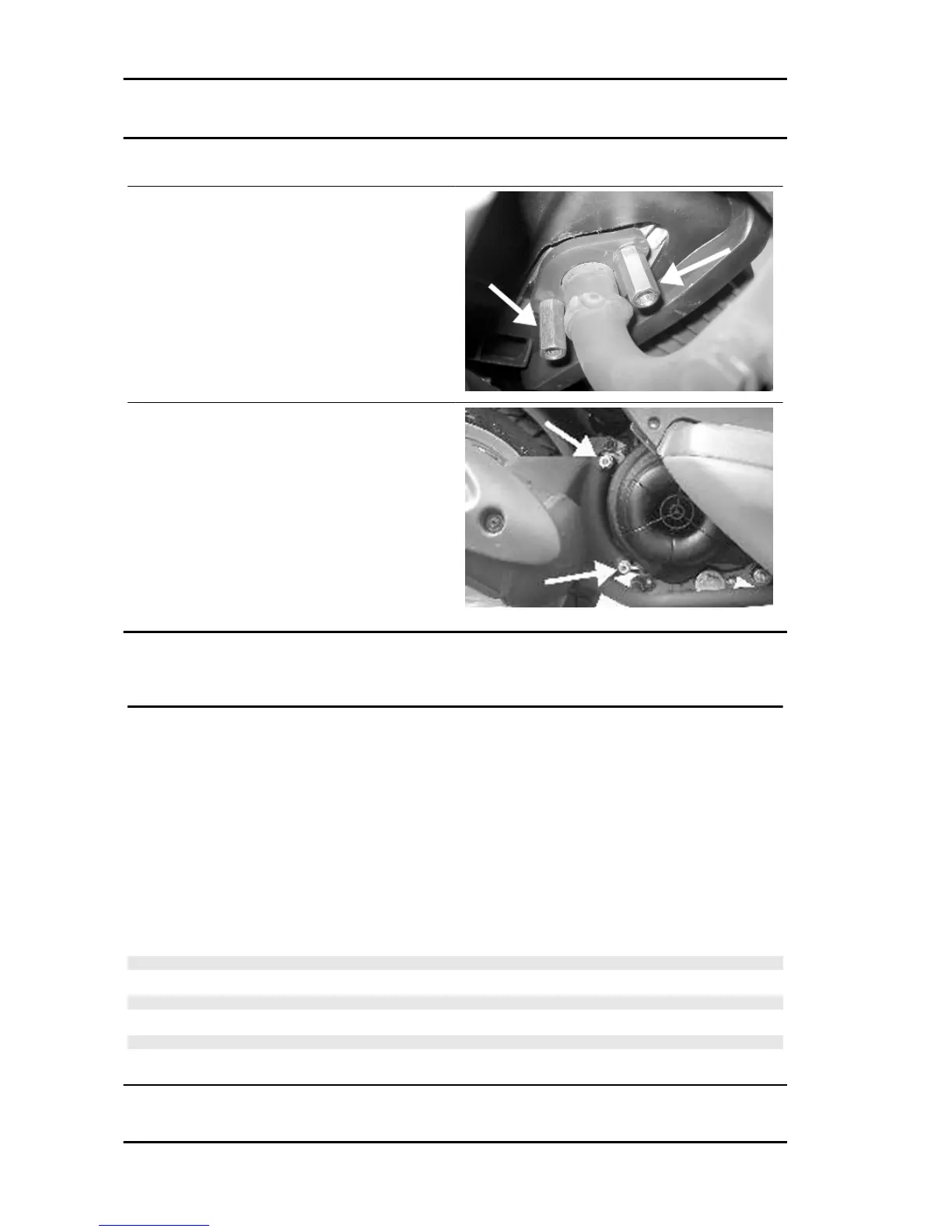

Exhaust assy. Removal
- Remove the 2 fixing nuts from the manifold to the
head
- Undo the 2 screws fixing the muffler to the hous-
ing; then remove the whole muffler paying atten-
tion to the interference between its supporting
bracket and the cooling cover.
Removal of the engine from the vehicle
Removing the engine from the chassis
-Disconnect the battery.
-Remove the muffler assembly.
- Remove the rear wheel.
- Remove the rear brake mechanical transmission.
-Disconnect the electric terminals.
-Remove the throttle grip transmission.
- Disconnect the tubing (petrol-vacuum operated cock control).
- Disconnect the swinging arm on the engine side
- Disconnect the rear shock absorber lower clamping
WARNING
Be very careful when handling fuel.
CAUTION
When installing the battery, first attach the positive cable and then the negative cable.
WARNING
Wear safety goggles when using hitting tools.
Engine from vehicle MSS ZIP 100 4T
ENG VE - 64
