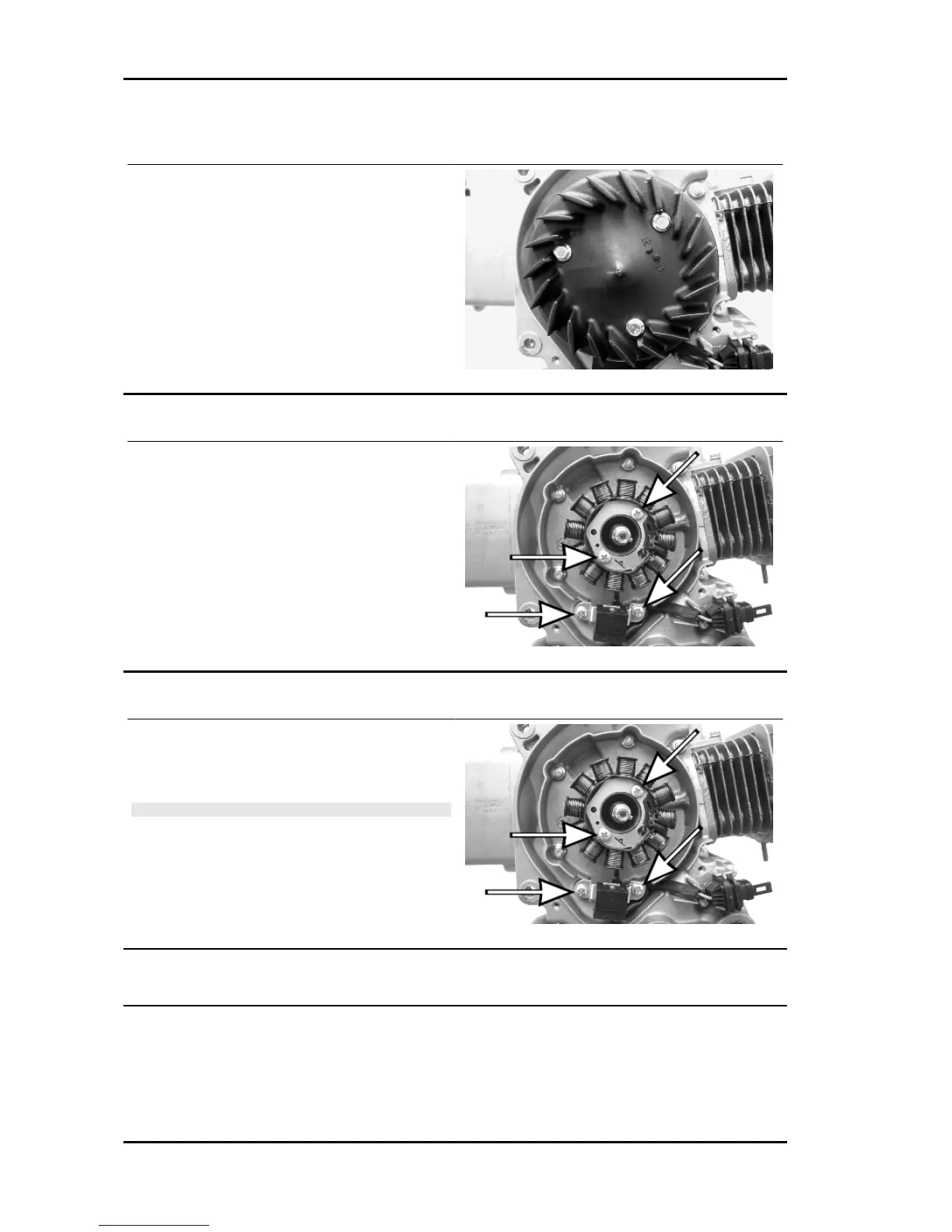

Cooling fan

- Remove the cooling fan by undoing the 3 screws

fixing it to the rotor

- When refitting the fan, pay attention that the

screw holes in the fan and the rotor coincide, then

tighten screws at the specified torque.

Removing the stator

- Remove the 2 Pick-Up screws and the 2 stator

fixing screws indicated in the figure.

- Remove the stator and its wiring.

Refitting the stator

- Refit the stator and flywheel carrying out the re-

moval procedure in reverse, tightening the retain-

ers to the specified torque.

N.B.

THE PICK-UP CABLE MUST BE POSITIONED ADHERING

TO THE FUSION TONGUE ON THE CRANKSHAFT IN SUCH

A WAY AS TO AVOID BEING CRUSHED BY THE FAN COV-

ER ASSEMBLY.

Locking torques (N*m)

Pick-up screws 3 ÷ 4 Stator screws 3 ÷ 4

Flywheel and starting

Engine MSS ZIP 100 4T

ENG - 82
