Gasket

Locking torques (N*m)

hub cap screws 24 - 26

Flywheel cover

Cooling hood

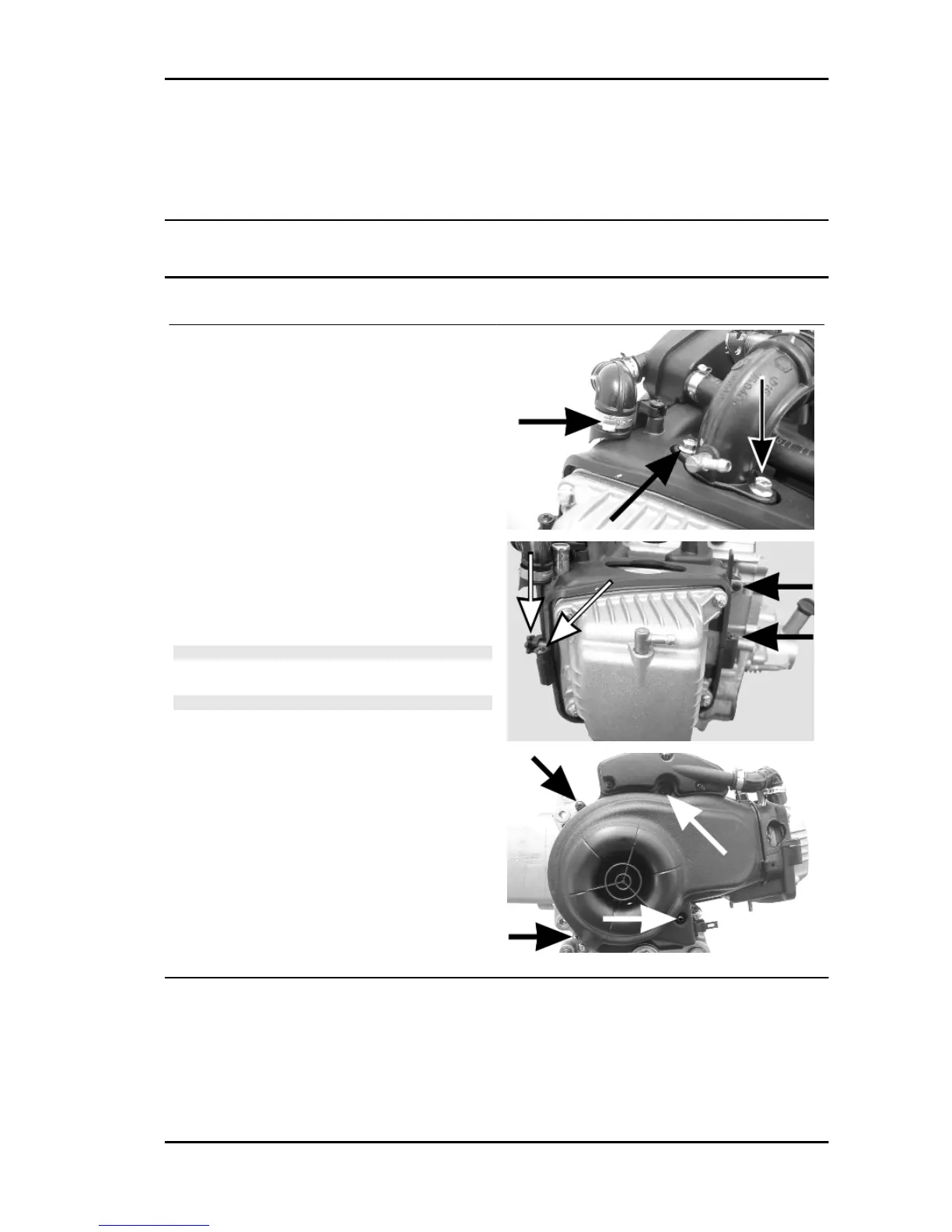

- Remove the manifold and the carburettor undo-

ing the 2 fixing screws on the head

- Remove the fastening clamp of the secondary air

pipe and disconnect it

- Remove the 4 front coupling screws (1 of them is

a knob) and the side fixing screw at the crankcase

base.

- Remove the 4 side screws

- Extract the 3 covers - Remove the cover sealing

gaskets on the head

- For refitting, repeat the removal steps but in re-

verse order

CAUTION

TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL

CONNECTOR.

N.B.

WHEN REFITTING THE COVER, TAKE CARE NOT TO DAM-

AGE THE STATOR WIRING.

MSS ZIP 100 4T Engine

ENG - 81
