PIAGGIO ZIP 4T - Refitting the Hub Bearings; Refitting the Ub Cover

020363Y 20-mm guide
020359Y 42x47-mm Adaptor

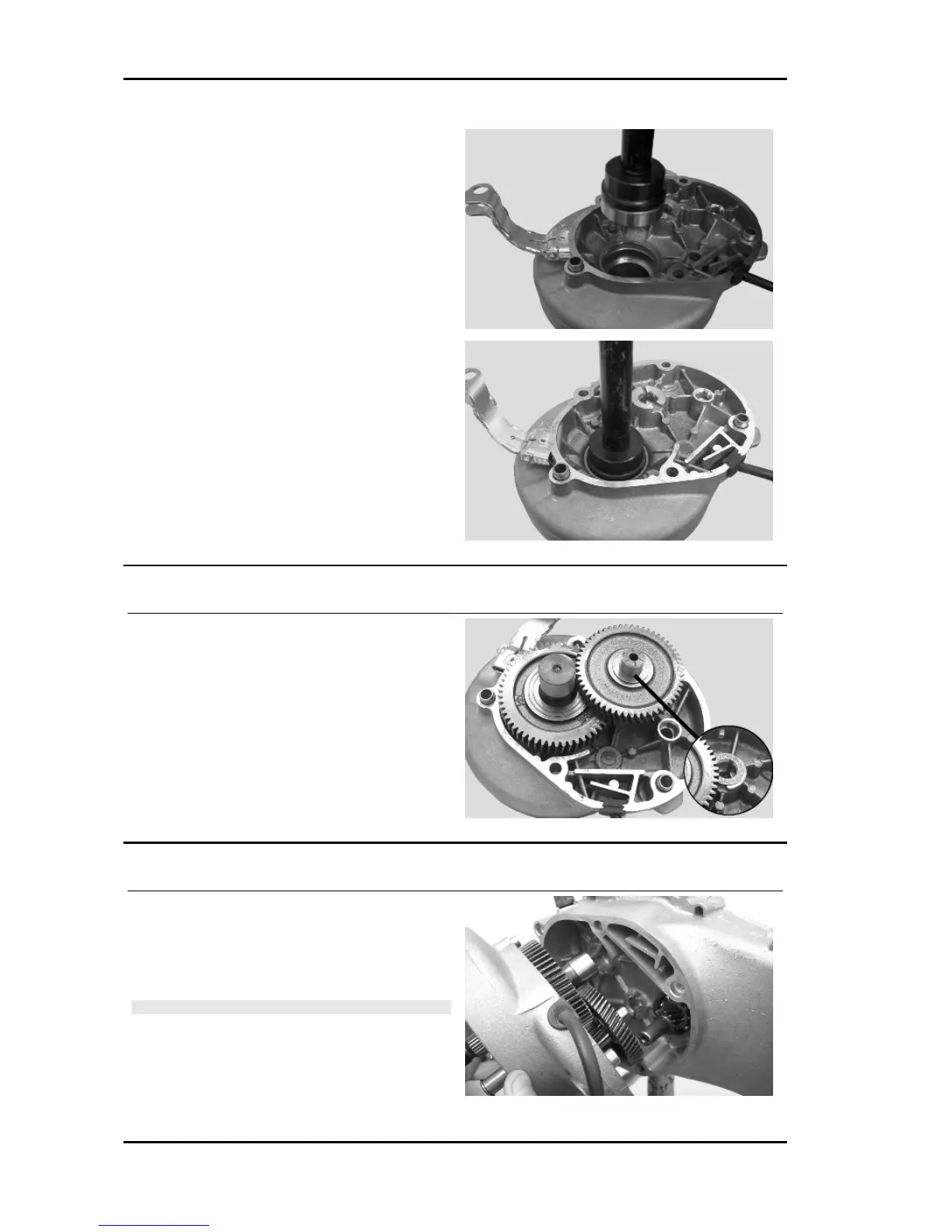

Refitting the hub bearings
- Remove the wheel axle on the cover and pay at-
tention not to damage the sealing lip of the oil seal
- Apply a thin layer of grease on the two shim
washers of the intermediate gear and fit one on the
cap so that it does not interfere with the wheel axle
gear when placing the transmission shaft
Refitting the ub cover
- Apply product recommended for surfaces on the
hub cap and refit cap on the crankcase
- Fit the 5 screws and tighten them to the specified
torque.
N.B.
CLEAN THE CONTACT SURFACES OF THE HUB COVER
AND THE HALF CRANKCASE OF RESIDUE FROM PREVI-
OUS GASKETS BEFORE APPLYING A NEW ONE.
Recommended products
Loctite 510 Liquid sealant
Engine MSS ZIP 100 4T
