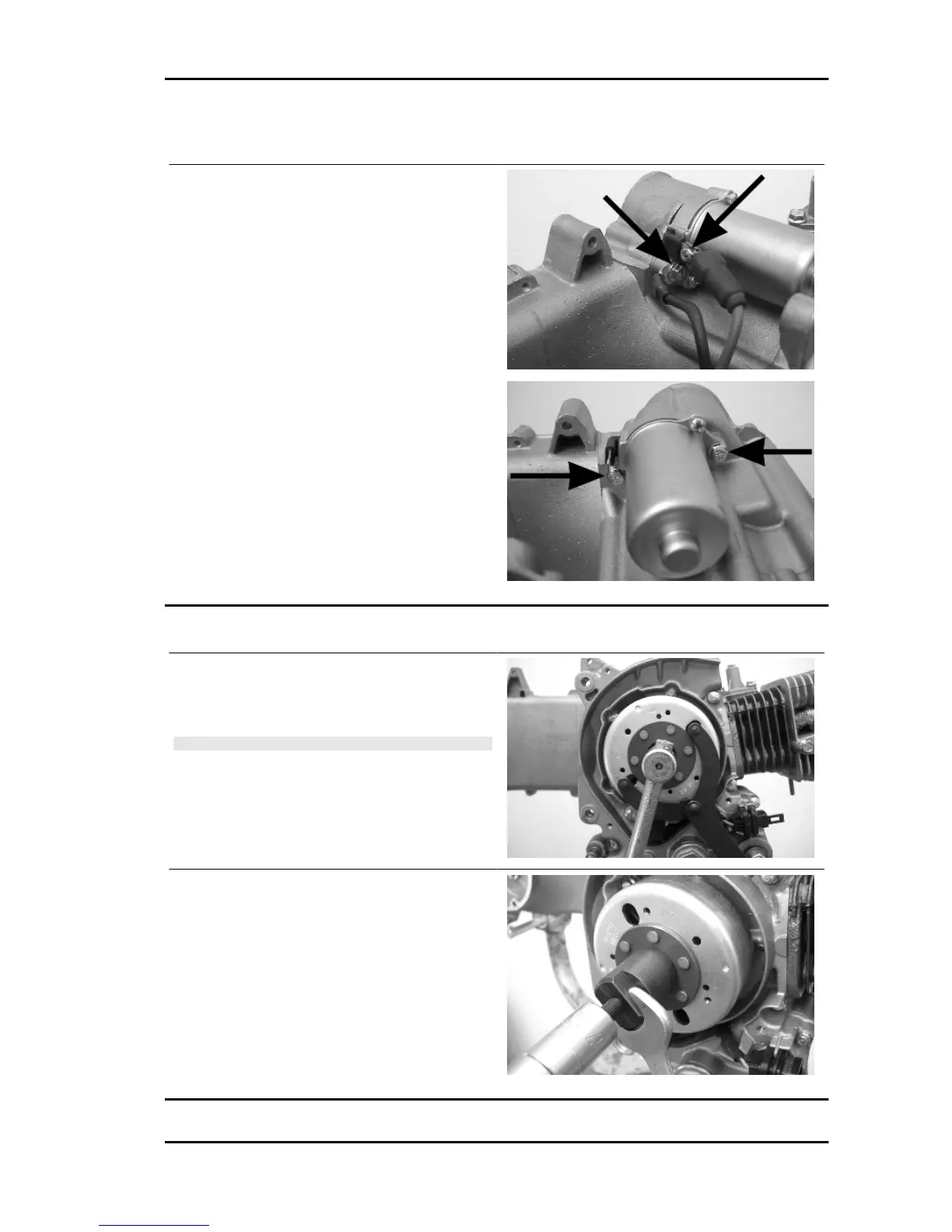

Removing the starter motor
- Undo the screw on the power positive contact
and disconnect the cable
- Undo the 2 screws fixing the starter motor to the
crankcase and recover the power wiring.
Removing the flywheel magneto
- Lock the rotation of the flywheel using the calliper
spanner.
- Remove the nut.
CAUTION
THE USE OF A CALLIPER SPANNER OTHER THAN THE
ONE SUPPLIED COULD DAMAGE THE STATOR COILS
- Extract the flywheel with the extractor.
Specific tooling
020565Y Flywheel lock calliper spanner
020162Y Flywheel extractor
MSS ZIP 100 4T Engine
ENG - 83
