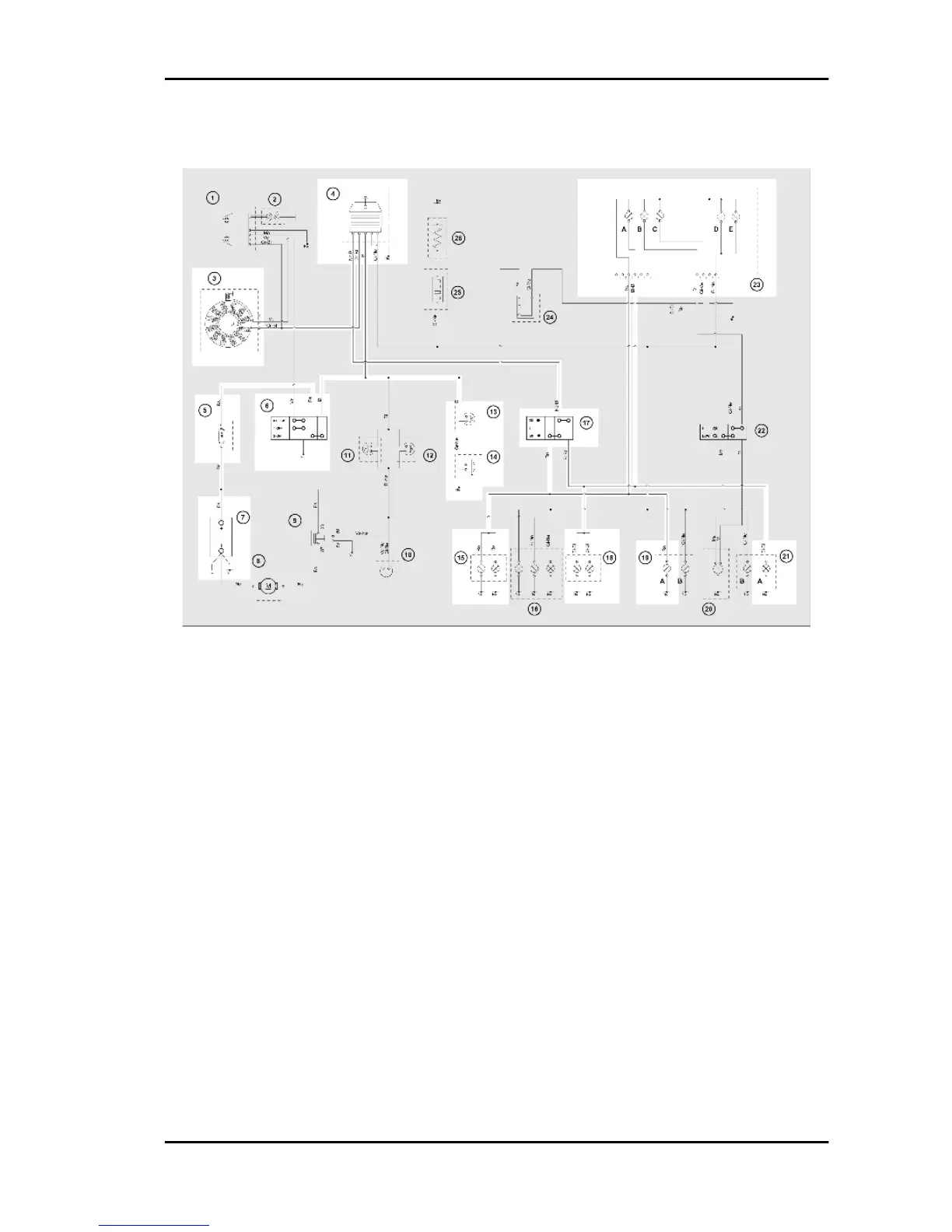

Turn signal lights

KEY:

3. Magneto flywheel

4. Voltage regulator

5. Main fuse

6. Key switch

7. Battery

13. Horn button

14. Horn

15. Left rear turn indicator bulbs

17. Turn indicator switch

18. Right rear turn indicator bulbs

19. Left side headlight assembly

A. Left front turn indicator bulb

B. Front tail light bulb

21. Right side headlight assembly

A. Left front turn indicator bulb

B. Front tail light bulb

23. Instrument panel

MSS ZIP 100 4T Electrical system

ELE SYS - 53
