Pilous ARG 200 plus - 4 Machine Description

I base
J coolant tank
K control panel
L arm swing locking lever
M movable bar clamping lever
H turntable
with pump
N quick-clamping lever
O solid bar
P moving bar
Q angular scale
R end switch
S lifting lever
T switchboard
A arm
B saw blade
C saw blade tensioning
D gearbox
E motor
F oil damper
G vice

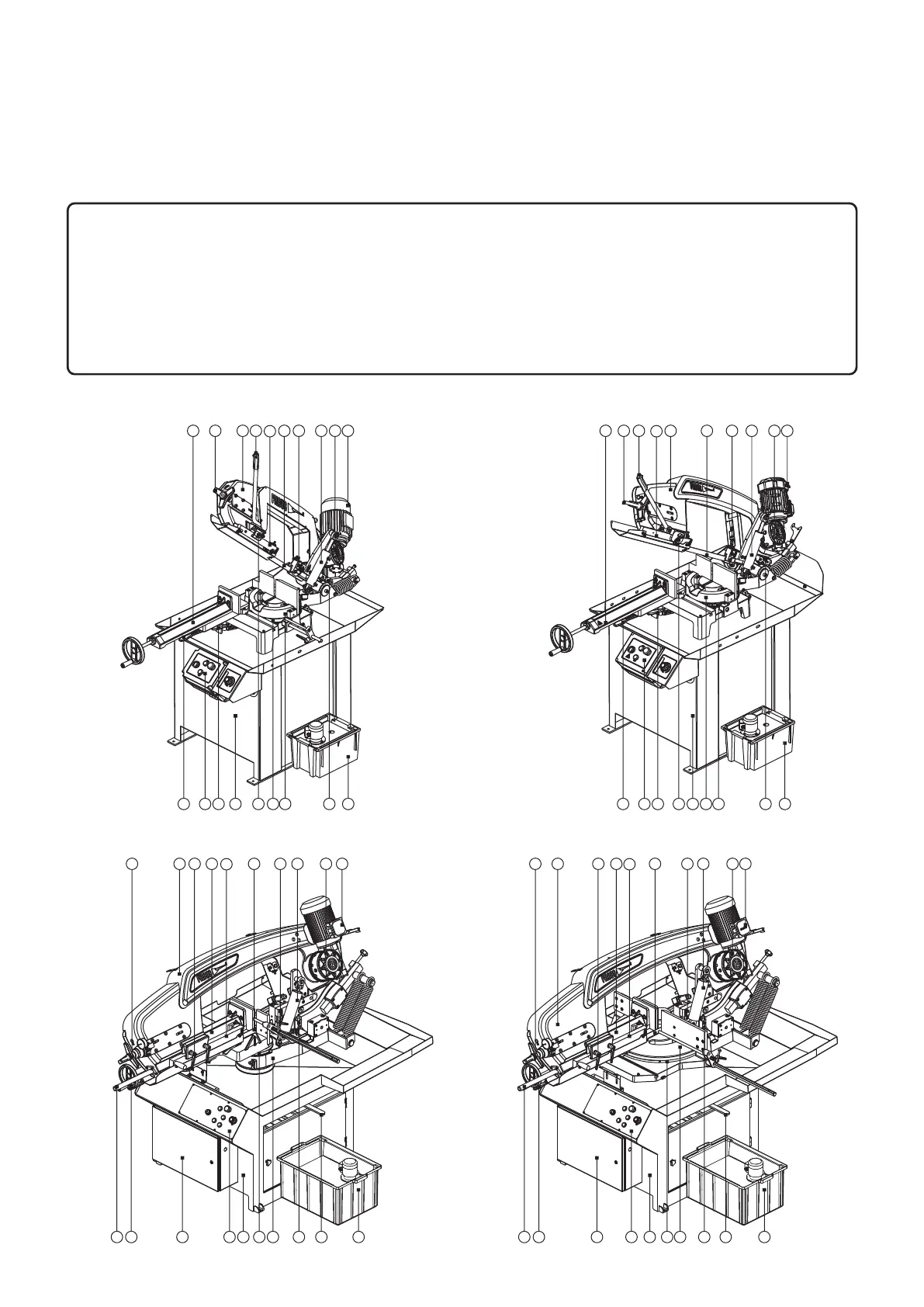

4. Machine description
Gravity self-feeding metal-cutting band saws allow for cutting of a wide range of different materials. The arm uplift, workpiece feed,
clamping and removal of workpieces are carried out manually. A welded metal saw blade serves as the cutting tool. The saw blade is
mechanically tensioned on the blade wheel. It is powered by an idler wheel that is powered through a work gearbox by a motor. In the
machining zone, the saw blade is guided through the saw blade guide heads. Outside the machining zone the saw blade is protected
by moving and fixed guards.
ARG 260 plus, 300 plus, 330 plus
ARG 235, 260, 300, 330
ARG 235 plus, ARG 260 plus E
B O F D EGC
IS K LH R
A
Q J
B O F D EG C
N K
P
L H R
A
QM
S
J
M
P
I
N
O F D E
LR J
BG
IK HQ
P
M
A
C
S N T T
ARG 200 plus
B O F D EG C
N K
P
L H R
A
QM
S
JI
