Pilous ARG 200 plus - Cutting Angle Settings

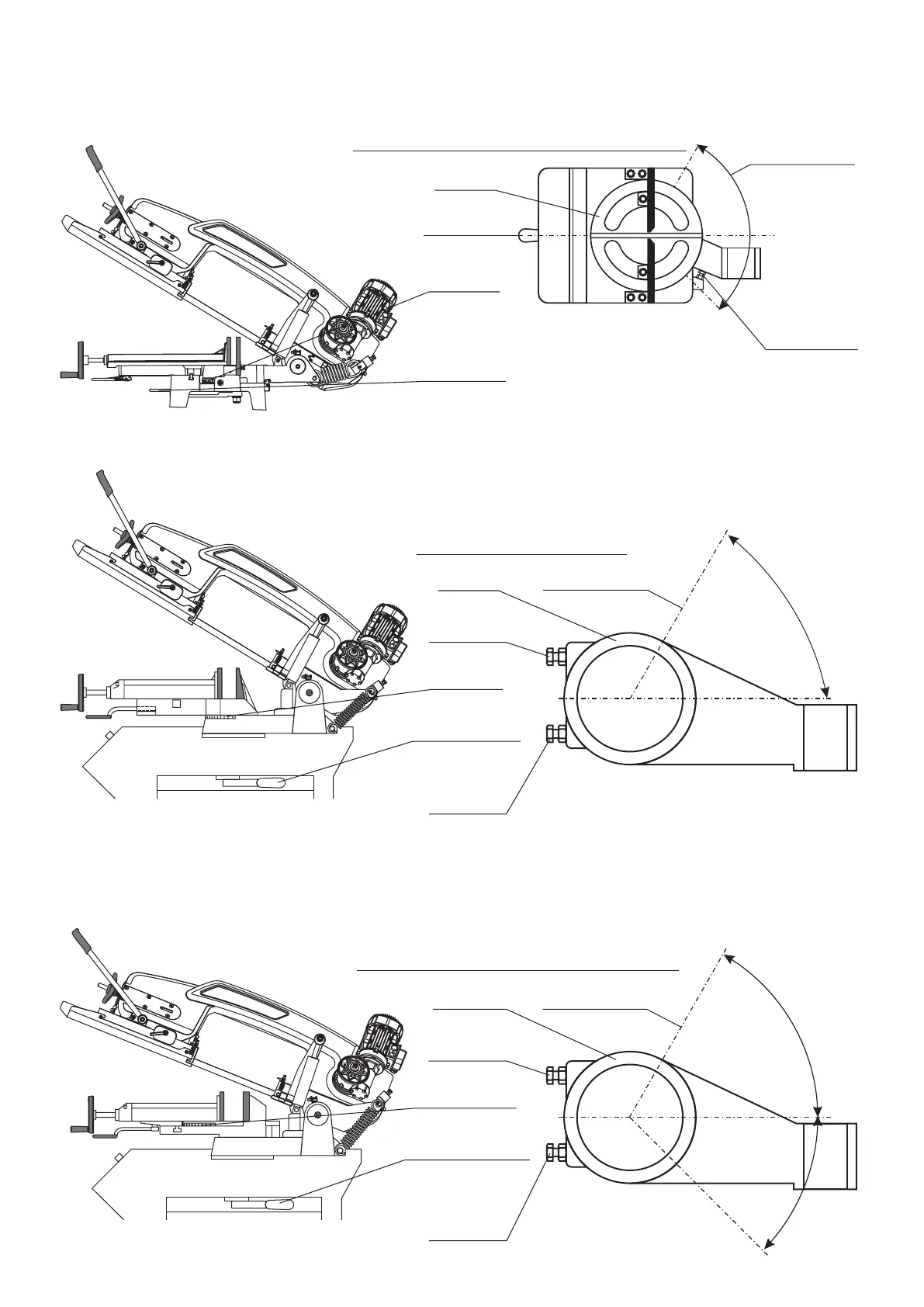

4.4.2. Cutting Angle Settings
TURNTABLE
ANGLE SCALE
90° - 45°
ARG 200 plus, ARG 235 plus, ARG 260 plus E
90° - 60°
FOLDING STOP 90°
CONTINUOUS
ARM SWING RANGE
ARM
LOCKING LEVER
ARM
LOCKING LEVER
ARG 260, ARG 300, ARG 330
CONTINUOUS
ARM SWING RANGE
TURNTABLE
FIXED STOP
90° ARM SWING
ANGLE SCALE
ARM LOCKING LEVER
90°- 60°90°- 60°
FIXED STOP
60° ARM SWING
CONTINUOUS
ARM SWING RANGE
TURNTABLE
FIXED STOP
45° ARM SWING
ANGLE SCALE
ARM LOCKING LEVER
90° - 60°
FIXED STOP
60° ARM SWING
90° - 45°90° - 45°
ARG 260 plus, ARG 300 plus, ARG 330 plus
