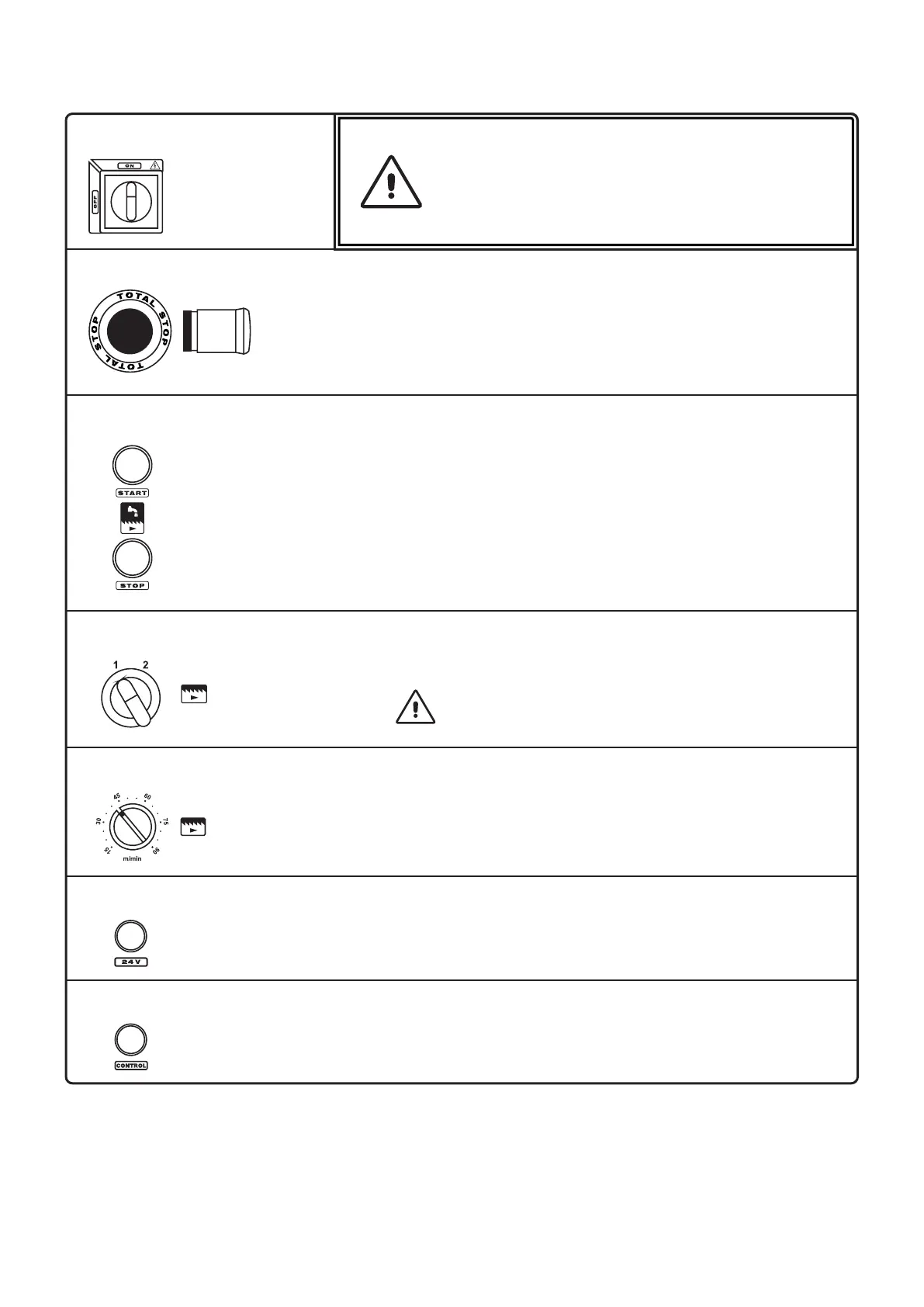

Basic functions
Use the controller on the control panel on the base of the saw to change between cutting speeds.
1 - 40 m/min
2 - 80 m/min
Caution: Change the cutting speed only if the motor
is stopped (the saw blade is still).
SAW BLADE SPEED CONTROLLER 2 speed(only version)
Green START button - starts the saw blade motor and the coolant pump.
When starting the saw blade motor, the arm has to be raised above the switching track of the limit switch
that ends the cut. Otherwise the motor will not start.
Red button STOP - stops the saw blade motor and the coolant pump.
CAUTION - Upon pressing the switch, the arm keeps on descending - DANGER OF INJURY!
SAW BLADE START - STOP
Ensures emergency stop of the saw blade motor and coolant pump. You can put
the machine back to operation only after you manually unlock the switch by
pulling or twisting!
CAUTION - Upon pressing the switch, the arm keeps on descending - DANGER
OF INJURY!
TOTAL STOP
Before you start the saw blade motor, always make sure that
the saw blade is not in contact with the workpiece at the
point of cutting.
SAW BLADE SPEED CONTROLLER (only the F version - frequency converter)
MAIN SWITCH
Use the controller on the control panel on the base of the saw to change between cutting speeds.
15 - 90 m/min
LAMP 24 V
CONVERTER FAILURE INDICATION
The lamp is on if voltage of 24 V flows to the control panel.
The red lamp is on - frequency converter failure (see Section 7).
Only the F version -
frequency converter.
Placed on the switchboard.
