Operating Manual PNOZ s4
21396-EN-21
| 42
Remove plug-in terminals
Procedure

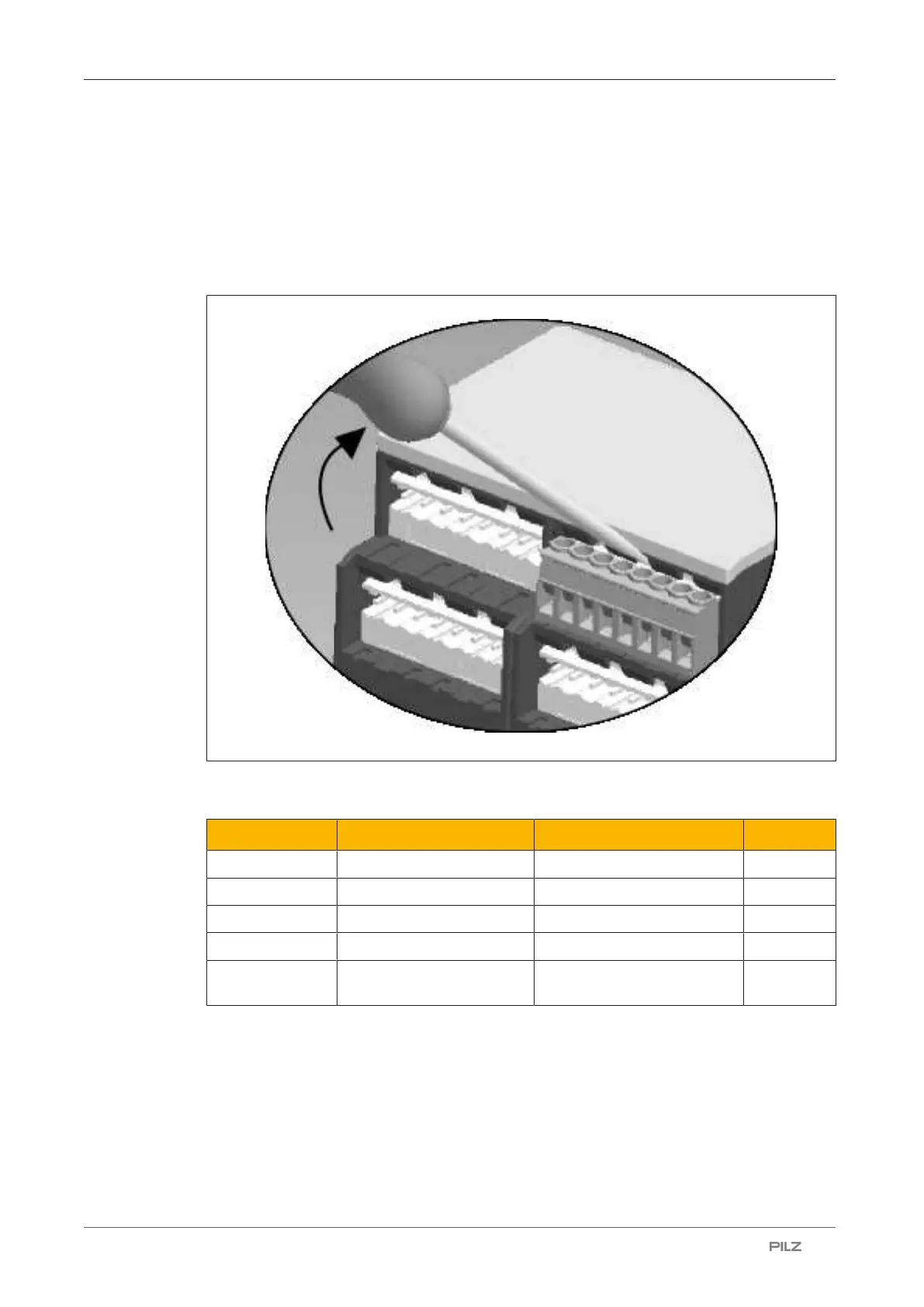

} Insert a suitable screwdriver into the housing recess behind the terminal.
Do not remove the terminals by pulling the cables!
} Lever the terminal out.
Order reference
Product type Features Connection type Order no.
PNOZ s4 24 V DC Screw terminals 750104
PNOZ s4 48 – 240 VAC/DC Screw terminals 750134
PNOZ s4 C 24 V DC Spring-loaded terminals 751104
PNOZ s4 C 48 – 240 VAC/DC Spring-loaded terminals 751134
PNOZ s4 C
Coated
24 V DC Spring-loaded terminals 751184
EC declaration of conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma-
chinery of the European Parliament and of the Council. The complete EC Declaration of
Conformity is available on the Internet at www.pilz.com/downloads.
Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2,
73760 Ostfildern, Germany

Pilz PNOZ s4 Specifications

General

Safety category	4
Performance level	e
SIL CL	3
Supply voltage	24V DC
Number of safety contacts	3
Number of auxiliary contacts	1
Stop category	0 / 1
Width	45 mm
Depth	121 mm
Rated operational current Ie	6 A
Standards	EN ISO 13849-1, EN 62061
