Pilz PNOZ s4 User Manual

PNOZ s4
Operating Manual PNOZ s4
21396-EN-21
| 9

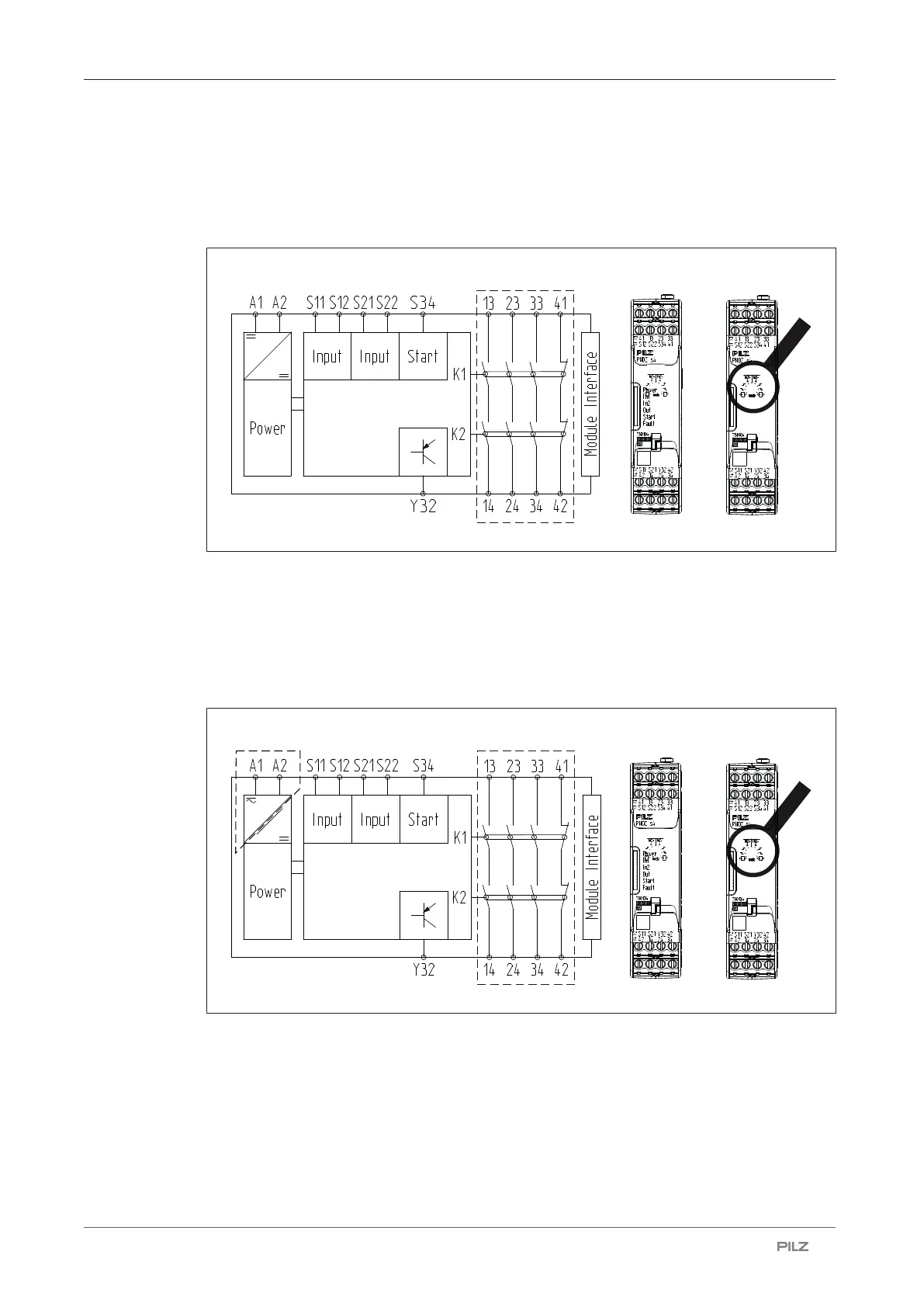

Block diagram/terminal configuration
Unit types with UB 24 VDC
} U
B
: 24 VDC; Order no. 750104, 751104, 751184
*
Fig.: Centre: Front view with cover, right: Front view without cover
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
Unit types with UB 48 - 240 VAC/DC
} U
B
: 48 - 240 VAC/DC; Order no. 750134, 751134
*
*
Fig.: Centre: Front view with cover, right: Front view without cover
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)

Pilz PNOZ s4 Specifications

General

Safety category	4
Performance level	e
SIL CL	3
Supply voltage	24V DC
Number of safety contacts	3
Number of auxiliary contacts	1
Stop category	0 / 1
Width	45 mm
Depth	121 mm
Rated operational current Ie	6 A
Standards	EN ISO 13849-1, EN 62061
