Supplementary data
CAUTION!
It is essential to consider the relay's service life graphs. The relay outputs'
safety-related characteristic data is only valid if the values in the service life
graphs are met.
The PFH value depends on the switch frequency and the load of the relay output.
If the service life graphs are not accessible, the stated PFH value can be used irrespective
of the switch frequency and the load, as the PFH value already considers the relay's B10d
value as well as the failure rates of the other components.
Service life graph
The service life graphs indicate the number of cycles from which failures due to wear must
be expected. The wear is mainly caused by the electrical load; the mechanical load is negli-
gible.
Unit types with UB 24 VDC
} U
B
: 24 VDC; Order no. 750104, 751104, 751184
Cycles x 1000
Switching current (A)

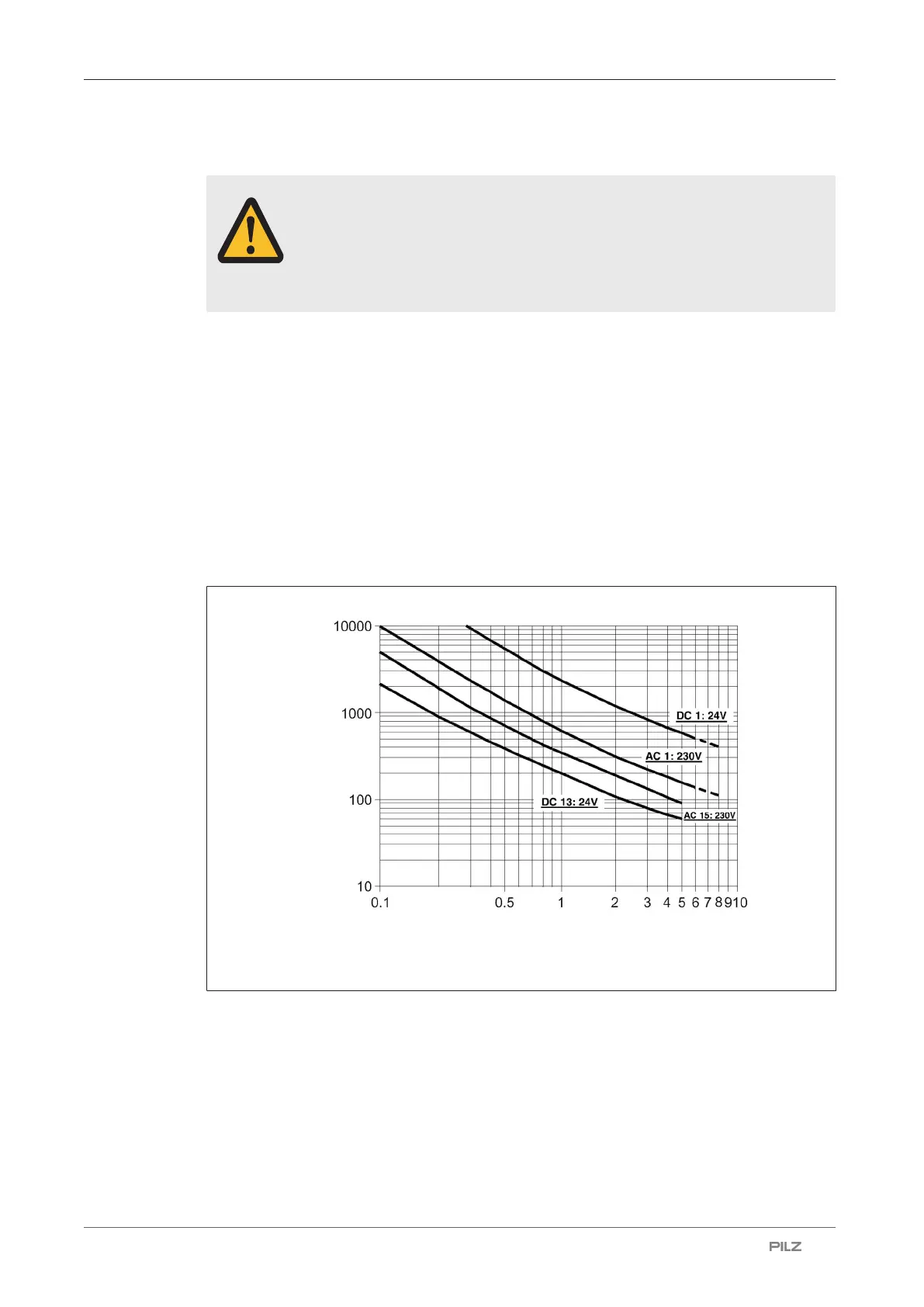

Fig.: Service life graphs at 24 V DC and 230 V AC

Pilz PNOZ s4 Specifications

General

Safety category	4
Performance level	e
SIL CL	3
Supply voltage	24V DC
Number of safety contacts	3
Number of auxiliary contacts	1
Stop category	0 / 1
Width	45 mm
Depth	121 mm
Rated operational current Ie	6 A
Standards	EN ISO 13849-1, EN 62061
