Service life graph
The service life graphs indicate the number of cycles from which failures due to wear must
be expected. The wear is mainly caused by the electrical load; the mechanical load is negli-
gible.
Cycles x 1000
Switching current (A)

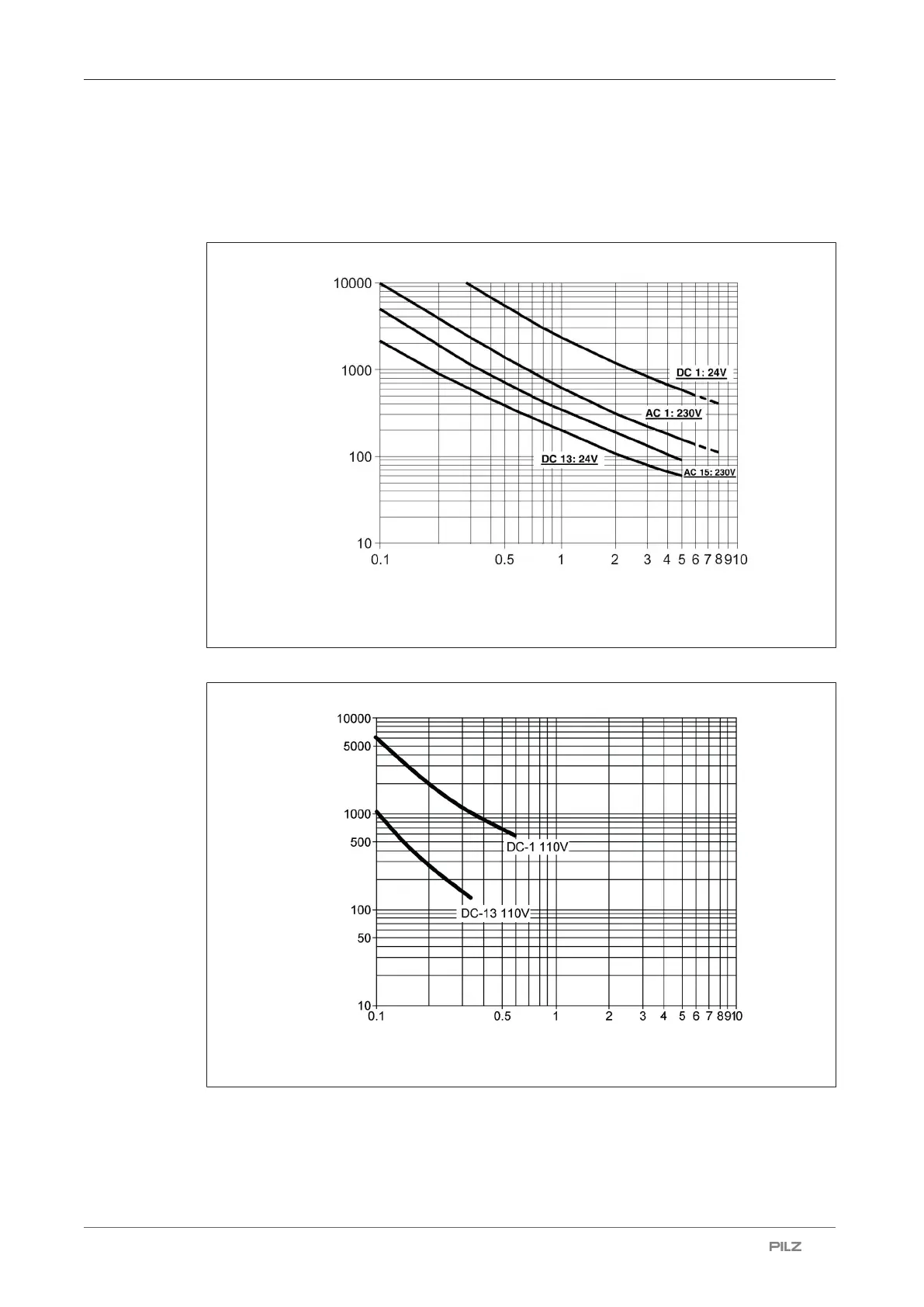

Fig.: Service life graphs at 24 V DC and 230 V AC
Cycles x 1000
Switching current (A)
Fig.: Service life graphs at 110 V DC

Pilz PNOZ X1 Specifications

General

Type	Safety Relay
Supply Voltage	24 VDC
Auxiliary Contacts	1 N/C
Width	45 mm
Mounting	DIN Rail
Number of safety contacts	2
Stop Category	0
Height	87 mm
Depth	121 mm
Rated current	6 A
Protection class	IP20
Safety Contacts	2 N/O
Operating Temperature Range	-10°C to +55°C
Weight	200 g
