Pilz PNOZ X1 User Manual

PNOZ X1
Operating Manual PNOZ X1
19045-EN-10
| 8
Function Description
The safety relay PNOZ X1 provides a safety-oriented interruption of a safety circuit. When
the supply voltage is applied via the E-STOP pushbutton, the “POWER” LED is lit. The unit
is ready for operation when the start circuit Y1-Y2 is closed.
} Input circuit is closed (e.g. E-STOP pushbutton not operated):
– LEDs "CH1" and "CH2" will light.
– Safety contacts 13-14, 23-24 and 33-34 are closed, auxiliary contact 41-42 is open.
The unit is active.
} Input circuit is opened (e.g. E-STOP pushbutton operated):
– The LEDs "POWER", "CH1" and "CH2" go out.
– Safety contacts 13-14, 23-24 and 33-34 are opened redundantly, auxiliary contact
41-42 is closed.
Operating modes
} Single-channel operation: No redundancy in the input circuit, earth faults in the start and
input circuit are detected.
} Automatic start: Unit is active once the input circuit has been closed.
} Manual start: Unit is active once the input circuit and the start circuit are closed.
} Increase in the number of available contacts by connecting contact expandsion modules
or external contactors/relays.

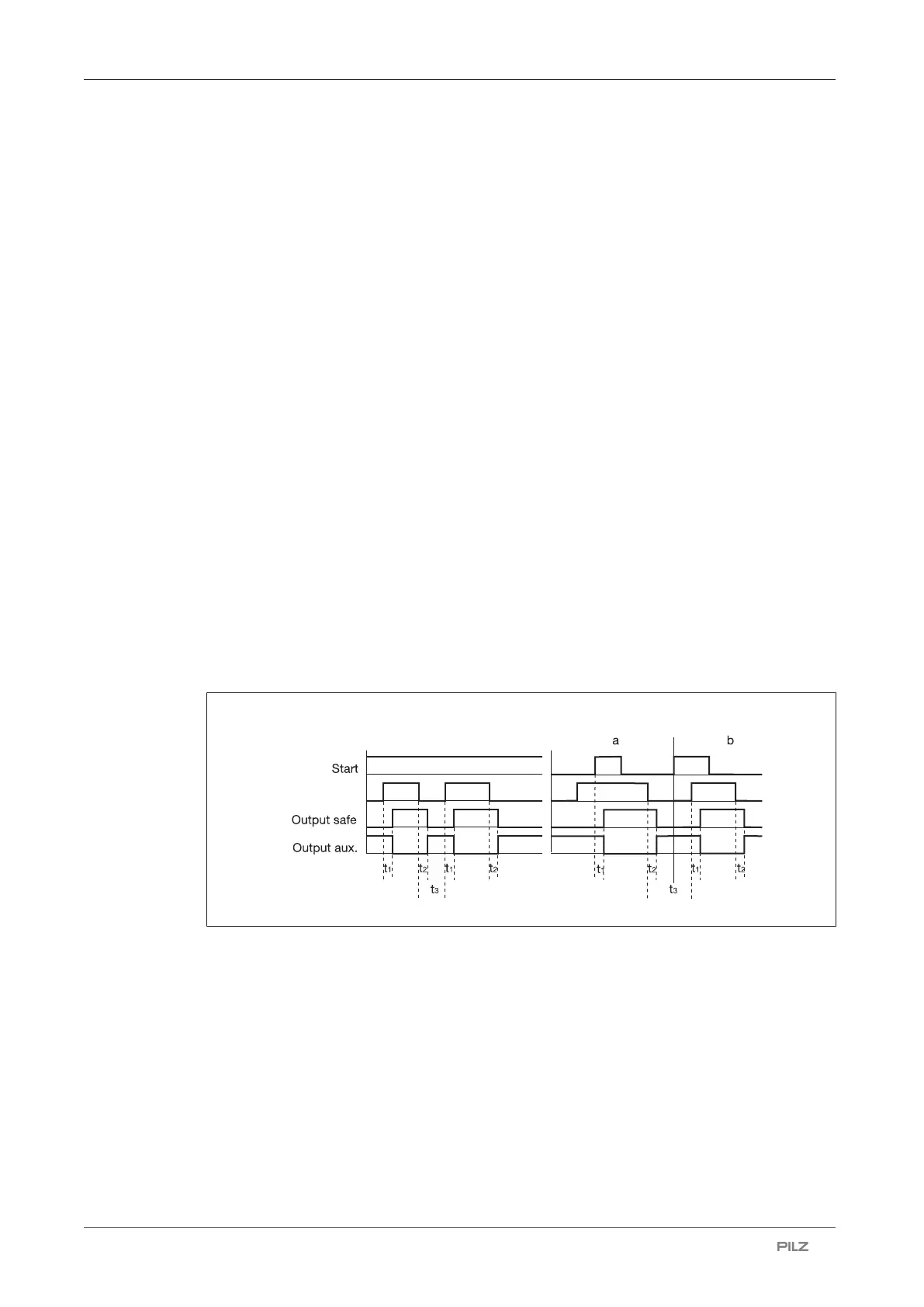

Timing diagram
[1] [2]
POWER/Input
Legend
} Power/Input: Supply voltage/input circuit
} Start: Start circuit
} Output safe: Safety contacts
} Output aux: Auxiliary contact
} [1]: Automatic start
} [2]: Manual start
} a: Input circuit closes before start circuit
} b: Start circuit closes before input circuit
} t
1
: Switch-on delay

Pilz PNOZ X1 Specifications

General

Type	Safety Relay
Supply Voltage	24 VDC
Auxiliary Contacts	1 N/C
Width	45 mm
Mounting	DIN Rail
Number of safety contacts	2
Stop Category	0
Height	87 mm
Depth	121 mm
Rated current	6 A
Protection class	IP20
Safety Contacts	2 N/O
Operating Temperature Range	-10°C to +55°C
Weight	200 g
