Unit features
} Positive-guided relay outputs:
– 3 safety contacts (N/O), instantaneous
– 1 auxiliary contact (N/C), instantaneous
} Connection options for:
– E-STOP pushbutton
– Safety gate limit switch
– Start button
} LED display for:
– Supply voltage
– Switch status of the safety contacts
Safety features
The safety relay meets the following safety requirements:
} The circuit is internally redundant with built-in self-monitoring.
} The safety device remains effective in the case of a component failure.
} The correct opening and closing of the safety device relays is tested automatically in
each on-off cycle.

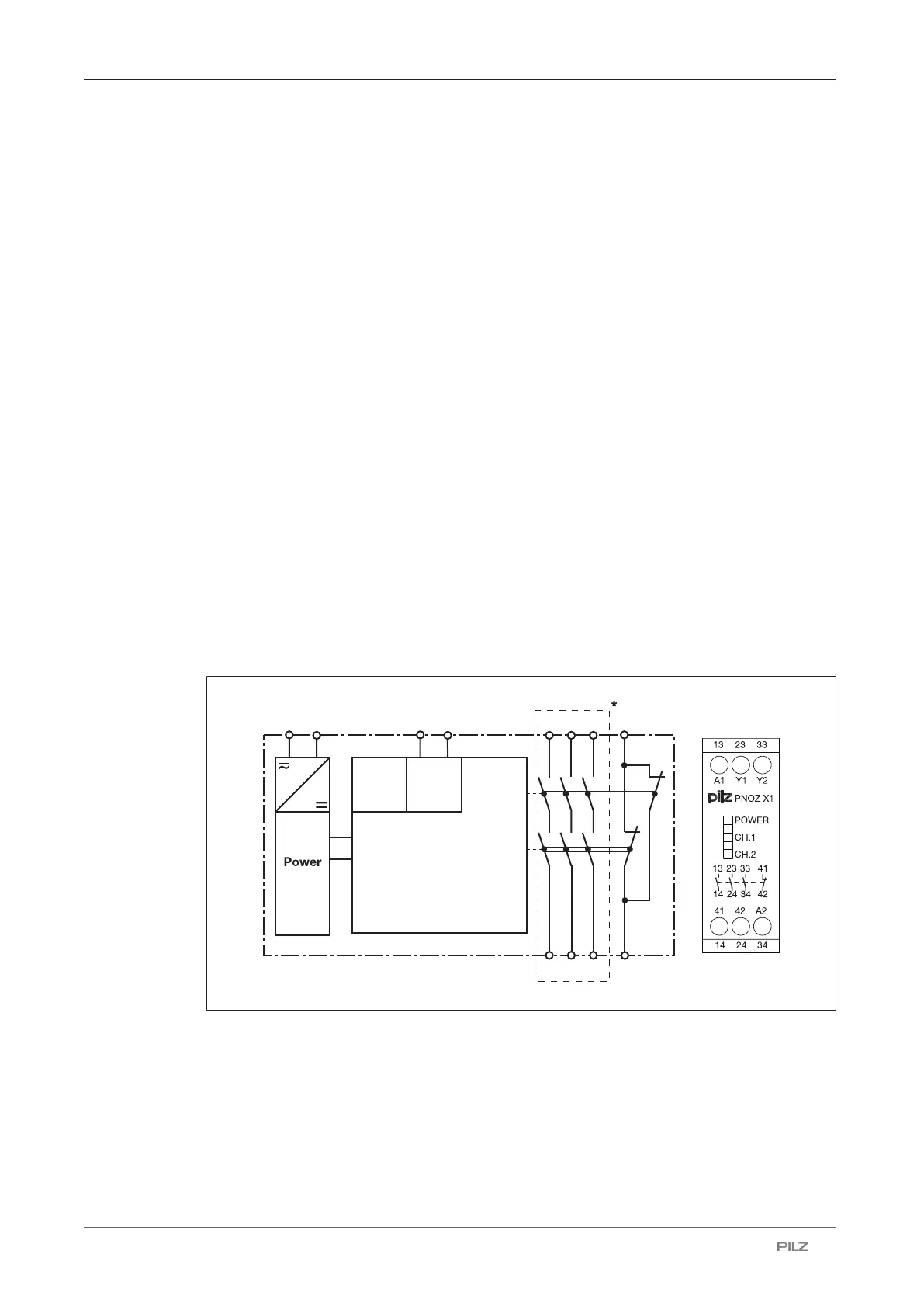

Block diagram/terminal configuration
A1 A2 Y1 Y2
23 3313
24 34
14
Input
K1
K2
42
41
Start
*Safe separation from non-marked area in accordance with EN 60947-1,
6 kV, basic insulation between all safety contacts.

Pilz PNOZ X1 Specifications

General

Type	Safety Relay
Supply Voltage	24 VDC
Auxiliary Contacts	1 N/C
Width	45 mm
Mounting	DIN Rail
Number of safety contacts	2
Stop Category	0
Height	87 mm
Depth	121 mm
Rated current	6 A
Protection class	IP20
Safety Contacts	2 N/O
Operating Temperature Range	-10°C to +55°C
Weight	200 g
