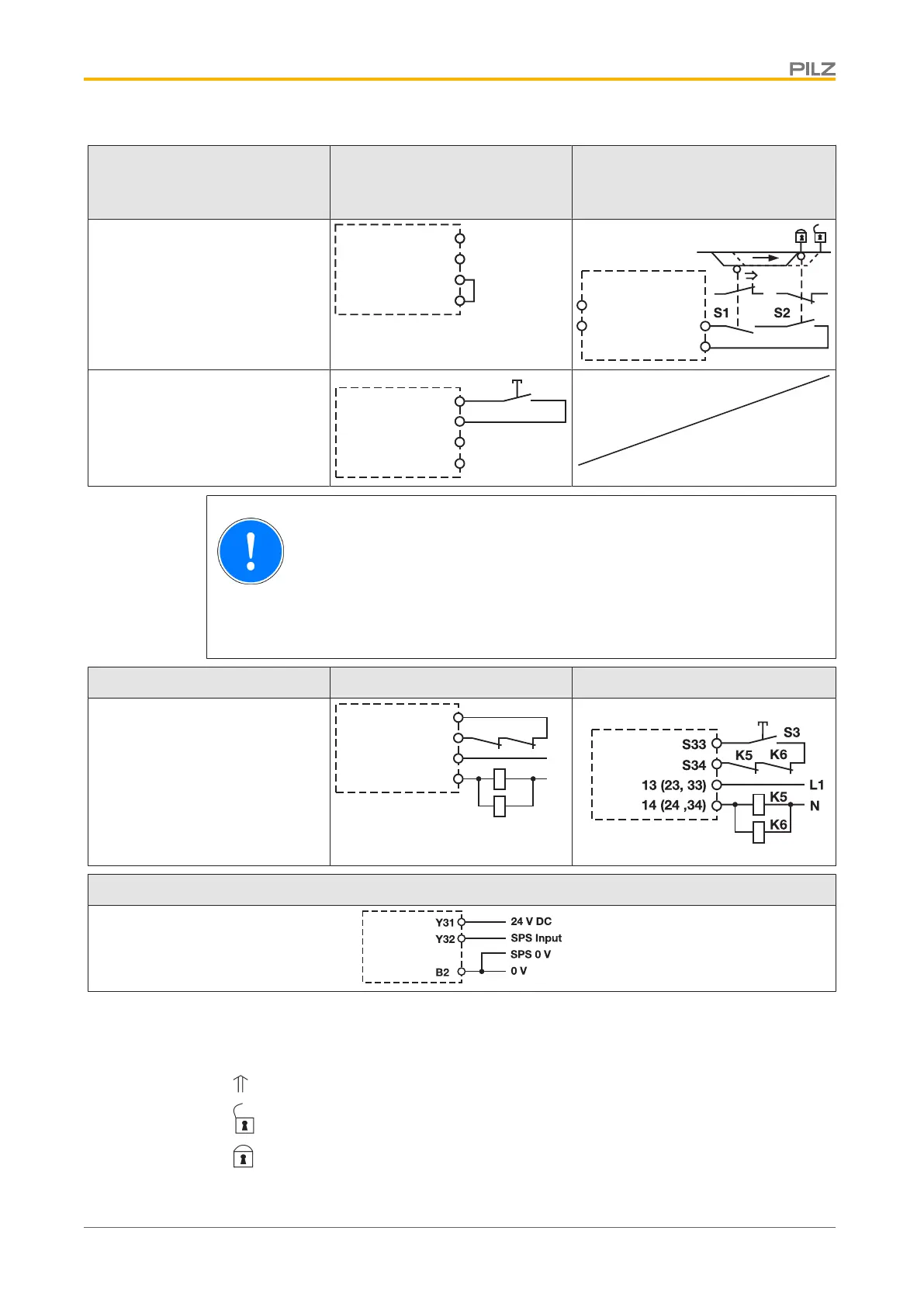

Start circuit
E-STOP wiring
Safety gate without start-up
test
Safety gate with start-up test
Automatic start
S33
S34
S13
S14
S33
S13
S34
S14
Monitored start
S33
S34
S3
S14
S13
NOTICE
In the event of an automatic start:
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
Feedback loop Automatic start Monitored start
Contacts from external contactors
K5
K6
K5
L1
N
K6
S13
13 (23, 33)
S14
14 (24, 34)
Semiconductor output
Legend
} S1/S2: E-STOP/safety gate switch
} S3: Reset button
} : Switch operated
} : Gate open
} : Gate closed

Pilz PNOZ X3 Specifications

General

Supply Voltage	24 V DC
Contacts	3 N/O, 1 N/C
Width	45 mm
Depth	121 mm
Safety Category	4
Performance Level	e
SILCL	3
Rated Current	6 A
Contact Material	AgSnO2
Protection Class	IP20
Weight	200 g
Stop Category	0
Operating Temperature Range	-10°C to 55°C
