Operating Manual PNOZ X3
20547-EN-10
15
Faults – Interference
} Earth fault: The supply voltage fails and the safety contacts open. Once the cause of
the respective fault has been rectified and the supply voltage is switched off for approx.
1minute, the unit is ready for operation again.
} Contact malfunctions: If the contacts have welded, reactivation will not be possible after
the input circuit has opened.
} LED "POWER" does not light: Short circuit or no supply voltage.

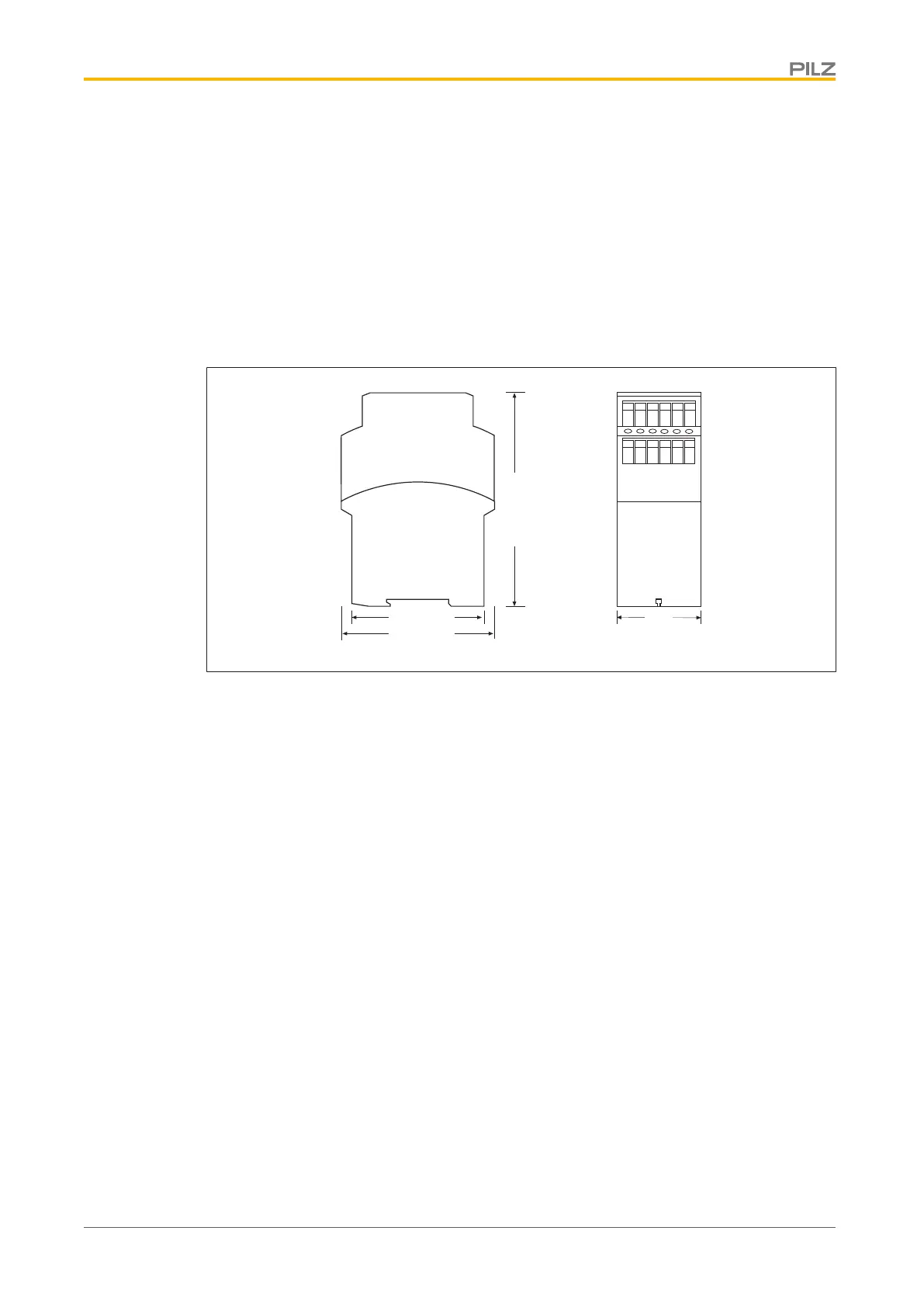

Dimensions in mm
121 (4.76")
75 (2.95")
87 (3.42")
45
(1.77")

Pilz PNOZ X3 Specifications

General

Supply Voltage	24 V DC
Contacts	3 N/O, 1 N/C
Width	45 mm
Depth	121 mm
Safety Category	4
Performance Level	e
SILCL	3
Rated Current	6 A
Contact Material	AgSnO2
Protection Class	IP20
Weight	200 g
Stop Category	0
Operating Temperature Range	-10°C to 55°C
