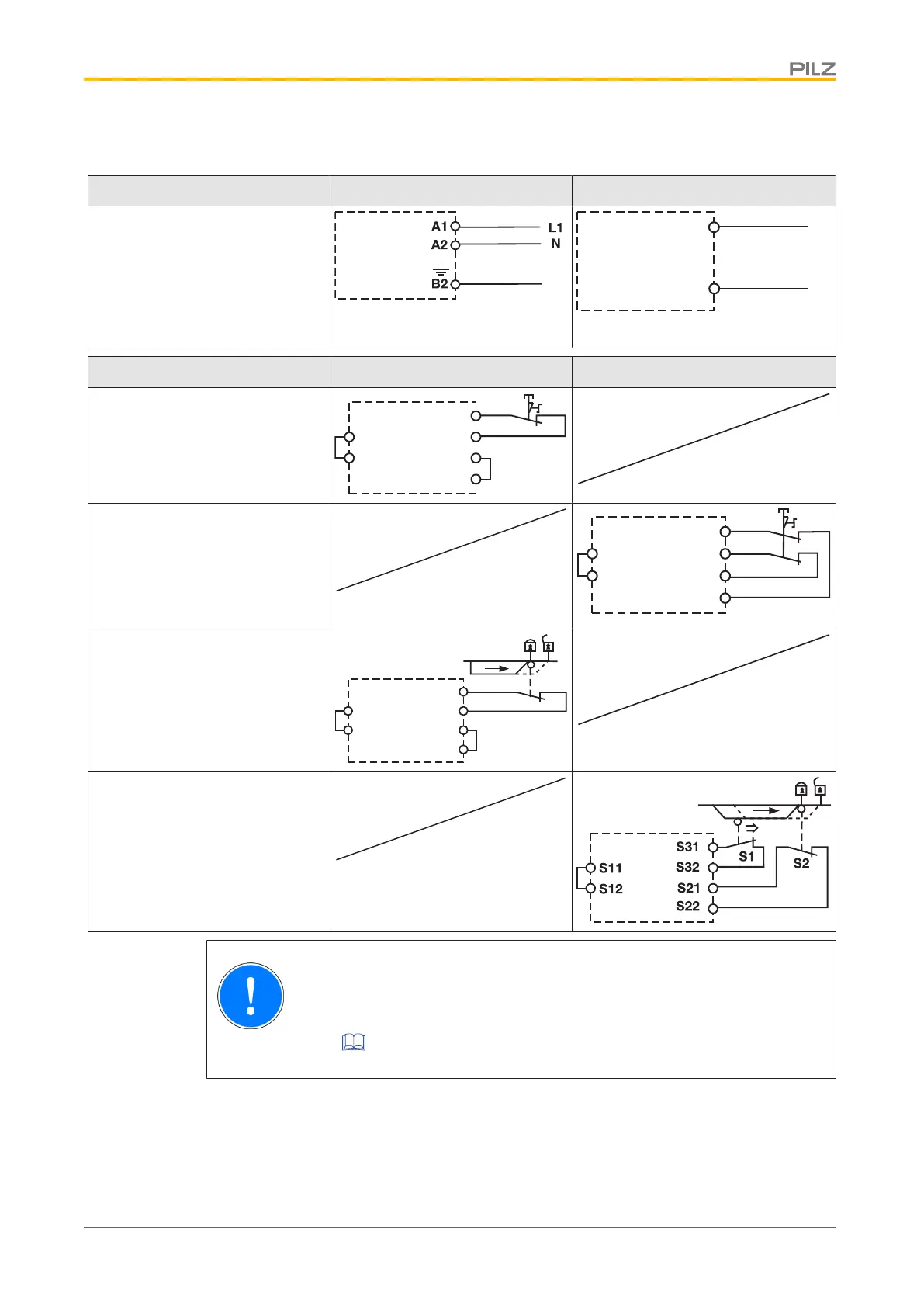

Preparing for operation
Supply voltage AC DC
FE
B1
B2
L+
L-
Input circuit Single-channel Dual-channel
E-STOP
without detection of shorts
across contacts
S1
S22
S21
S12
S32
S11
S31
E-STOP
with detection of shorts across
contacts
S1
S22
S31
S32
S21
S12
S11
Safety gate
without detection of shorts
across contacts
S1
S22
S21
S12
S32
S11
S31
Safety gate
with detection of shorts across
contacts
NOTICE
With single-channel wiring the safety level of your machine/plant may be
lower than the safety level of the unit (see
Safety characteristic
data [ 31]).

Pilz PNOZ X3 Specifications

General

Supply Voltage	24 V DC
Contacts	3 N/O, 1 N/C
Width	45 mm
Depth	121 mm
Safety Category	4
Performance Level	e
SILCL	3
Rated Current	6 A
Contact Material	AgSnO2
Protection Class	IP20
Weight	200 g
Stop Category	0
Operating Temperature Range	-10°C to 55°C
