Remove plug-in terminals

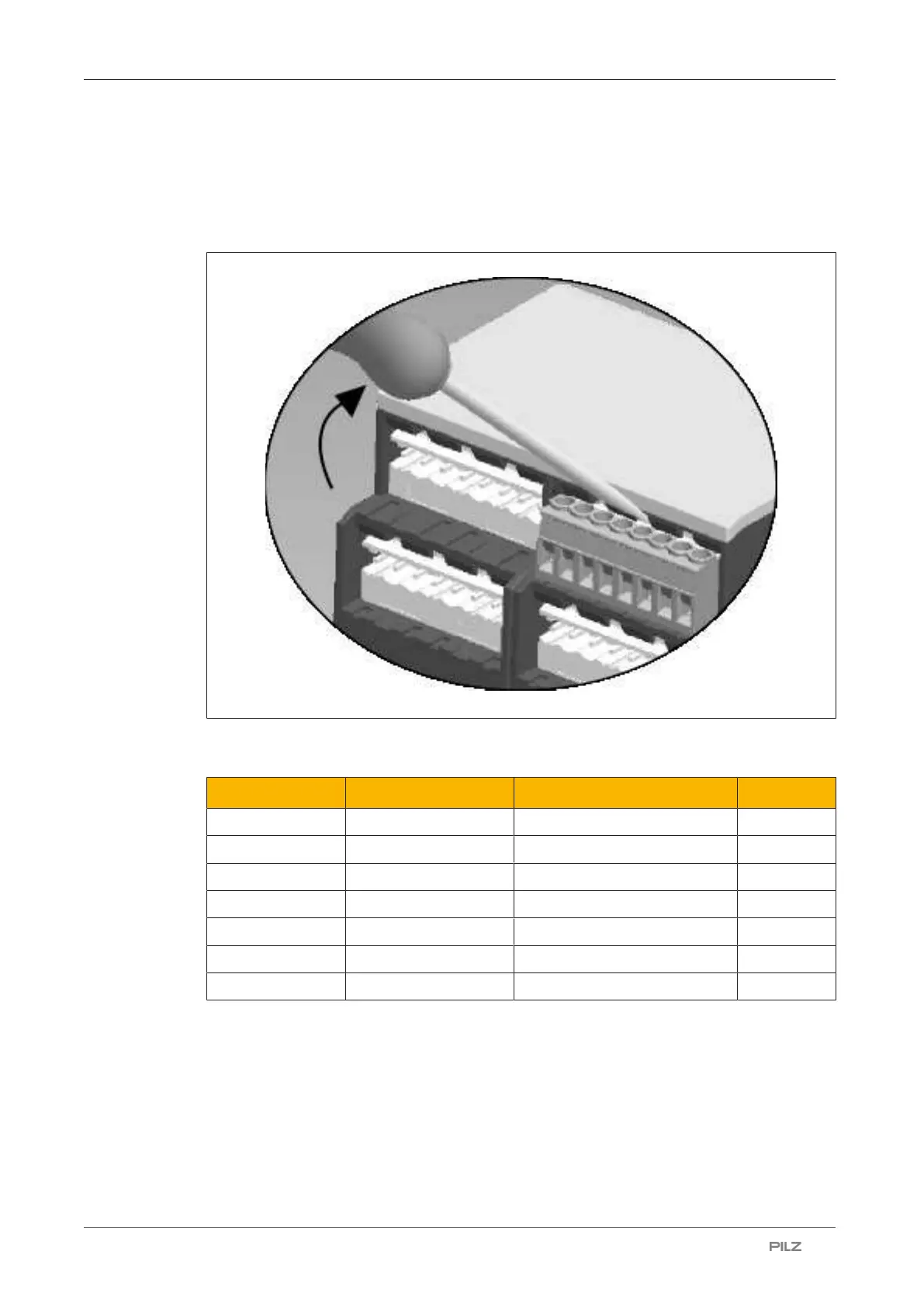

Procedure: Insert the screwdriver into the housing recess behind the terminal and lever the
terminal out.
Do not remove the terminals by pulling the cables!
Order reference
Product type Features Connection type Order no.
PNOZ X8P C 24 V AC Spring-loaded terminals 787770
PNOZ X8P 110 VAC Screw terminals 777764
PNOZ X8P C 110 VAC Spring-loaded terminals 787764
PNOZ X8P 230 VAC Screw terminals 777768
PNOZ X8P C 230 VAC Spring-loaded terminals 787768
PNOZ X8P 24 V DC Screw terminals 777760
PNOZ X8P C 24 V DC Spring-loaded terminals 787760
EC declaration of conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma-
chinery of the European Parliament and of the Council. The complete EC Declaration of
Conformity is available on the Internet at www.pilz.com/support/downloads.
Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost-
fildern, Germany
