Pilz PNOZ X8P User Manual

PNOZ X8P
Operating Manual PNOZ X8P
19820-EN-10
| 9

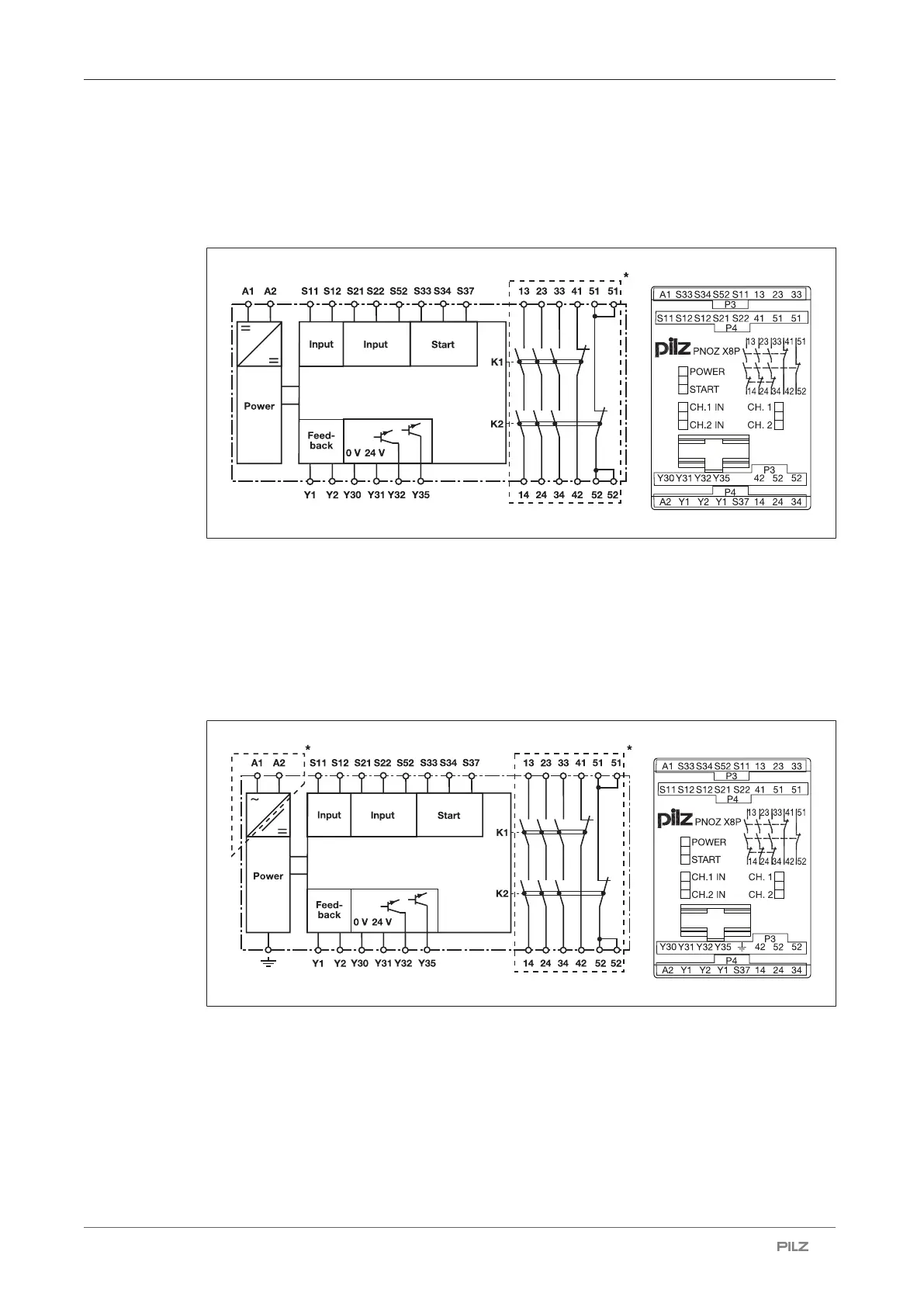

Block diagram/terminal configuration
Types: DC
} U
B
: 24 VDC; Order no. 777760, 787760
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
Types: AC
} U
B
: 24 VAC; Order no. 787770
} U
B
: 110 VAC; Order no. 777764, 787764
} U
B
: 230 VAC; Order no. 777768, 787768
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
