Pilz PNOZ XV3.1P - Start Circuit and Test Procedures

PNOZ XV3.1P
Operating Manual PNOZ XV3.1P
20516-EN-09
| 14

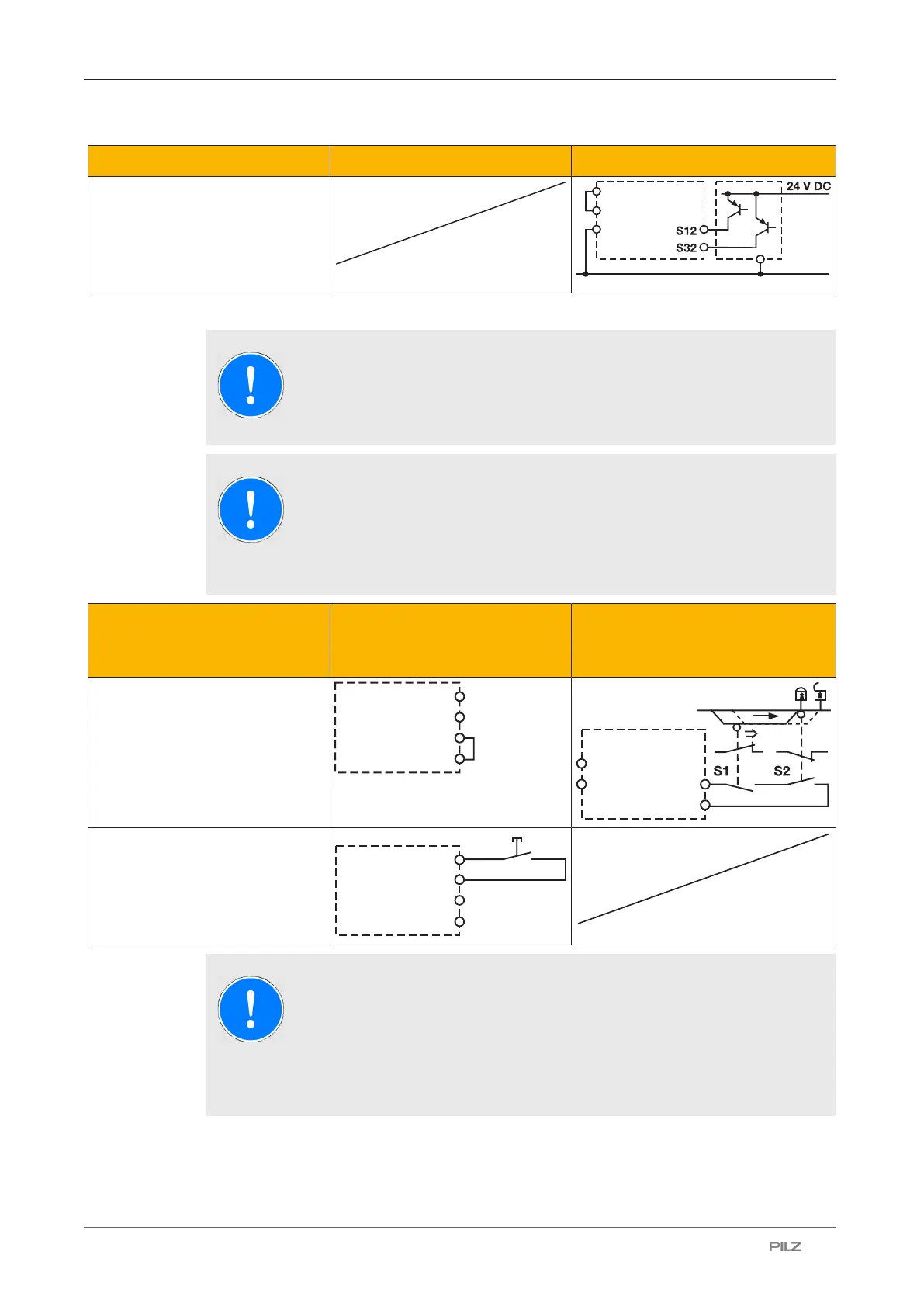

Input circuit Single-channel Dual-channel
Light guard or safety switch, de-
tection of shorts across contacts
via ESPE
(only when U
B
= 24 VDC); Order
no. 7777520, 787520, 777522,
787522, 777525)
A2
GND
S21
S22
NOTICE
With single-channel wiring the safety level of your machine/plant may be
lower than the safety level of the unit (see Safety characteristic data).
NOTICE
Operation with a light guard or safety switch
It must not be possible to switch off the supply voltage for the PNOZ
XV3.1P separately from the supply voltage for the light grid or safety switch.
Start circuit E-STOP wiring
Safety gate without start-up
test
Safety gate with start-up test
Automatic start
S33
S34
S13
S14
S33
S13
S34
S14
Monitored start
S33
S34
S3
S14
S13
NOTICE
In the event of an automatic start:
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
