Pilz PNOZ XV3.1P User Manual

PNOZ XV3.1P
Operating Manual PNOZ XV3.1P
20516-EN-09
| 9

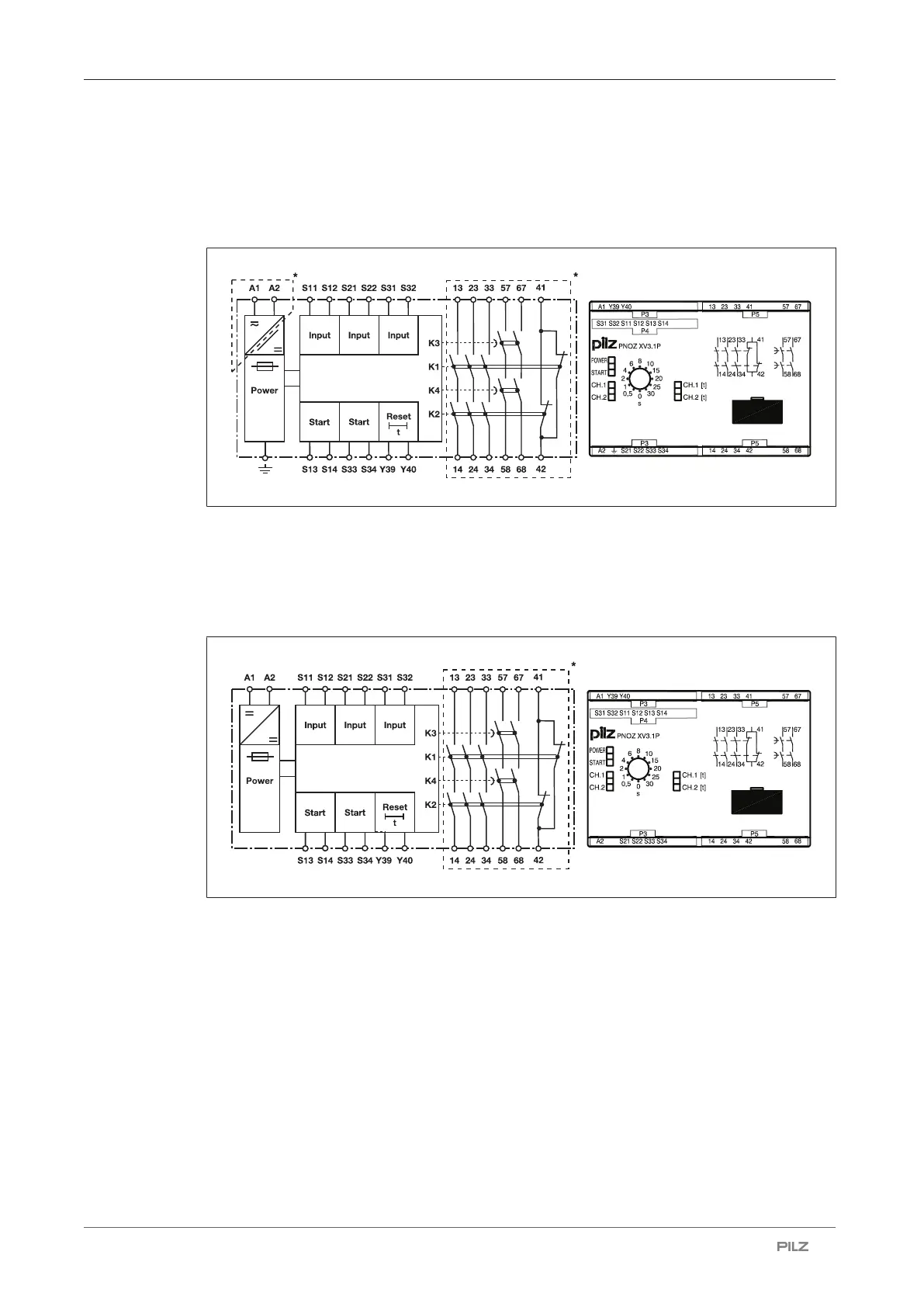

Block diagram/terminal configuration
Types: AC/DC
} U
B
: 24 - 240 VAC/DC; Order no. 777530, 787530, 777532, 787532, 777538, 787538
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
Types: DC
} U
B
: 24 VDC; Order no. 777520, 787520, 777522, 787522, 777525
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)

Pilz PNOZ XV3.1P Specifications

General

Brand	Pilz
Model	PNOZ XV3.1P
Category	Relays
Language	English
