PNOZ XV3.1P
Operating Manual PNOZ XV3.1P
20516-EN-09
| 45

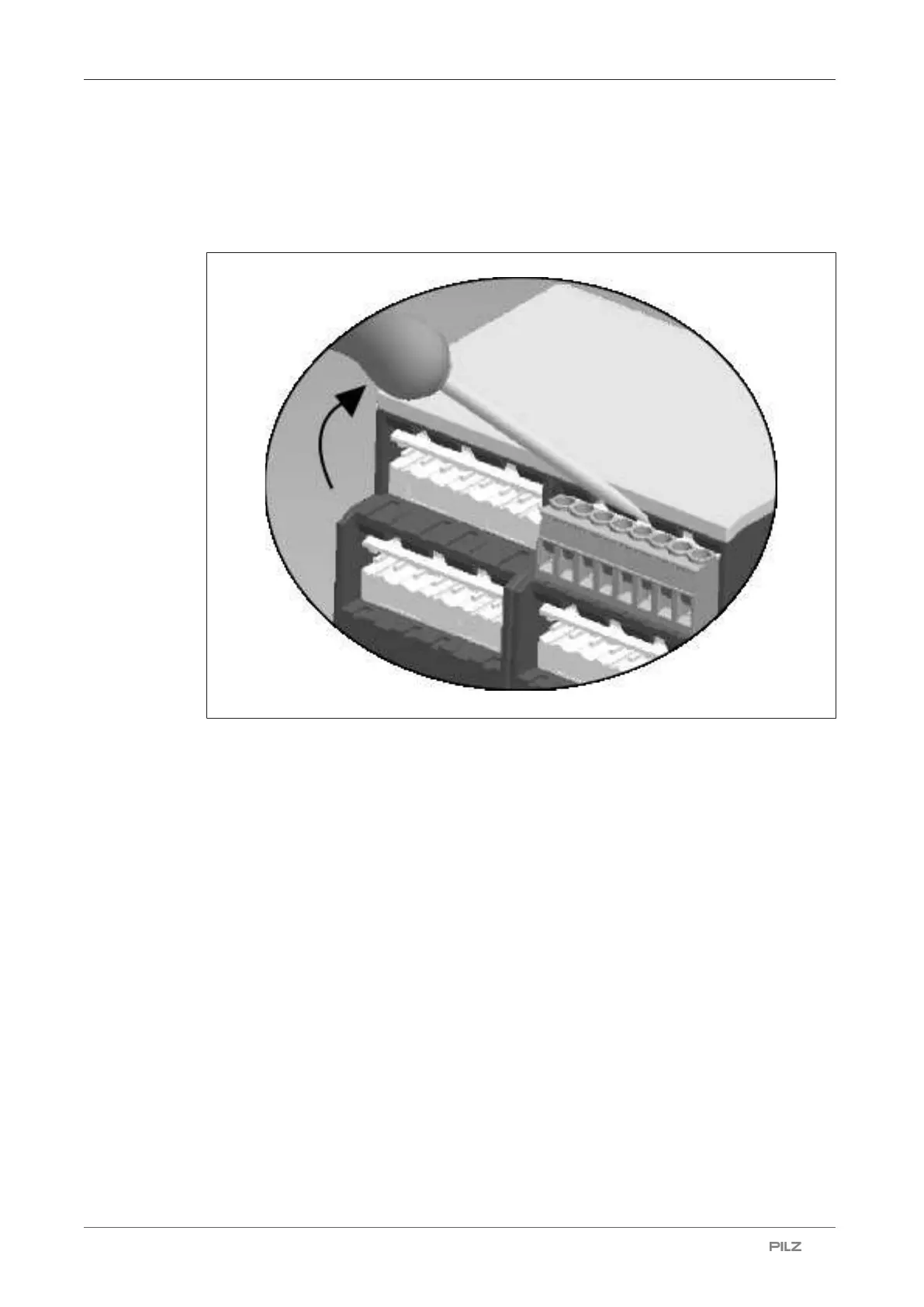

Remove plug-in terminals
Procedure: Insert the screwdriver into the housing recess behind the terminal and lever the
terminal out.
Do not remove the terminals by pulling the cables!
