Pilz PNOZmulti User Manual

Connecting the Control System PNOZmulti
Installation Manual PNOZmulti Installation Manual
1002265-EN-02
34

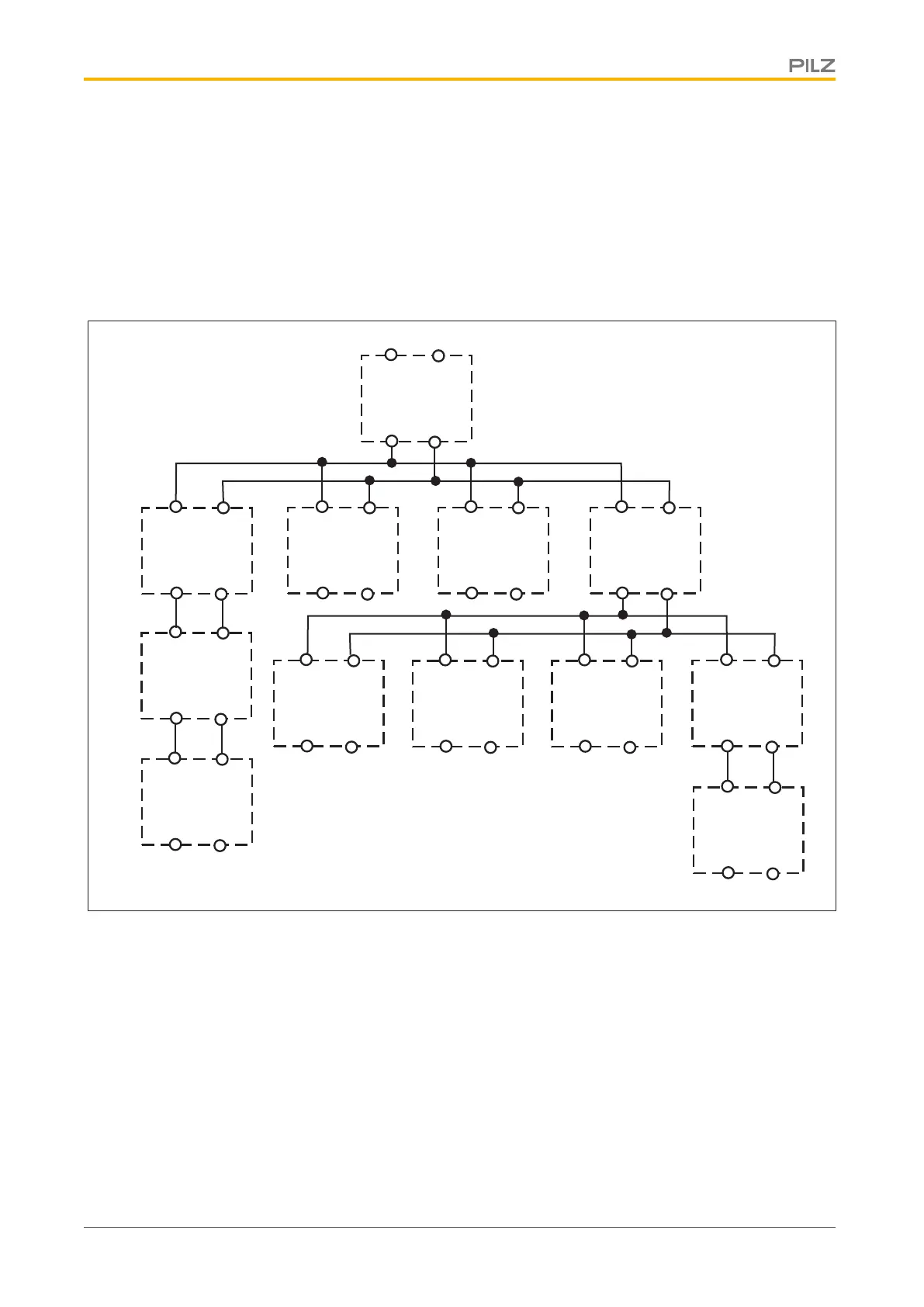

5.13.3 Tree structure
} Tree structures may be designed with as many levels as necessary.
Conditions:
} A max. of 4 PNOZmulti units may be incorporated in parallel on each level.
} PNOZelog units may only be connected to the PNOZmulti units in series. Max. of one
PNOZelog unit is permitted on each level.
CI+
CI-
CO+ CO-
PNOZ m1p
S36 (S35)
A2
14 (24) A2
PNOZelog
CI+
CI-
CO+ A2
PNOZ m1p
CI+
CI-
CO+ CO-
PNOZ m1p
CI+
CI-
CO+ CO-
PNOZ m1p
CI+
CI-
CO+ CO-
PNOZ m1p
CI+
CI-
CO+ CO-
PNOZ m1p
CI+
CI-
CO+ CO-
PNOZ m1p
CI+
CI-
CO+ CO-
PNOZ m1p
CI+
CI-
CO+ CO-
PNOZ m1p
CI+
CI-
CO+ CO-
PNOZ m1p
S36 (S35)
A2
14 (24) A2
PNOZelog

Pilz PNOZmulti Specifications

General

PL	PL e
Expansion Modules	Yes, via base units and extension modules
Programming	PNOZmulti Configurator (graphical configuration software)
Safety standards	EN ISO 13849-1, EN 62061, IEC 61508
SIL	SIL 3
Operating voltage	24V DC (typically, but can vary depending on the specific module)
Safety category	Category 4
