Pima FORCE Installation Guide

Chap. 2: Installation & Wiring
13
2.9.2 Local 8-zone expansion card, ZEL508
The ZEL508 allows adding eight zone inputs to the FORCE security system, locally. The card is
installed on the control panel’s rack, and interfaces with the BUS using the technician’s fast
connector on the control panel (see below), using a special cable (supplied).
Main features
 Eight zone inputs. The zones are automatically numbered 9-16
 Interfaces with the BUS
 Two indicative LEDs: communication and status (see details below)
 Two parallel connectors: one for the control panel cable and one for the technician keypad
 Sizes: 8.2 X 7.5cm
 Technical specs: 10-15V, 30mA in idle state, Fuse: 0.9A

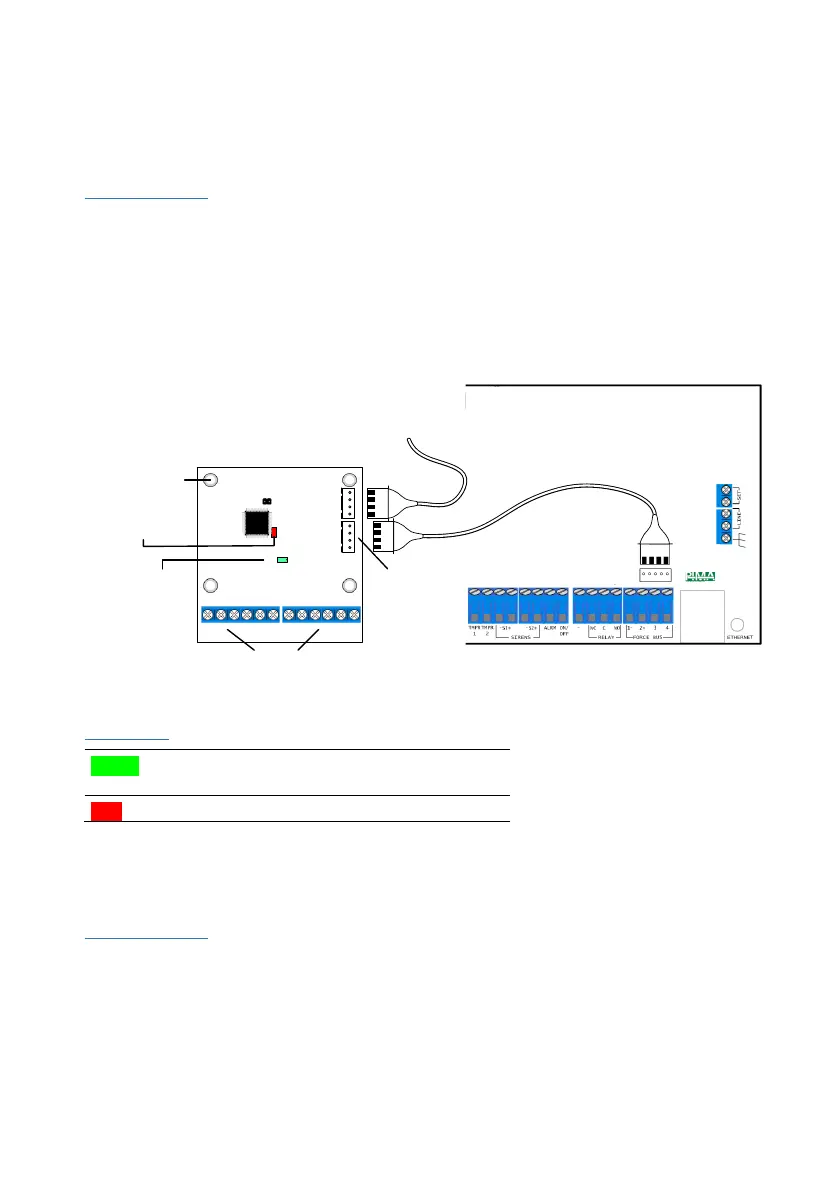

Figure 11. ZEL508 connection diagram
The LEDs
Green
Flashes once
every one second
Card status OK
Red
Flashes
Communication in progress
2.9.3 Remote 8-zone expansion card, ZEX508
The ZEX508 allows adding 8 zone inputs to the FORCE security system, remotely. The card
interfaces with the BUS.
Main features
 8 zone inputs, one relay output.
 Interfaces with the BUS
 External tamper switch input
 Tamper bypass jumper
 Technician keypad fast connector
 PS-2 power supply socket
 ID number DIP switch
1
Z O N E S
RUN
BUS
2 3 4 5- - 6 7 8 + +
ForceBus
BOOT
Control Panel
To Technician
keypad
ZEL508
Zone
Terminals
BUS LED
RUN LED
Parallel
Connectors
Mounting Hole
