10
En
English
Installation and Connections
Installation and Connections
Installation of the Unit

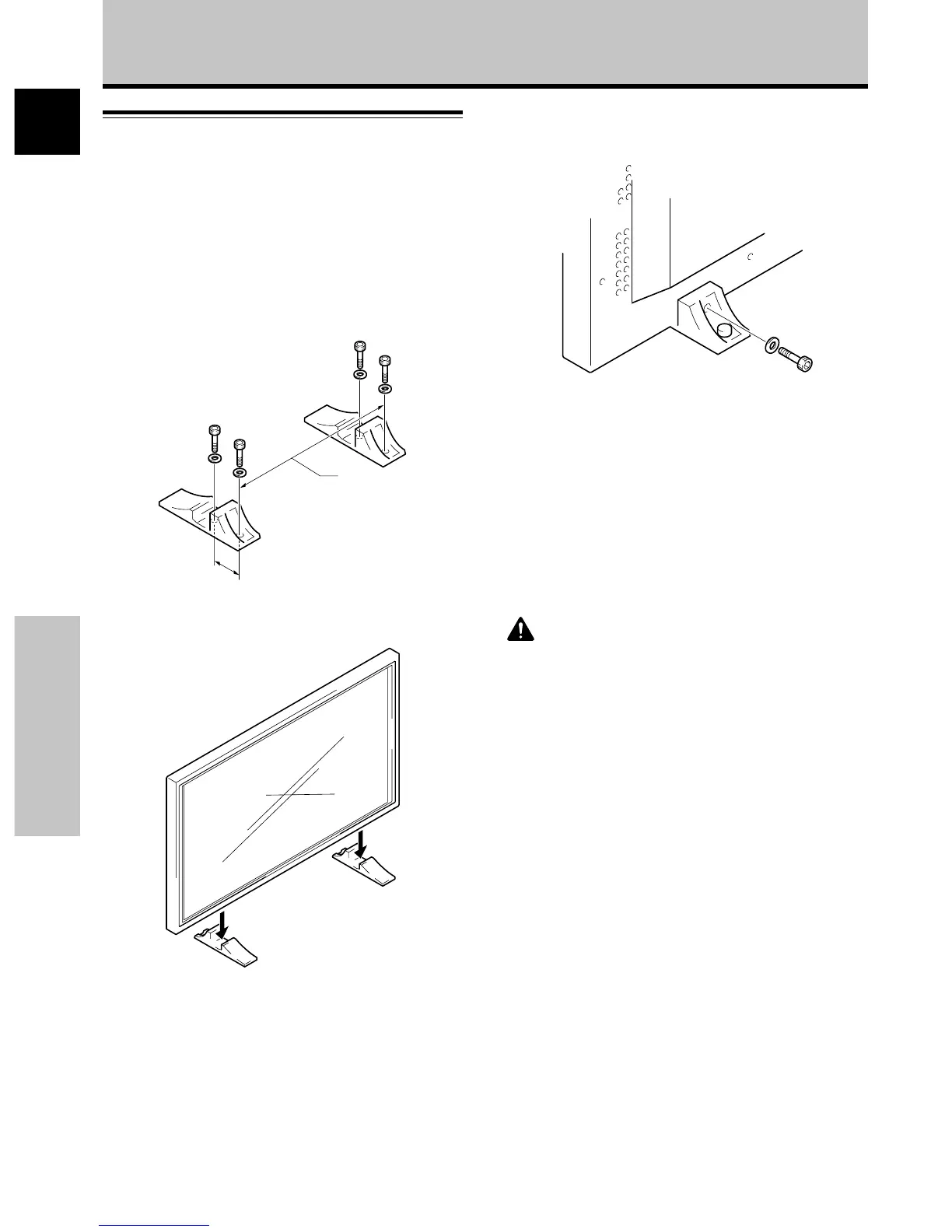

Installation using the supplied display stand
Be sure to fix the supplied stand to the installation
surface.
Use commercially available M8 bolts that are 25 mm
longer than the thickness of the installation surface.
1 Fix the supplied stand to the installation surface at
each of the 4 prepared holes using commercially
available M8 bolts .
2 Set this unit in the stand.
Front
Rear
PDP-503MXE: 798 mm
PDP-433MXE: 768 mm
110 mm
Use a 6 mm hex wrench
to bolt them.
CAUTION
This display unit weighs at least 30 kg and has little front-to-back
depth, making it very unstable when stood on edge. As a result,
two or more persons should cooperate when unpacking, moving,
or installing the display.
3 Fix this unit using the supplied washer and bolt.
To Next Page
