7. GENERAL INFORMATION
7.1 DIAGNOSIS

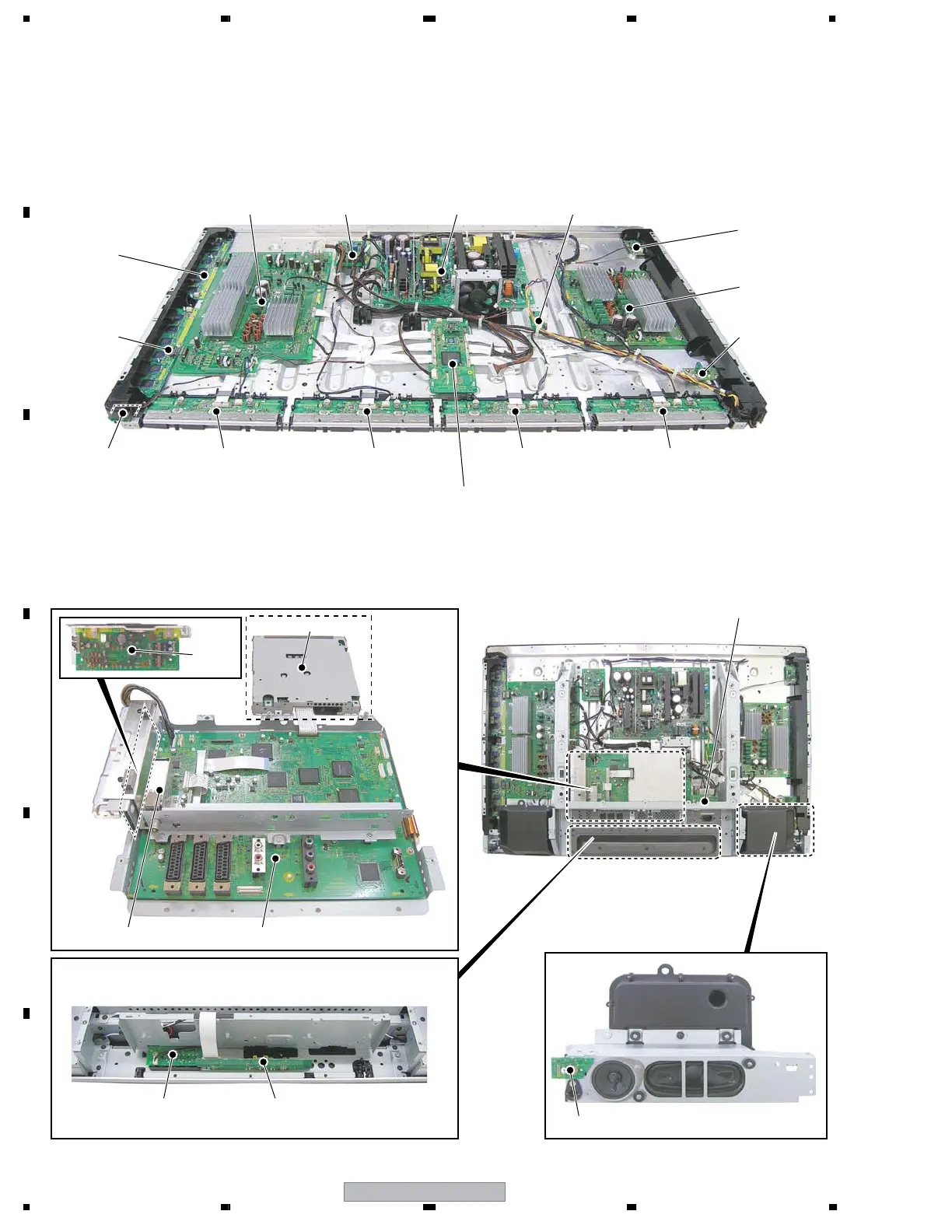

7.1.1 PCB LOCATION
43 SCAN B
Assy
43 SCAN A
Assy
43 Y DRIVE
Assy
SUB POWER
Assy
PANEL SENSOR
Assy
POWER SUPPLY
Unit
SUS CLAMP 1
Assy
43 X DRIVE
Assy
SUS CLAMP 2
Assy
43 ADDRESS
Assy
KEY Assy
OBE MAIN AssyTUNER Assy
AUDIO
Assy
FRONT Assy
LED Assy
R06 D-TUNER Assy
SR Assy
IR Assy 43 ADDRESS
Assy
PDP-436SXE
only
43 ADDRESS
Assy
OB DIGITAL
Assy
43 ADDRESS
Assy
