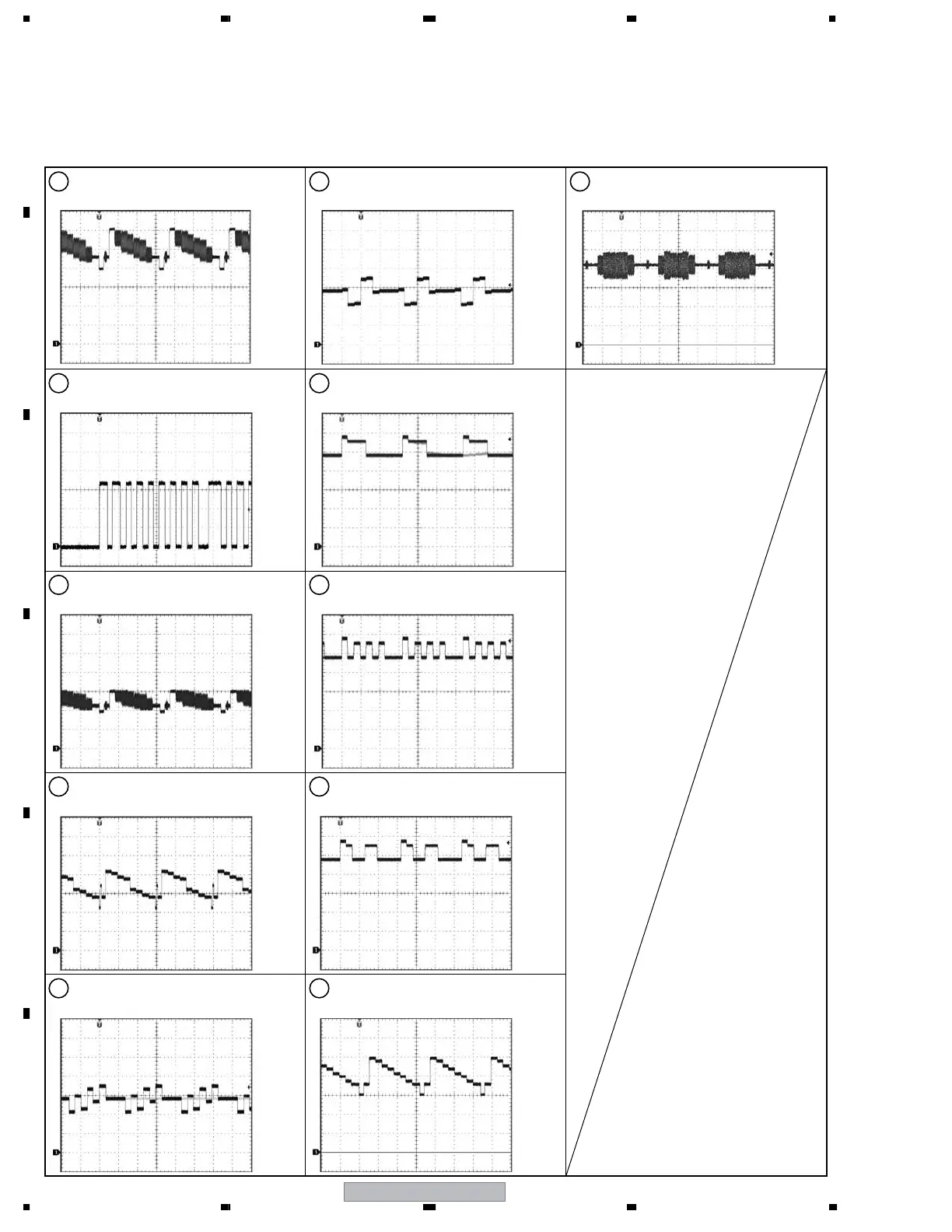

3.12 WAVEFORMS
Note : The encircled numbers denote measuring point in the schematic diagram.
Refer to service manual (ARP3334).
1
TP4401 (A_TUNER_V)
(A_TUNER_V)
V : 500mV/div H : 20µsec/div
OBE MAIN ASSY
2
TP4412 (AIR_HS)
(AIR_HS)
V : 1V/div H : 20µsec/div
3
IC4804-pin 57
(A_TUNER_V)
V : 1V/div H : 20µsec/div
4
TP4815 (Component Y)
(GY_AD)
V : 500mV/div H : 10µsec/div
5
TP4816 (Component Cb)
(BCB_AD)
V : 500mV/div H : 10µsec/div
6
TP4817 (Component Cr)
(RCR_AD)
V : 500mV/div H : 10µsec/div
7
TP4818 (SCART G)
(GY_MVDEC)
V : 500mV/div H : 20µsec/div
8
TP4819 (SCART B)
(BCB_MVDEC)
V : 500mV/div H : 20µsec/div
9
TP4820 (SCART R)
(RCR_MVDEC)
V : 500mV/div H : 20µsec/div
10
IC4804-pin 49 (MAIN_Y)
(MAIN_Y)
V : 500mV/div H : 20µsec/div
11
IC4804-pin 47 (MAIN_C)
(MAIN_C)
V : 500mV/div H : 20µsec/div
