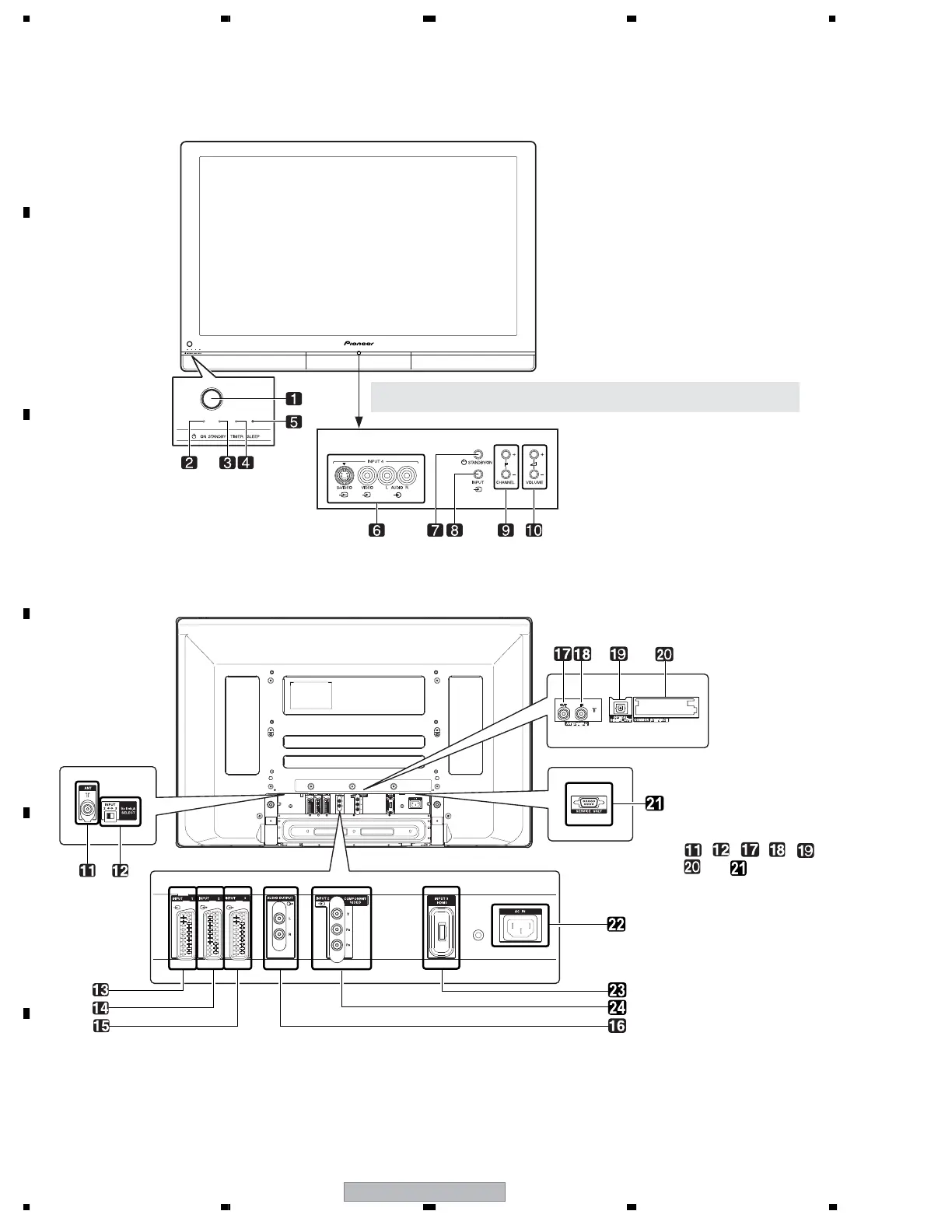

8. PANEL FACILITIES
Plasma Display
11
ANT (Antenna) input terminal
12
i/o link.A SELECT switch
13
INPUT 1 terminal (SCART)
14
INPUT 2 terminal (SCART)
15
INPUT 3 terminal (SCART)
16
AUDIO OUTPUT terminals (L - R)
17
ANT OUT terminal (Antenna through out)
18
ANT IN terminal (Antenna in for DTV)
• Power can be supplied through this terminal.
19
DIGITAL OUT terminal (OPTICAL)
20
COMMON INTERFACE slot
• For a CA Module with a smart card
21
RS232C terminal (used for factory setup)
22
AC IN terminal
23
HDMI terminal (INPUT 3)
24
INPUT 2 terminals (COMPONENT VIDEO:Y, P
B
, P
R
)
Front view
1 POWER
button
2
POWER ON indicator
3
STANDBY indicator
4
TIMER(SXE) /PIC OFF(RXE) indicator
5
SLEEP indicator
6
INPUT 4 terminals
7 STANDBY/ON
button
8INPUT
button
9 CHANNEL +/–
buttons
10 VOLUME +/–
buttons
Press this section (PUSH-OPEN) gently to open the door.
Rear view
*
**
*, , , , ,
and are located in
the top wall of the
compartment.
** * *
(SXE Model only)
