PDP-436SXE

1234

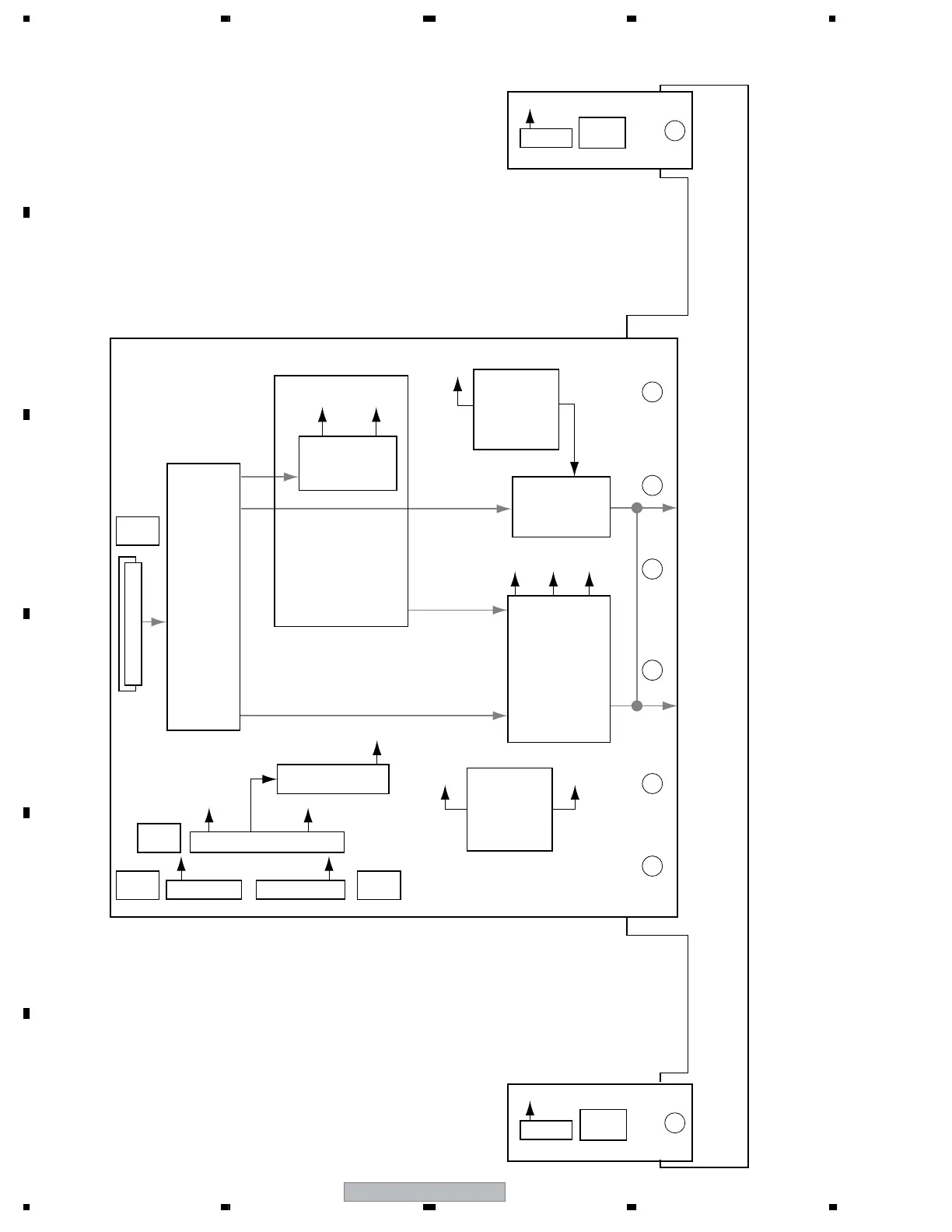

3.8 43 X DRIVE, SUS CLAMP 1 and SUS CLAMP 2 ASSYS

43 X DRIVE ASSY

SUS CLAMP 1

ASSY

+16.5V

+16.5V VF

+16.5V

VRN

+5V

+6.5V

VSUS

CL1

SUS CLAMP 2

ASSY

VSUS

CL2

Logic

Block

Regulator

15V

DC/DC

Conv.

IC1101

DK Mod.

Resonance

Block

IC1202

Mask

Mod.

VRN

DC/DC

Conv.

– Reset

Block

X4 X3

VSUS

SUS OUT

PSUS

Drive Signal

Table of Contents6
Specifications7
Exploded Views and Parts List10
Packing Section10
Rear Section12
Front Section14
Chassis Section (1/2)16
Chassis Section (2/2)18
Av Block Section20
Pdp Service Assy 436P (Awu1135)22
Block Diagram and Schematic Diagram24
Overall Connection Diagram (1/2)24
Overall Connection Diagram (2/2)26
Signal Block Diagram28
R06 D-Tuner Assy30
Ob Digital Assy31
Address Assy32
SCAN a and B ASSYS33
DRIVE, SUS CLAMP 1 and SUS CLAMP 2 ASSYS34
Drive Assy35
Power Supply Unit36
Voltages37
Waveforms42
Pcb Parts List46
Adjustment61
Adjustment Required When the Set Is Repaired or Replaced61
Using Rs-232C Commands62
Service Factory Mode63
List of Rs-232C Commands84
Outline of Commands89
Method for Replacing the Service Panel Assy100
General Information104
Diagnosis104
Pcb Location104
Diagnosis of Shutdown/Power-Down Indicated by Leds105
Diagnosis of Pd (Power-Down)108
Power On/Off Function for the Large-Signal System110
Backup When the Panel Unit Is Adjusted111
How to Clear History Data113
Troubleshooting115
Disassembly124
Description135
Specification about the Thermal Protection135
Processing in Abnormality136
Power on Sequence137
Panel Facilities168
