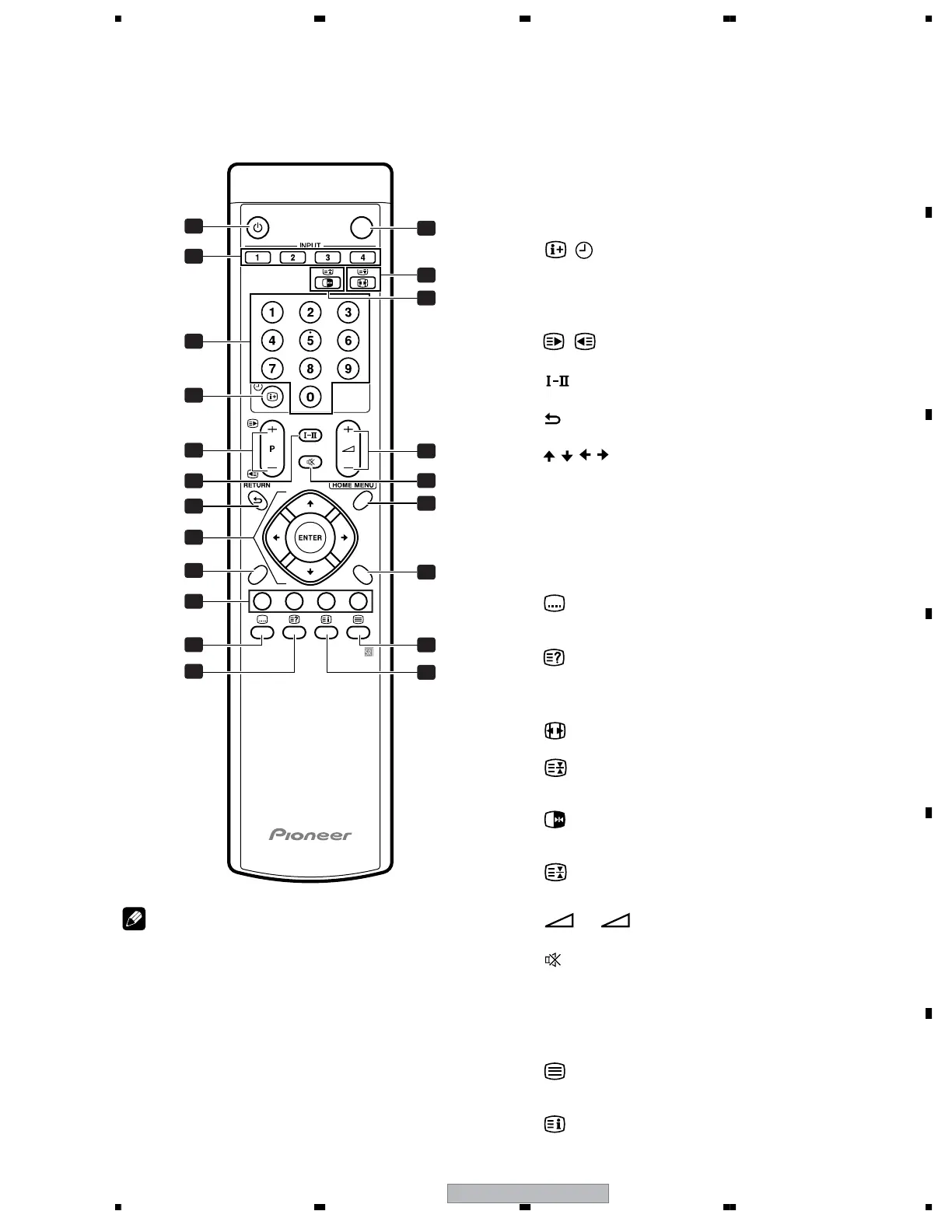

Remote control unit
NOTE
• When using the remote control unit, point it at the Plasma
Display.
1 
Turns on the power to the Plasma Display or places it into
the standby mode.
2 INPUT
Selects an input source of the Plasma Display. (INPUT 1,
INPUT 2, INPUT 3, INPUT 4)
30 – 9
TV/External input mode: Selects a channel.
TELETEXT mode: Selects a page.
4
TV/External input mode: Displays the channel information.
DTV input mode: Displays the banner information.
5P +/P –
TV/External input mode: Selects a channel.
TELETEXT mode: Selects a page.
6
Sets the sound multiplex mode.
7 RETURN
Restores the previous menu screen.
8 ///
Selects a desired itemon the setting screen.
ENTER
Executes a command.
9 EXIT (SXE only)
Returns to the normal screen in one step.
10 Colour (RED/GREEN/YELLOW/BLUE)
TELETEXT mode: Selects a page.
11
TV/External input mode: Jumps to the Teletext subtitle page.
DTV input mode: Turns subtitle on and off.
12
Displays hidden characters.
13 TV/DTV (SXE only)
Switches between the TV and DTV input modes.
14
TV/External input mode: Selects the screen size.
TELETEXT mode: Switches Teletext images. (full/upper
half/lower half)
15
TV/External input mode: Freezes a frame from a moving
image. Press again to cancel the function.
TELETEXT mode: Stops updating Teletext pages. Press
again to release the hold mode.
16
Sets the volume.
17
Mutes the sound.
18 HOM E MEN U
TV/External Input mode: Displays the Menu screen.
19 EPG (SXE only)
Displays the Electronic Programme Guide.
20
Selects the TELETEXT mode.
(all TV image, all TEXT image, TV/TEXT image)
21
TELETEXT mode: Displays an Index page for the CEEFAX/FLOF
format. Displays a TOP Over View page for the TOP format.
1
2
3
4
6
7
8
9
10
11
12
14
13
15
16
17
18
19
20
21
5
EXIT
TV/DTV
EPG
/
+/ –
