Pioneer PDP-436SXE Service Manual

PDP-436SXE
134
1234
1234
C
D
F
A
B
E

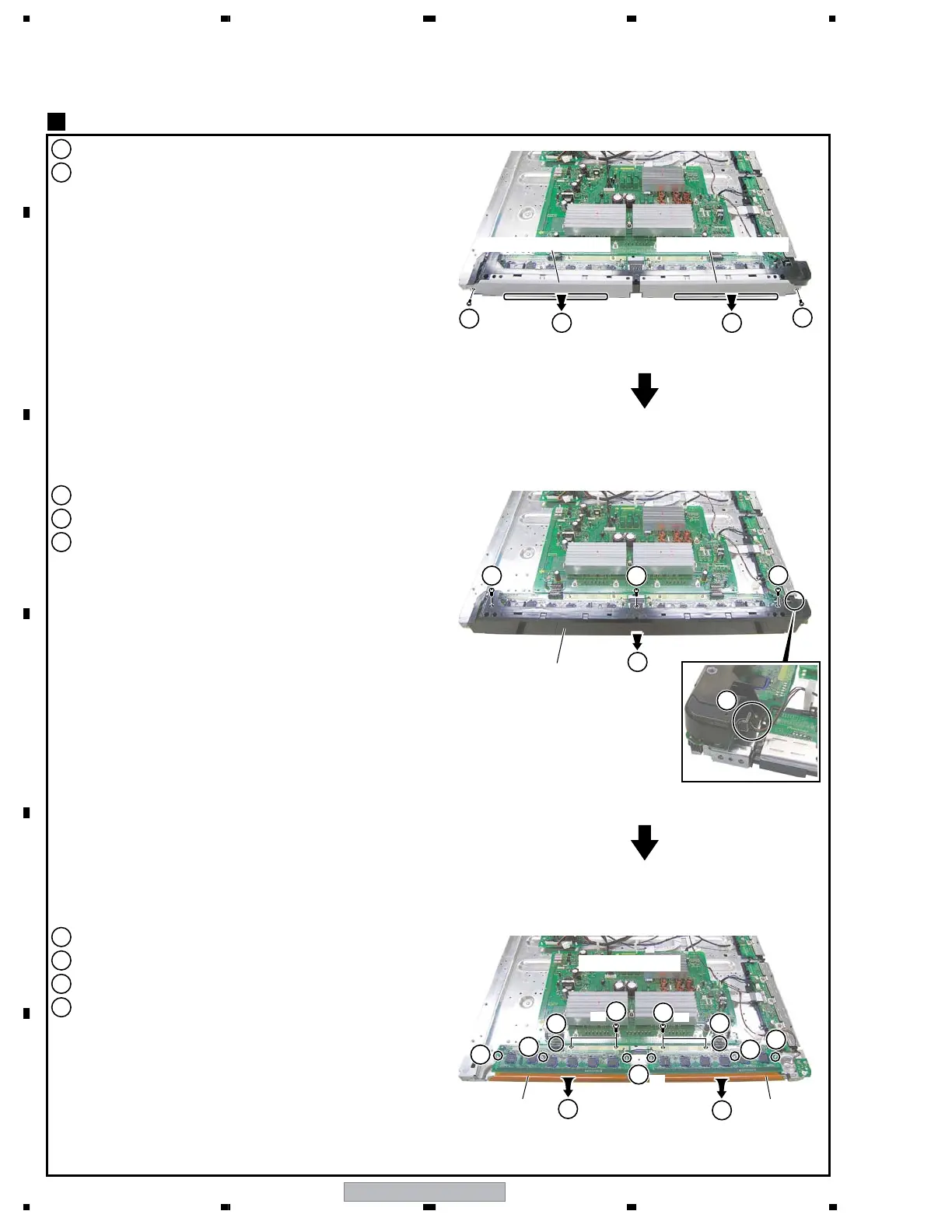

43 SCAN A and B Assys
11
1
2 2
3
1
5
4
4
4
43 Y DRIVE Assy
43 SCAN B
Assy
43 SCAN A
Assy
7
7
8
8
8
8
×2
×2
×2
6
6
9
9
8
1
Remove the two screws.
2
Remove the panel holder V1 (43) and V2 (43)s.
(Unhook the six hooks.)
3
Release the housing wire.
4
Remove the three screws.
5
Remove the front chassis VL (436SX).
6
Remove the four screws.
7
Disconnect the two pin connectors.
8
Unhook the six PCB spacers.
9
Remove the 43 SCAN A and B Assys.
Panel holder V1 (43)
Panel holder V2 (43)
Hook
×3 Hook ×3
Front chassis VL (436SX)
