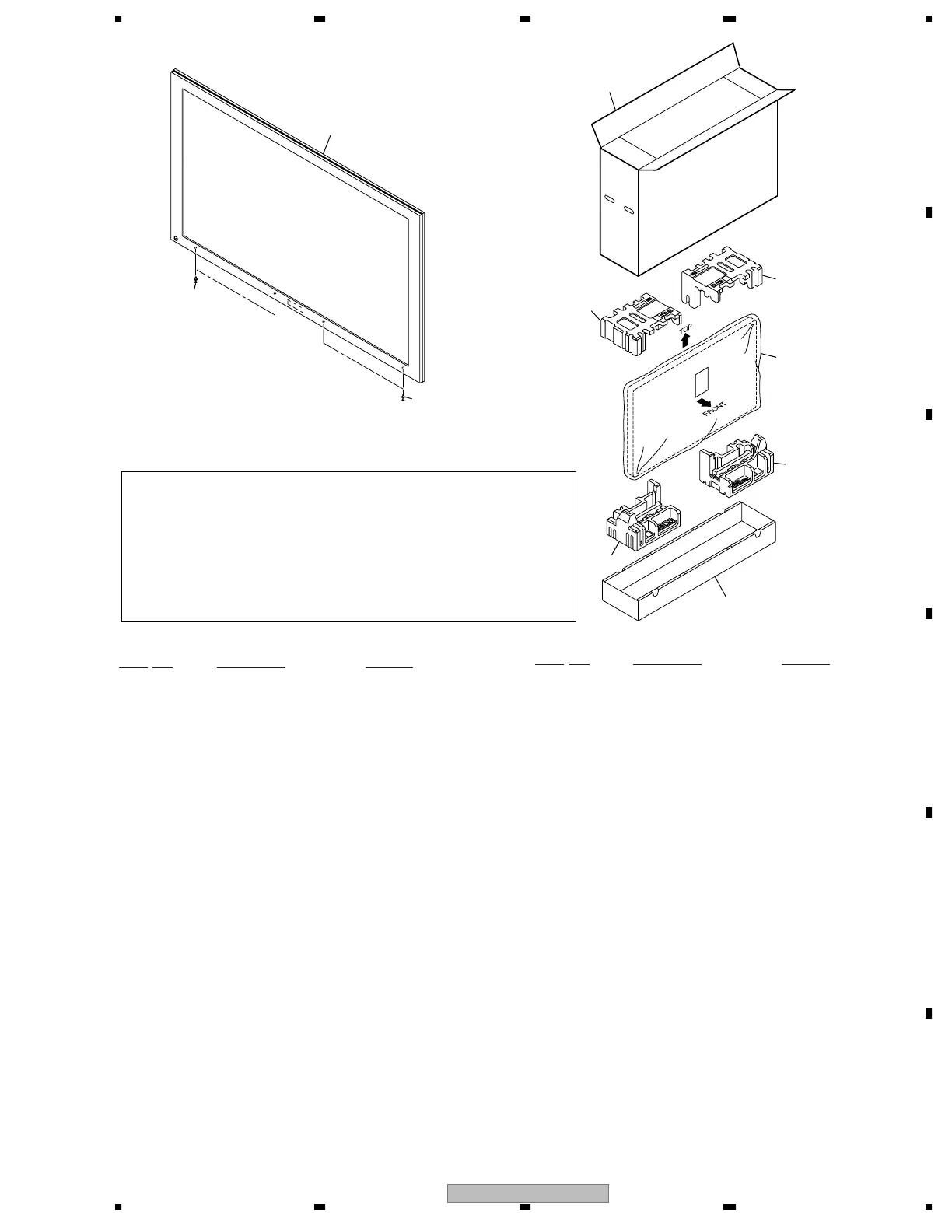

PDP SERVICE ASSY 506P (AWU1134) PARTS LIST
36
22
22
• Front Section • Packing Section
Note when replacing with the PDP Service Assy 506P
The Power Switch (S1), HD LED Assy, and HD IR Assy are not
included in the PDP Service Assy 506P. Before replacement with the
PDP Service Assy 506P, the following components of the Service Assy
must be temporarily detached to attach the above-mentioned parts
(parts from the original unit or newly purchased):
• Front Chassis H Assy (50) (ANA1883)
• Front Chassis VL (50) (AMA1014)
• Front Chassis VR (50) (AMA1015)
(for transport)
43
38
40
42
41
39
28
Mark
No. Description Part No.
NSP 1 Panel Chassis (506) Assy AWU1143
NSP 2 50 ADDRESS Assy AWV2208
NSP 3 50 SCAN A Assy AWW1026
NSP 4 50 SCAN B Assy AWW1027
5 PCB Spacer AEC1944
6 Conductive Plate Holder AMR3446
7 ADDRESS Holder Assy (50) AMR3454
8Tube Cover AMR3445
9 Address Heatsink (50) ANH1635
10 Address Silicone A AEH1093
11 Address Silicone B AEH1094
12 Screw BBB30P120FNI
13 Front Chassis VL (50) AMA1014
14 Front Chassis VR (50) AMA1015
15 Sub Frame L Assy (506) ANA1860
16 Sub Frame R Assy (506) ANA1861
17 Front Chassis H Assy (50) ANA1883
18 Conductive Plate XA ANG2776
19 Cushion AEB1424
NSP 20 PCB Spacer AEC1188
21 Wire Saddle AEC1745
22 Screw Rivet AEC1877
23 PCB Spacer AEC1941
24 Power Supply Insulation Sheet AMR3447
25 Audio Insulation Sheet AMR3469
NSP 26 Address Sheet AMR3491
NSP 27 Chassis Assy (50) ANA1830
28 Protect Sheet AHG1331
29 Screw (3 x 40P) ABA1332
30 Screw ABZ30P080FTC
31 Screw AMZ30P060FTB
32 Screw APZ30P080FTB
33 Screw PMB30P060FTC
34 Screw TBZ40P080FTB
35 Screw VBB30P080FNI
NSP 36 Front Case Assy (506 serivice) AMB2889
(for transport)
NSP 37 Rear Case (506) ANE1639
(for transport)
38 Pad (50T-L) AHA2427
39 Pad (50T-R) AHA2428
40 Pad (50B-L) AHA2429
41 Pad (50B-R) AHA2430
42 Under Carton AHA3344
43 Upper Carton (506 S.V.C) AHA3430
Mark
No. Description Part No.
To Next Page
