7. GENERAL INFORMATION
7.1 DIAGNOSIS

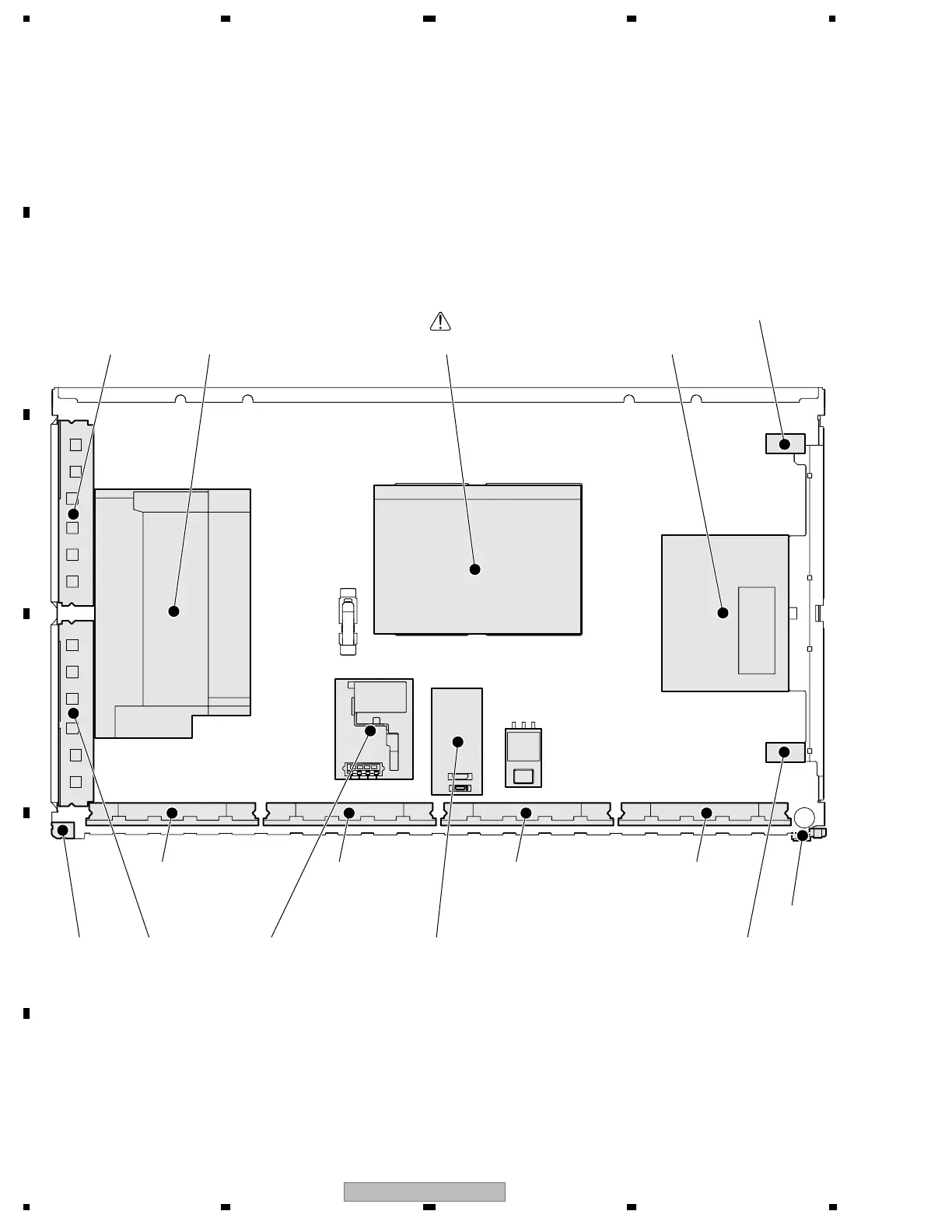

7.1.1 PCB LOCATION
POWER SUPPLY Unit
SUS CLAMP 1 Assy
50 Y DRIVE Assy50 SCAN B Assy
50 SCAN A Assy
HD LED
Assy
HD AUDIO Assy HD DIGITAL Assy SUS CLAMP 2 AssyHD IR Assy
50 ADDRESS Assy50 ADDRESS Assy 50 ADDRESS Assy 50 ADDRESS Assy
50 X DRIVE Assy
