Safety precautions
02
10
En
Installation precautions
Observe the following precautions when installing with any items
such as the optional stand.
When using the optional stand, brackets, or equivalent
items
Ask your dealer to perform the installation.
Be sure to use the supplied bolts.
For details, see the instruction manual that comes with the
optional stand (or equivalent items).
When using other items
Consult your dealer.

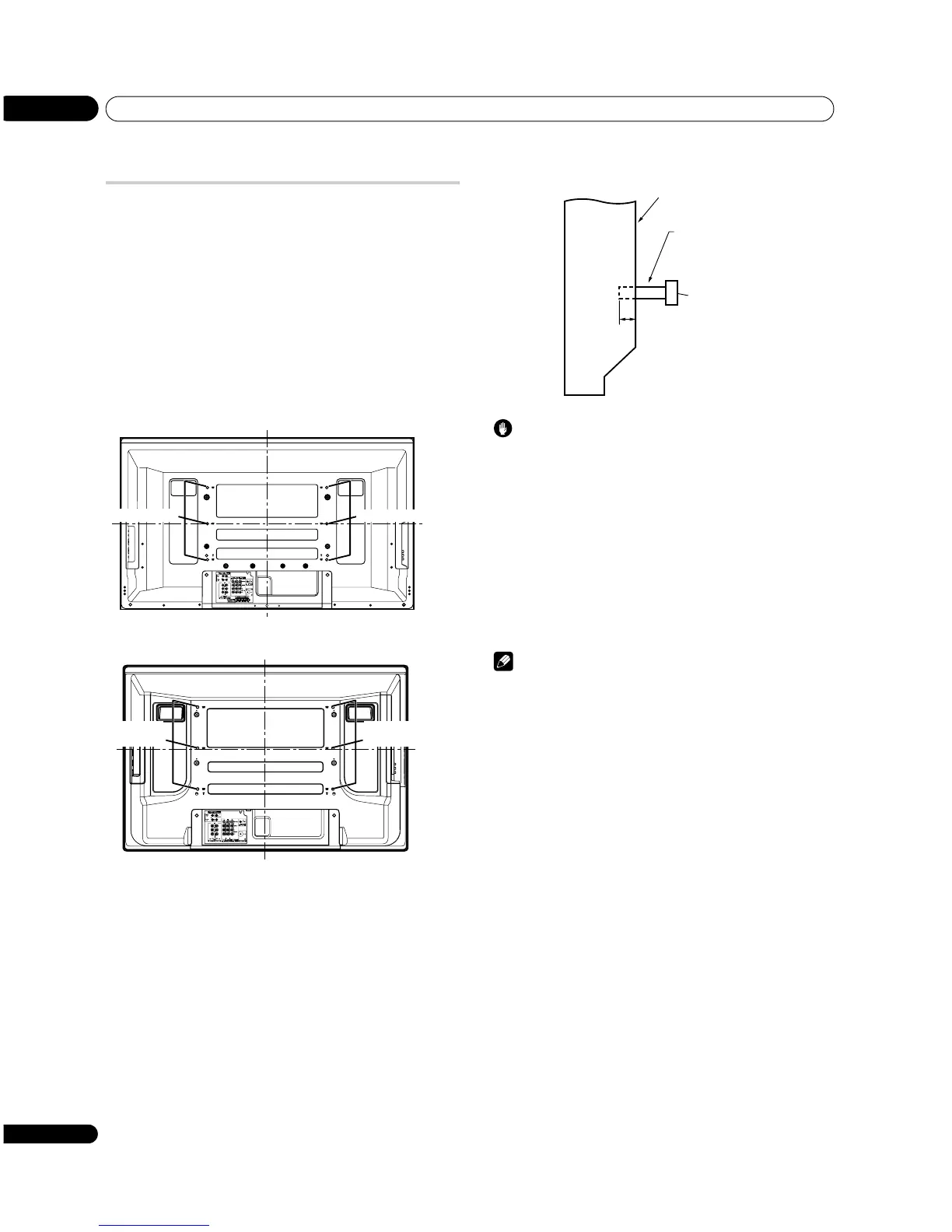

The following six mounting holes can be used for the installation:
Side view
Caution
• Be sure to use four or more mounting holes symmetrical to the
vertical and horizontal median lines.
• Use M8 screws, which go 12 mm to 18 mm in depth from the
mounting surface of the plasma display. See the side view
above.
• Be careful not to block the ventilation opening at the rear of the
plasma display.
• Be sure to install the plasma display on a flat surface because
it contains glass.
• The screw holes other than the above are to be used only for the
specified products. Never use them for mounting non-
specified products.
Note
• It is strongly recommended to use the optional Pioneer
mounting products.
• Pioneer shall not be liable for any personal injury or product
damage that results from the use of mounting items other than
the optional Pioneer products.
Median
line
Median line
Mounting holes
Mounting holes
Rear (PDP-507XDA)
Median line
Mounting
holes
Mounting
holes
Rear (PDP-427XDA)
Median
line
Mounting surface
Plasma display
M8 screw
12 mm to 18 mm
Mounting bracket
(or equivalent)
