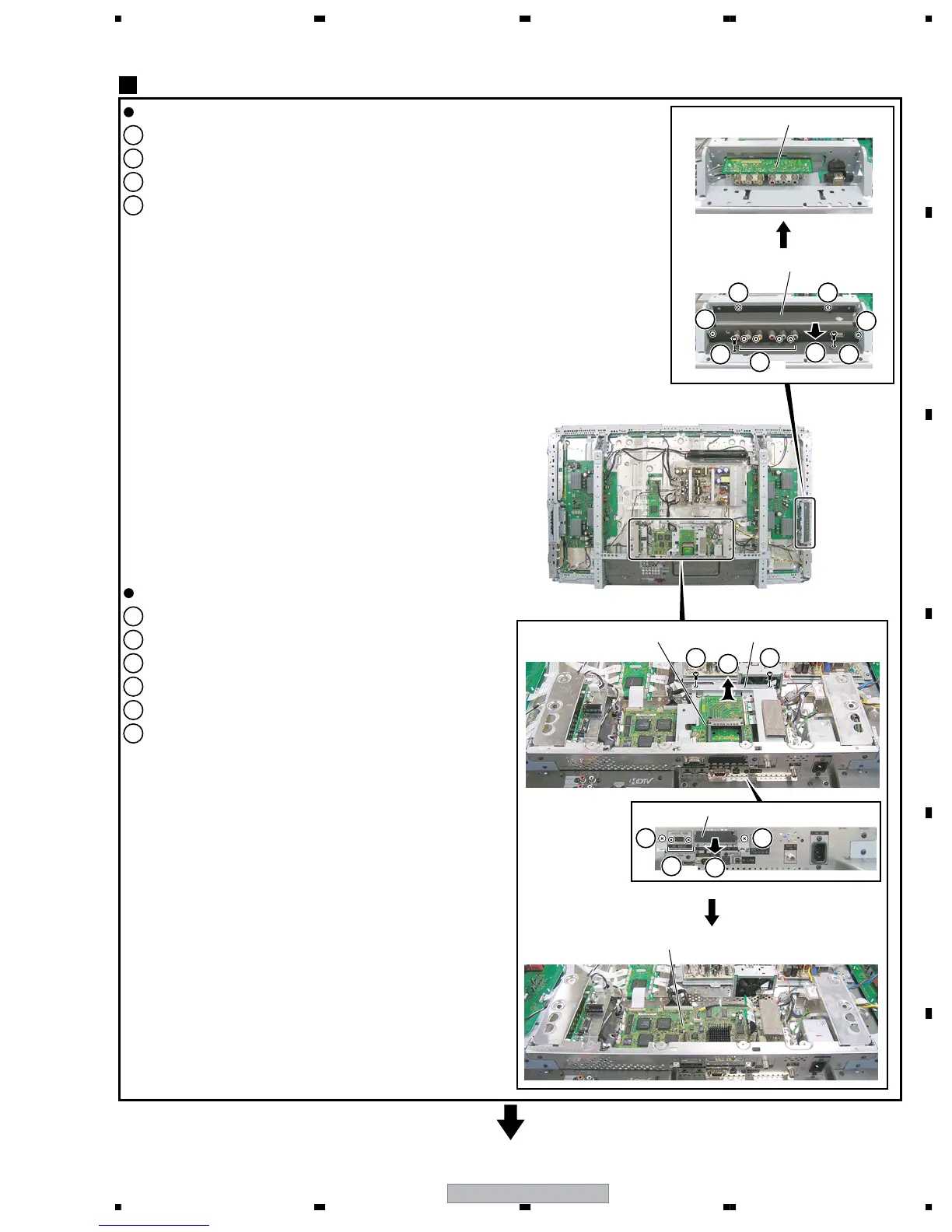

Access to PCB Assys
3
1
Remove the four screws.
2
Remove the two screws.
3
Remove the four screws.
4
Remove the side input panel (U).
SIDE Assy
MAIN Assy
2 2
3
1
1
1 1
4
Side input panel (U)
SIDE Assy
1
Disconnect cables, connectors, as required.
2
Remove the POD cover.
3
Remove the two hex. head screws.
4
Remove the two screws.
5
Remove the two screws.
6
Remove the POD stay A with PCB.
×2
3
2
POD Assy
POD cover
POD stay A
MAIN Assy
44
55
6
