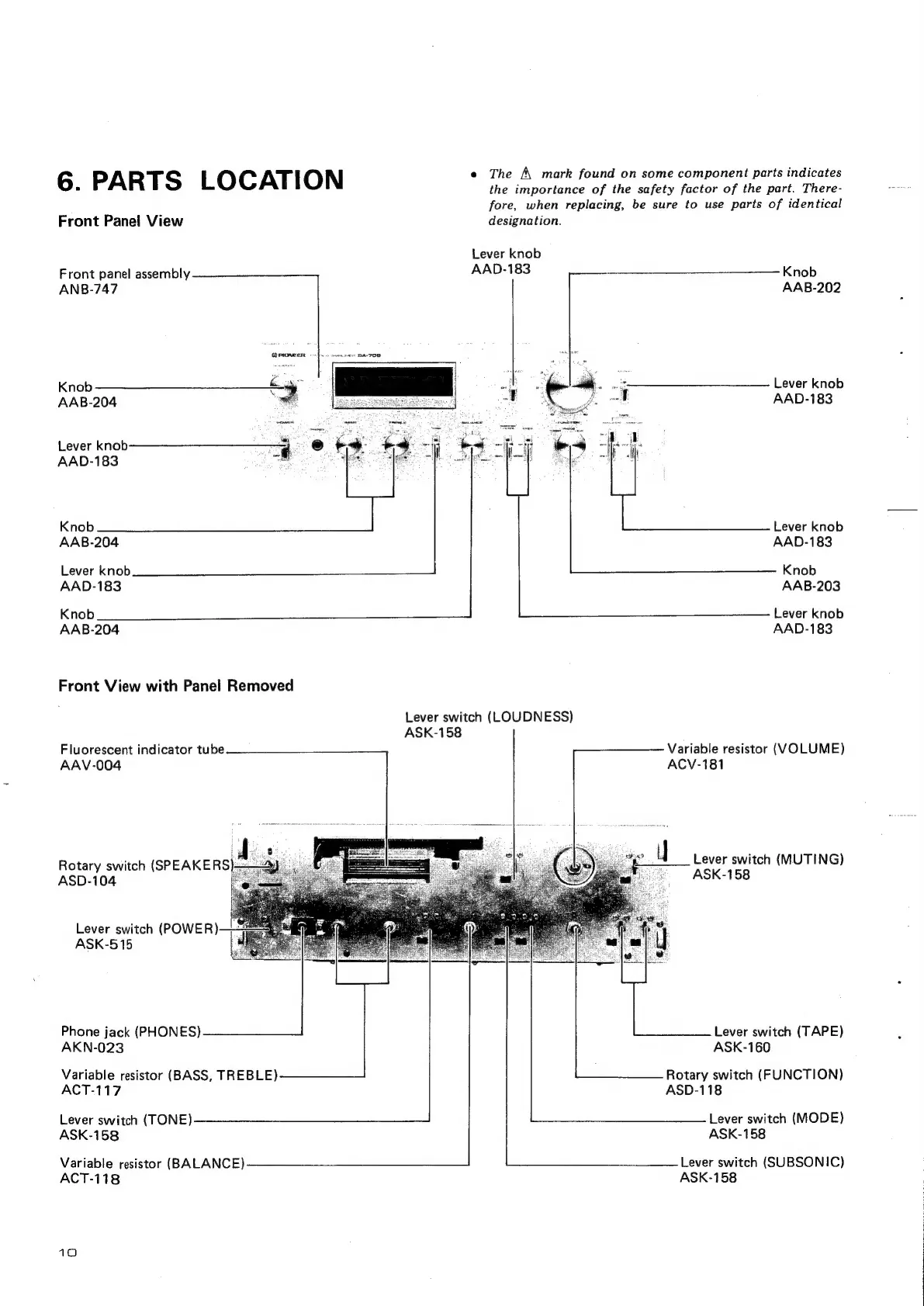

6. PARTS LOCATION Te inpovlunce of the walter felor of Me ben thre
fore, when replacing, be sure to use parts of identical
Front Panel View designation.
Lever knob
Front panel assembly AAD-183 Knob
ANB-747 AAB-202
Knob
Lever
knob
AAB-204 AAD-183
Lever knob
AAD-183
Knob Lever knob
AAB-204 AAD-183
Lever knob Knob
AAD-183 AAB-203
Knob Lever knob
AAB-204 AAD-183
Front View with Panel Removed
Lever switch (LOUDNESS)
ASK-158
Variable resistor (VOLUME)
ACV-181
Fluorescent indicator tube
AAV-004
4 Al
Lever switch (MUTING)
Rotary
switch
(SPEAKERS
ASK-158
ASD-104
Lever switch (POWER)
ASK-515
Phone jack (PHONES)
AKN-023
Lever switch (TAPE)
ASK-160
Rotary switch (FUNCTION)
ASD-118
Lever switch (MODE)
ASK-158
Variable resistor (BALANCE) Lever switch (SUBSONIC)
ACT-118 ASK-158
Variable resistor (BASS, TREBLE)
ACT-117
Lever switch (TONE)
ASK-158
