SA-708
Indicator Assembly (AWV-004) Volume Assembly (GWG-130)
CAPACITORS
Part
No.
Symbol
&
Description
Part No, Symbol & Description ACV-181 VR1 Variable resistor
(VOLUME)
CEANL OR1M 50 c1,C2 RD%PM 1043 R111, R112
CEA101P 16 C3 RD%PM 1235 R113, R114
CEA R47P 50 C4 CCDSL 271K 50 C101, C102
CQMA 332K 50 C5, C6 CQMA 473J 50 C103, C104
CKDYF 473Z 50 C7—C9 ASK-158 $5 Lever switch (LOUDNESS)
Note: When ordering resistors, convert the
resistance value into code form, and
RESISTORS then rewrite the part no. as before.
Part No. Symbol & Description
RD%PMF OOO J R1
RD%PM oo J R2—R4
ACP-078 VR1, VR2
SEMICONDUCTORS
Part No. Symbol & Description
TA7318P-A Ql
HA12010 Q2, Q3
OTHERS
Part No. Symbol & Description
AAV-004 v1 Fluorescent indicator tube
A ATT-577 TI Heater transformer

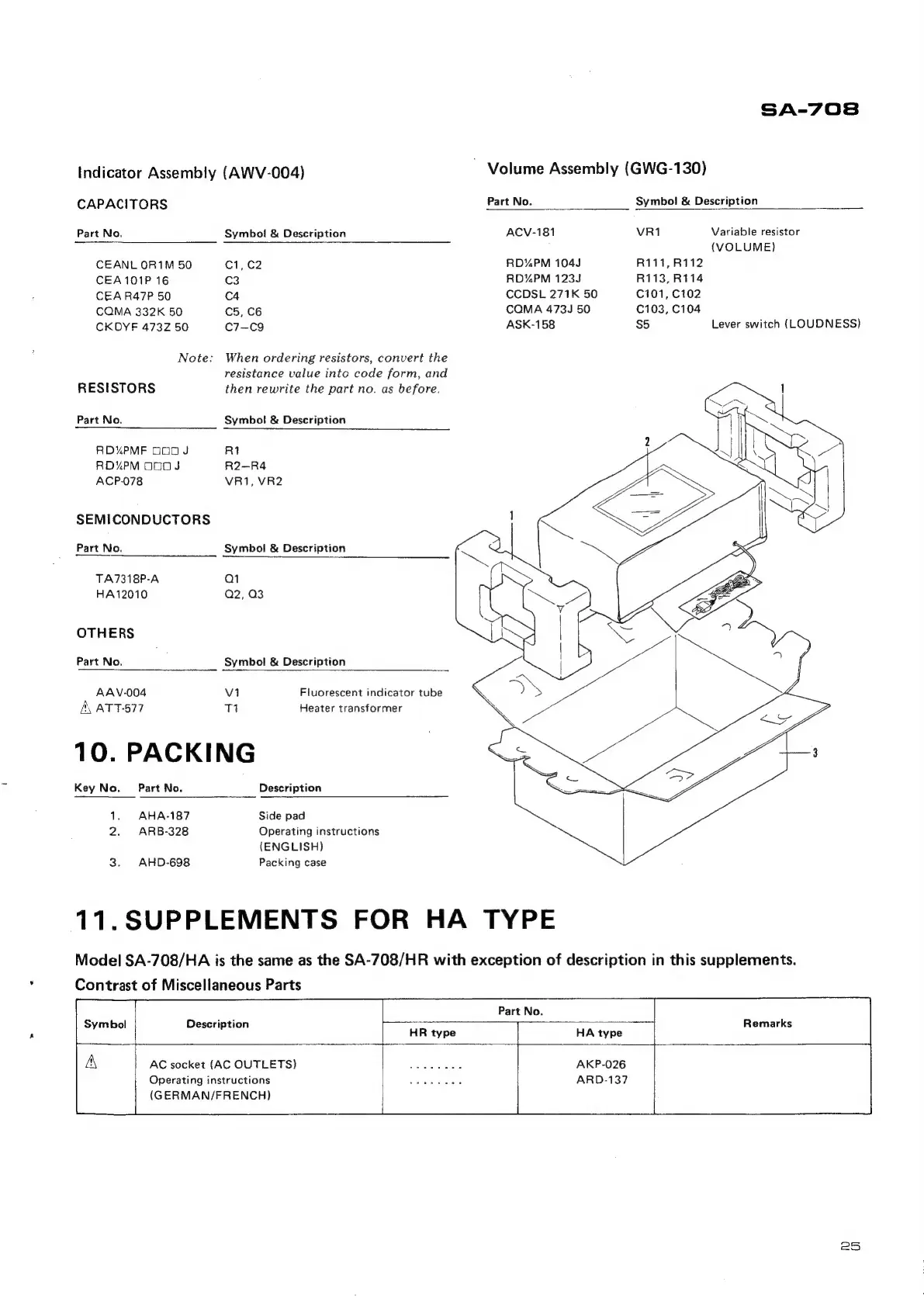

10. PACKING
Key No. Part No. Description
1. AHA-187 Side pad
ARB-328 Operating instructions
(ENGLISH)
3. AHD-698 Packing case
11. SUPPLEMENTS FOR HA TYPE
Model SA-708/HA is the same as the SA-708/HR with exception of description in this supplements.
Contrast of Miscellaneous Parts
Description Se Remarks
HA type
aot.
AC socket (AC OUTLETS) AKP-026
Operating instructions ARD-137
(GERMAN/FRENCH)
25
