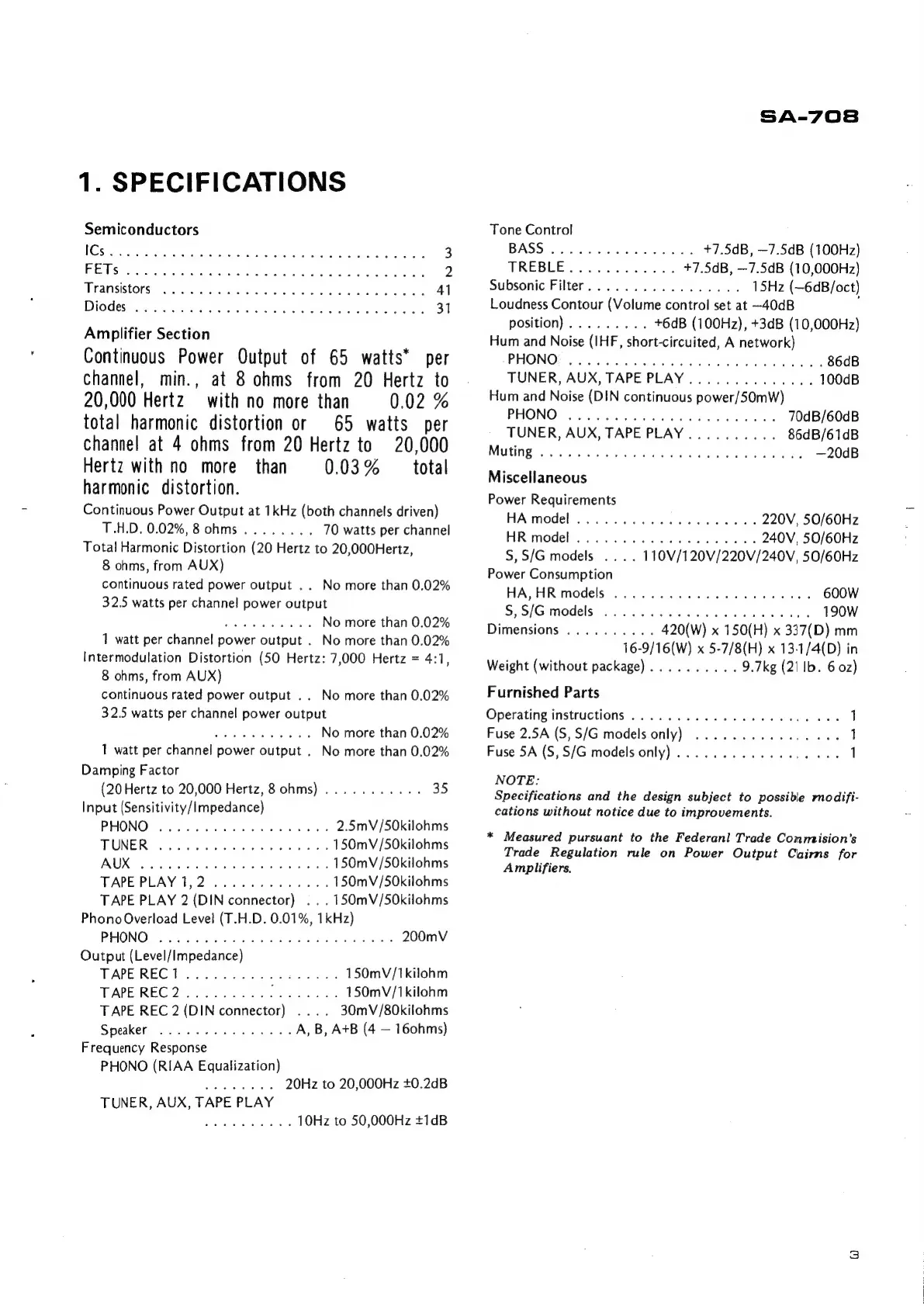

1. SPECIFICATIONS
Semiconductors
NOS kar aeeed odes, oA uta Mle hee Neha ney Set ets 3
PED Sics bie ts ete, Le ates eons on nek sat bear ten cc yas 2
Transistors... 0... 0.00. eee ee eee eee eae 41
DiOGES, a. 5: dcrey eis ee eed ek ale ela ane Sod eb 31
Amplifier Section
Continuous Power Output of 65 watts” per
channel, min., at 8 ohms from 20 Hertz to
20,000 Hertz with no more than 0.02 %
total harmonic distortion or 65 watts per
channel at 4 ohms from 20 Hertz to 20,000
Hertz with no more than 0.03% total
harmonic distortion.
Continuous Power Output at 1kHz (both channels driven)
T.H.D. 0.02%, 8 ohms ........ 70 watts per channel
Total Harmonic Distortion (20 Hertz to 20,000Hertz,
8 ohms, from AUX)
continuous rated power output .. No more than 0.02%
32.5 watts per channel power output
Pee ea as No more than 0.02%
1 watt per channel power output . No more than 0.02%
Intermodulation Distortion (50 Hertz: 7,000 Hertz = 4:1,
8 ohms, from AUX)
continuous rated power output .. No more than 0.02%
32.5 watts per channel power output
patella soa & No more than 0.02%
1 watt per channel power output . No more than 0.02%
Damping Factor
(20 Hertz to 20,000 Hertz, 8 ohms) ........... 35
Input (Sensitivity /Impedance)
PHONO) cscs ccna scckle o Bahan ots 2.5mV/SOkilohms
TUNER <n Se ead stakes 150mV/50kilohms
PUK etait he te cna Bee bho anes 8 150mV/S0kilohms
TAPE PLAY 1; 2° ses eta an 150mV/50kilohms
TAPE PLAY 2 (DIN connector) .. . 150mV/50kilohms
Phono Overload Level (T.H.D. 0.01%, 1kHz)
PHONO? 8S arte Rehr eee eS Goal Mel es 200mV
Output (Level/Impedance)
TeAPESRECH coach cosa id feb thee ots. oh tin 150mV/1kilohm
TAPE REC2.......... Se eats 150mV/1kilohm
TAPE REC 2 (DIN connector) 30mV/80kilohms
Speaker .........2.004. A, B, A+B (4 — 160hms)
Frequency Response
PHONO (RIAA Equalization)
Wade 20Hz to 20,000Hz +0.2dB
ates anise 10Hz to 50,000Hz +1dB
SA-708
Tone Control
BASS*<. 6.24 esos Boe ey +7.5dB, —7.5dB (100Hz)
TREBRES 3 | 424s +7.5dB, —7.5dB (10,000Hz)
Subsonic Filter................. 15Hz (—6dB/oct)
Loudness Contour (Volume control set at —40dB ,
position)......... +6dB (100Hz), +3dB (10,000Hz)
Hum and Noise (IHF, short-circuited, A network)
PHONO > ccvssithe ta 0S of Blane aes int hee a ee 86dB
TUNER, AUX, TAPE PLAY .............. 100dB
Hum and Noise (DIN continuous power/50mW)
PHONO 5:9 Miia t jusoued Sathana eoied 70dB/60dB
TUNER, AUX, TAPE PLAY .......... 86dB/61dB
MUTA es esr an ces ats aS bss icce alee thoes bd —20dB
Miscellaneous
Power Requirements
HA model: 36h eS had es 220V, 50/60Hz
HR model ............ 0.000005 240V, 50/60Hz
S,S/G models ..
Power Consumption
.. 110V/120V/220V/240V, 50/60Hz
HA, HR models ......... 0.000 cee eee 600W
S,S/G models ........... 00000. ee eee 190W
Dimensions .......... 420(W) x 150(H) x 337(D) mm
16-9/16(W) x 5-7/8(H) x 13-1/4(D) in
Weight (without package).......... 9.7kg (21 Ib. 6 02)
Furnished Parts
Operating instructions ........... 0.00000. ee 1
Fuse 2.5A (S,S/G models only) ............ 000. 1
Fuse 5A (S,S/G models only) ............... 005 1
NOTE:
Specifications and the design subject to possible rnodifi-
cations without notice due to improvements.
* Measured pursuant to the Federanl Trade Conmision’s
Trade Regulation rule on Power Output Cuirns for
Amplifiers,
