THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 22
Jun 1/03
5H18
91-10-00

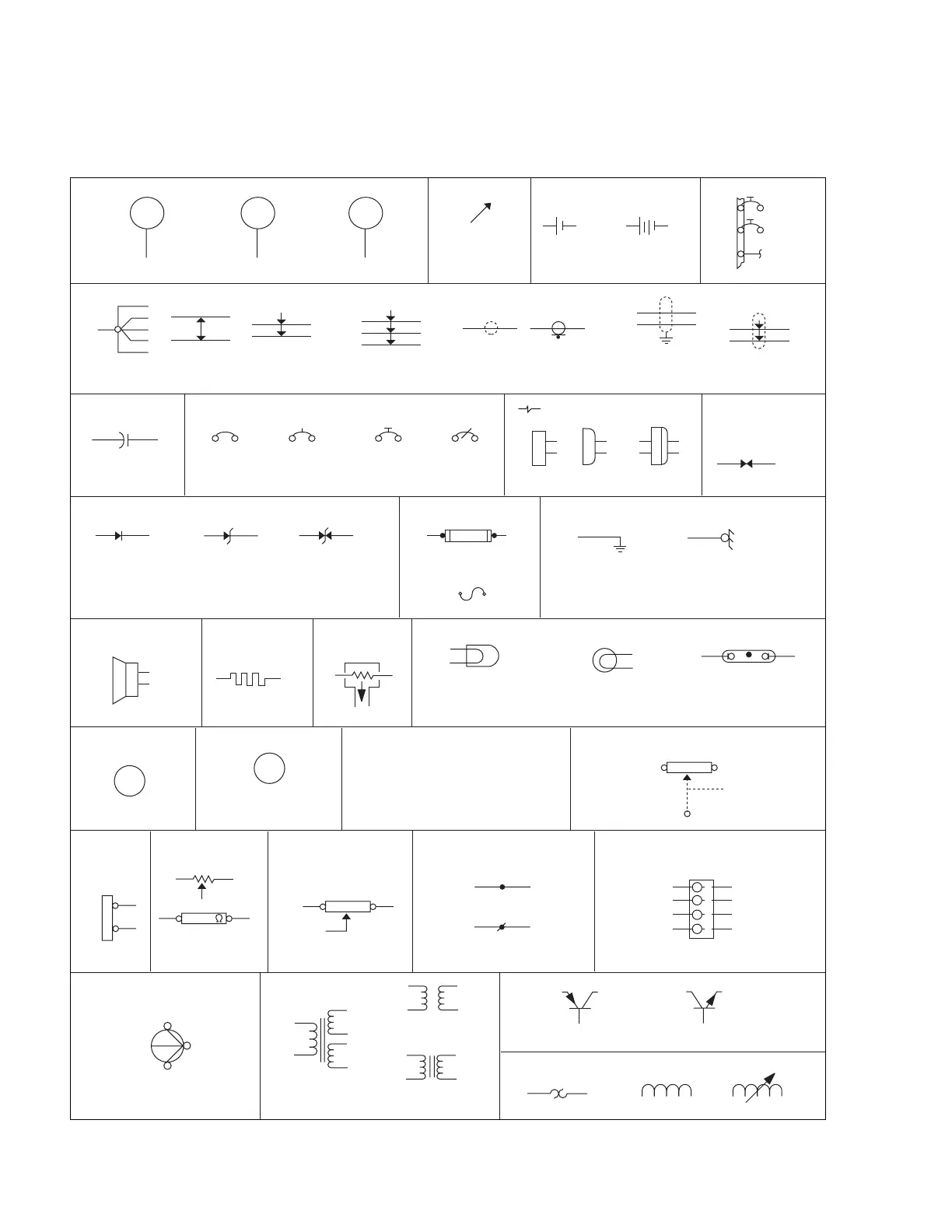

CHART 11 (Sheet 1 of 2)
ELECTRICAL SYMBOLS
AIRCRAFT LOCATION SYMBOLS
FUSELAGE STATION WATER LINE BUTT LINE
FS WL BL
ADJUSTABILITY
GENERAL
GENERAL
MULTICELL
BATTERIES
-+
BUS
SHIELDED
TWISTED
PAIR
COAXIAL
CABLE
SHIELDED
SINGLE
CONDUCTOR
TWISTED
TRIPLE
CABLES AND CONDUCTORS
TWISTED
PAIR
OR
GROUPING OF LEADS
CIRCUIT BREAKERS
CB
BASIC
PUSH
BREAKER
PUSH-PULL
BREAKER
CAPACITOR
GENERAL
SWITCH
BREAKER
CONNECTORS
CURRENT LIMITER
RECEPTACLE PLUG MATED PLUG
& RECEPTACLE
GROUND TO
CHASSIS
(WITH TERMINAL)
GROUND OR
CIRCUIT
RETURN
GROUNDS
FUSE
- A
DIODES
GENERAL ZENER,
UNIDIRECTIONAL
ZENER,
BIDIRECTIONAL
T
P
SHIELDED TWO
CONDUCTOR
W / GROUND
A
B
HORN
HEATED ELEMENT SQUIB ELECTRIC
IGNITER
A*
INDICATOR LIGHT
(* LETTER DENOTES
COLOR - ASTERISK
IS NOT PART OF SYMBOL)
INCANDESCENT
LAMP
LAMPS
FLUORESCENT
LAMP
MOTOR
METER
* LETTER DENOTES THE
TYPE OF METER
i.e. A = AMMETER
M
A
POLARITY
+-
POSITIVE NEGATIVE
POTENTIOMETER
RHEOSTAT
RESISTOR
RELAY COIL
SPLICE
PERMANENT
DISCONNECT
COILS
GENERAL
ADJUSTABLE
TRANSISTORS
PNP TYPE NPN TYPE
THERMAL ELEMENT
(TRANSDUCER)
GENERAL
GENERAL
NON SATURATING
TRANSFORMERS
SINGLE PHASE
(3) WINDING
W/CORE
TRANSDUCER
TERMINAL BOARD
1
2
3
4
OR
