Piper 6XT - CONTROL SYSTEM, PART 2

THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 11
Jun 1/03
1I21
12-20-00
COMPONENT LUBRICANT FREQUENCY
1. FLAP TORQUE TUBE BEARING BLOCKS (See Spec. Instr. 2) MIL-PRF-7870C 100 HRS
2. FLAP CONTROL ROD END BEARINGS (See Spec. Instr. 1) MIL-PRF-7870C 100 HRS
3. FLAP HANDLE PIVOT POINT, LOCK MECHANISM, AND TURNBUCKLE END MIL-PRF-7870C 100 HRS
(See Spec. Instr. 1 & 2)
4. FLAP RETURN AND TENSION CHAINS (See Spec. Instr. 2) MIL-PRF-7870C 100 HRS
5. AILERON BELLCRANK PIVOT POINTS (See Spec. Instr. 1) MIL-PRF-7870C 100 HRS
6. AILERON CONTROL ROD END BEARINGS (See Spec. Instr. 1) MIL-PRF-7870C 100 HRS
7. AILERON BELLCRANK CABLE ENDS (See Spec. Instr. 1) MIL-PRF-7870C 100 HRS
8. FLAP CABLE (See Spec. Instr. 2, 12, & 13)
( Not Shown ) MIL-G-23827 100 HRS

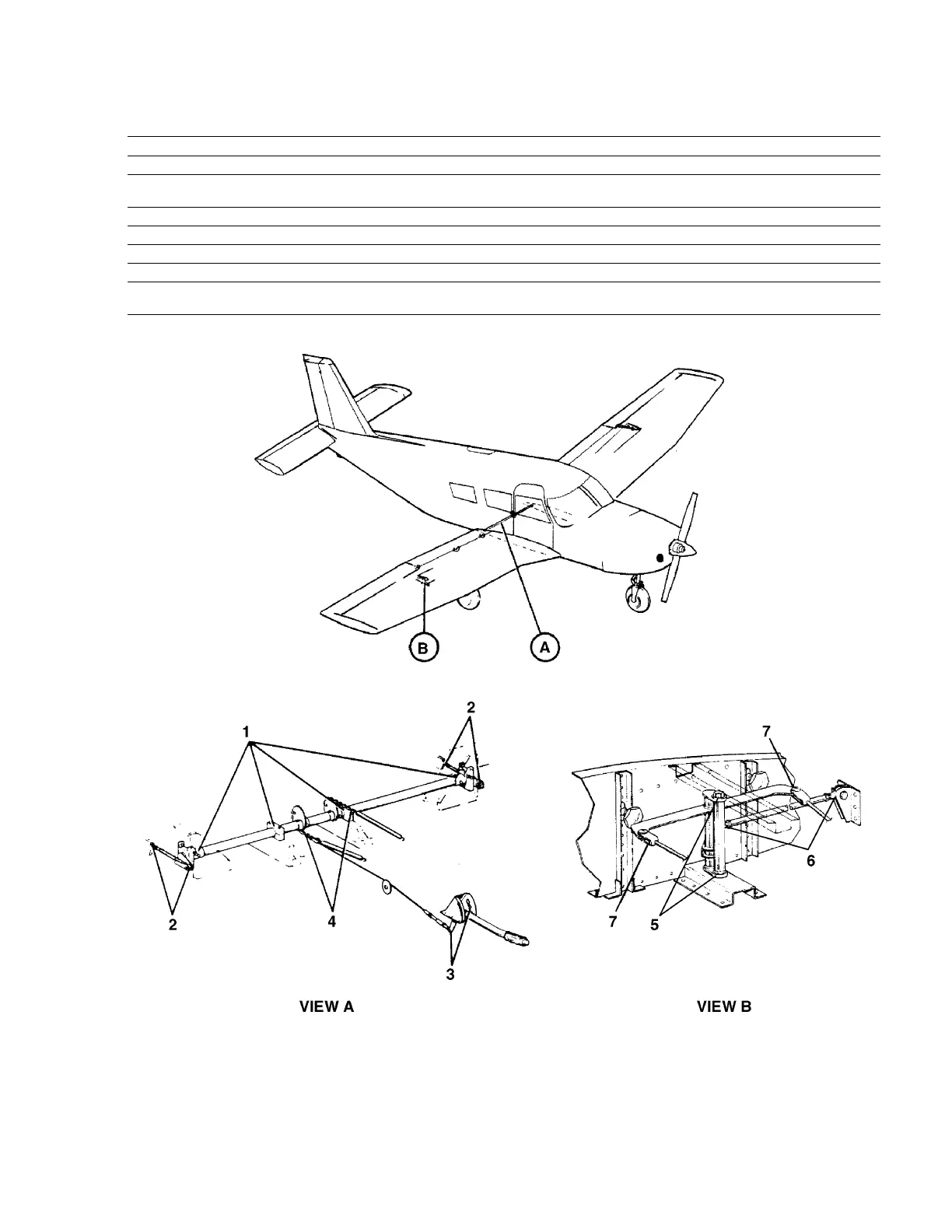

Lubrication Chart - Control System, Part 2
Figure 5
