THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 32
Jun 1/03
2D20
21-50-00
(5) Drive Belt Service
(a) Replacement (See Figure 13.)
1 Remove old belt by removing spinner, propeller, cowling, engine baffles as required,
starter ring gear assembly, and drive belt.
CAUTION: DO NOT FORCE BELT INTO PULLEY SHEAVE. REMOVE IDLER
ASSEMBLIES, IF NECESSARY, AND ALTERNATOR LOWER
MOUNTING BOLTS TO INSTALL BELT.
2 Position new belt on starter ring gear sheave.
3 Install starter ring gear assembly, propeller, and spinner.
4 Route belt to proper pulley sheaves.

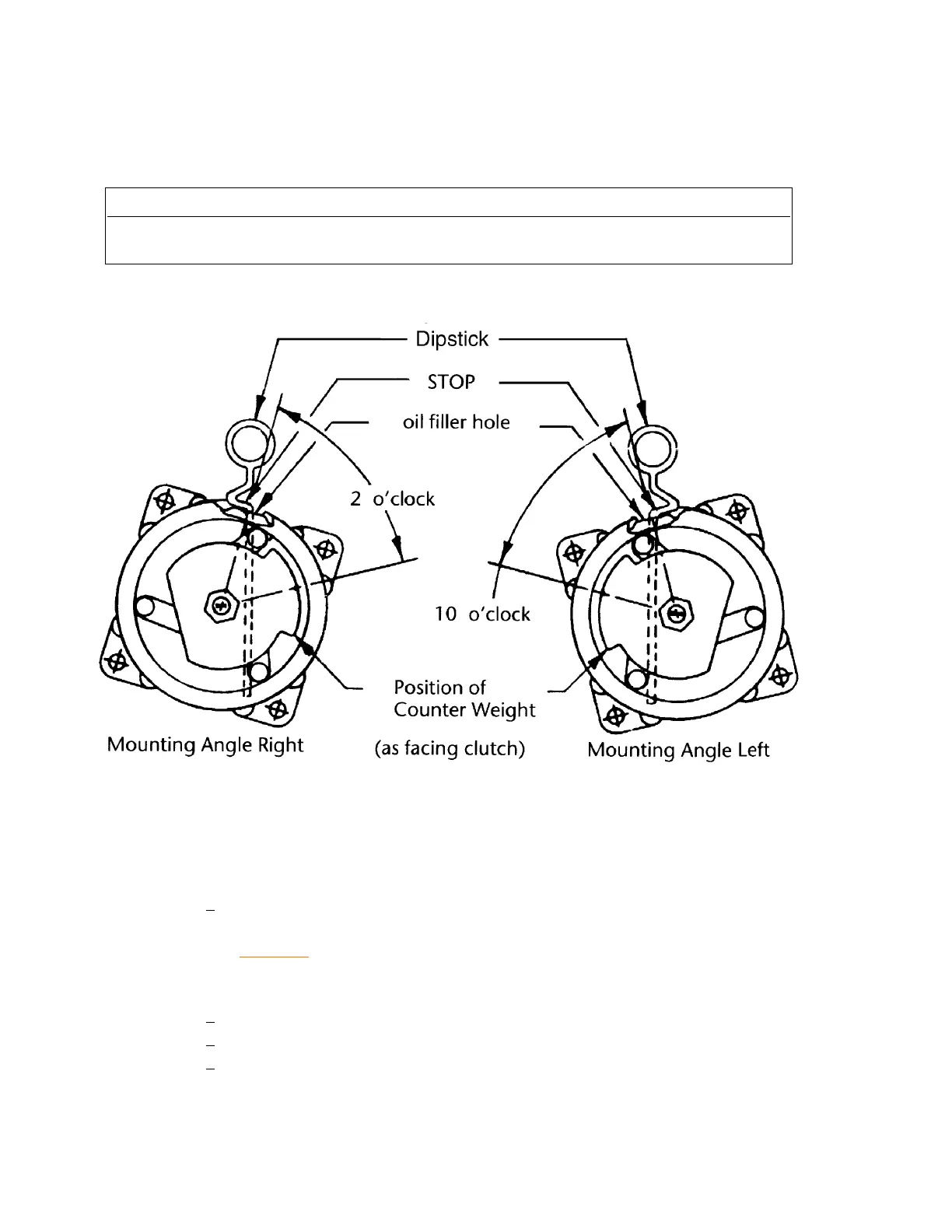

Sanden Compressor Mounting Angle
Figure 12
Mounting Angle 0° 10° 20° 30° 40° 50° 60° 90°
Oil Level 3-5 5-7 6-8 7-9 8-10 8-10 9-11 9-11
(in notches)
CHART 7
SANDEN COMPRESSOR OIL LEVEL VS. MOUNTING ANGLE
