Piper 6XT - FLIGHT CONTROLS; ELEVATOR AND TAB

THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 1
Feb 19/04
5I13
91-27-30

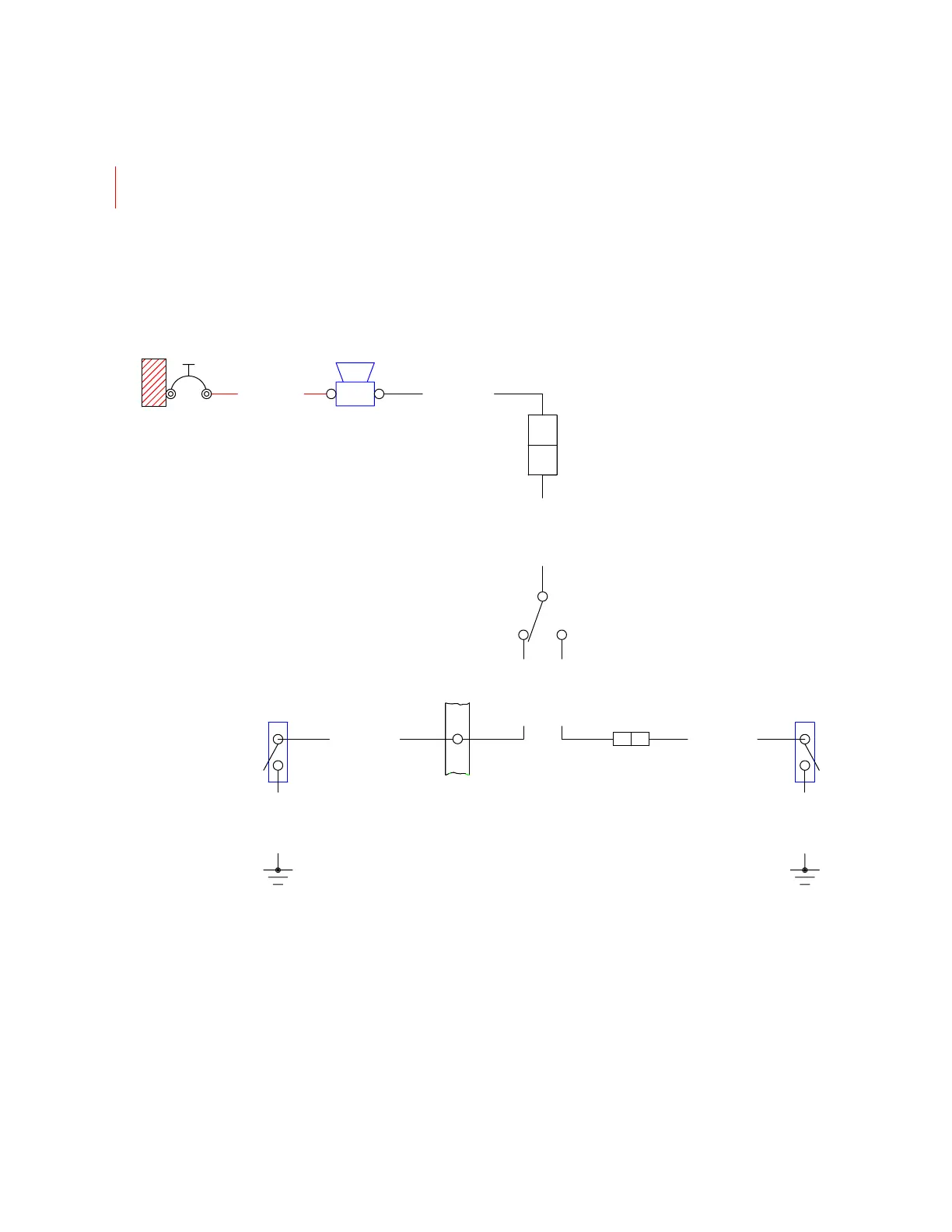

Stall Warning
Figure 1
F1A20
STALL
WARN
5A
F1B20
7
F1E20
7
STALL WARNING
HORN
P1
R1
C
NONC
0˚-10˚
25˚-40˚
F1F20 F1K20
FLAP
POSITION
SWITCH
8
F1C20 F1L20
F1J20 F1J20
INBOARD
LIFT DETECTOR
OUTBOARD
LIFT DETECTOR
CB-13
105232 8.0 NEW / G
101849 8.0 NEW
