Piper 6XT - CONTROL SYSTEM, PART 1

THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 10
Jun 1/03
1I20
12-20-00
COMPONENT LUBRICANT FREQUENCY
1. AILERON HINGE bearings (See Spec. Instr. 1) MIL-PRF-7870C 100 HRS
2. FLAP HINGE BEARINGS (See Spec. Instr. 1) MIL-PRF-7870C 100 HRS
3. STABILATOR HINGE PINs (See Spec. Instr. 1) MIL-PRF-7870C 100 HRS
4. RUDDER HINGE BEARINGs (See Spec. Instr. 1) MIL-PRF-7870C 100 HRS
5. CONTROL CABLE PULLEYS (See Spec. Instr. 12 & 13) MIL-PRF-7870C 100 HRS
6. STABILATOR TRIM CONTROL WHEEL (See Spec. Instr. 1 &12) MIL-PRF-7870C 100 HRS
7. O-RING, CONTROL SHAFT BUSHING (See Spec. Instr. 2 & 12) PARKER O-RING
LUBRICANT AS REQUIRED
8. TEE BAR PIVOT POINT (See Spec. Instr. 1 & 12) MIL-PRF-7870C 100 HRS
9. CONTROL COLUMN CHAIN (See Spec. Instr. 2 & 12) MIL-PRF-7870C 500 HRS
10. CONTROL COLUMN FLEX JOINTS AND SPROCKET
(See Spec. Instr. 2 & 12) MIL-PRF-7870C 100 HRS
11. STABILATOR CONTROL (See Spec. Instr. 1 & 12) MIL-PRF-7870C 100 HRS
12. AILERON, STABILATOR, AND RUDDER CONTROL CABLES,
AND STABILATOR TRIM CABLES (See Spec. Instr. 2, 12, & 13)
( Not Shown ) MIL-G-23827 100 HRS

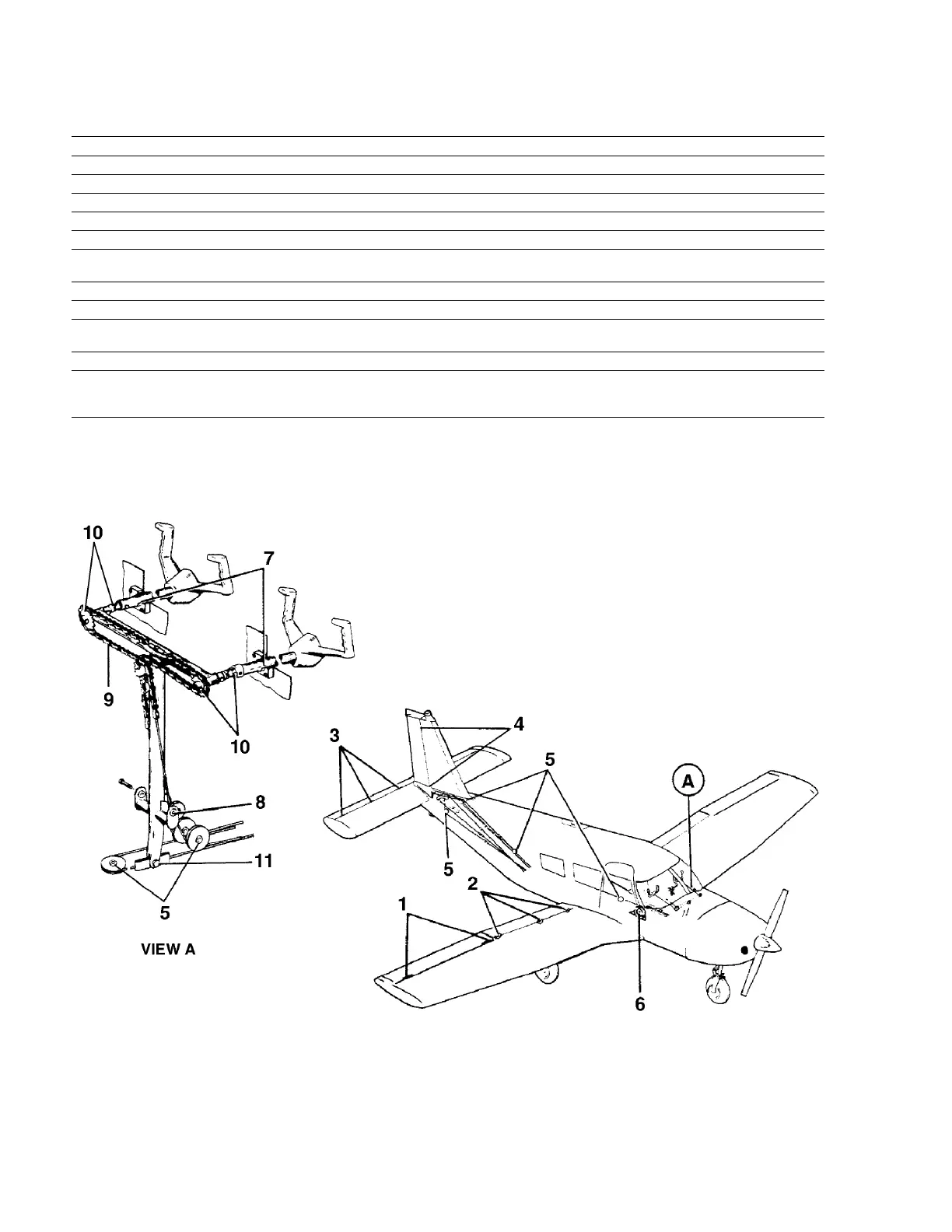

Lubrication Chart - Control System, Part 1
Figure 4
