Piper 6XT - NAVIGATION AND PITOT;STATIC; ATTITUDE AND DIRECTION

THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 1
Feb 19/04
5J17
91-34-20

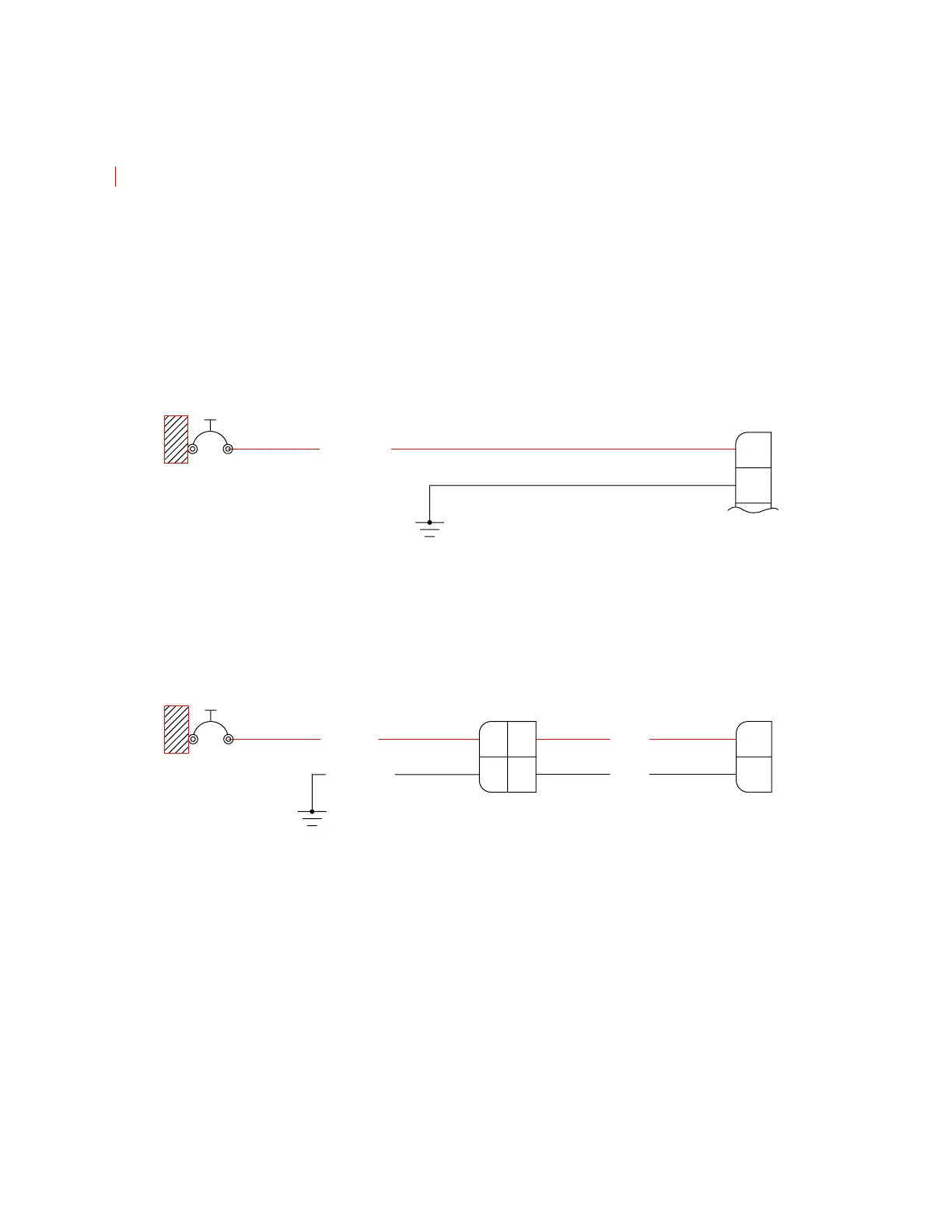

Turn and Bank Indicator
Figure 1
F2B
TURN & BANK
5A
2
1
F2A20
1
F2C
A
B2
PILOT
(STANDARD)
CB-33
TURN & BANK
CB-33
5A
RED A+
B
A
TURN COORDINATOR
F2A20N
R27
P27
PILOT
WITH
S-TEC AUTOPILOT
(OPTIONAL)
105232 10.0 NEW / G
TURN COORDINATOR
