THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 1
Jun 1/03
3D21
30-30-00
PITOT AND ST
A
TIC
The heated pitot-static mast installed in these airplanes is controlled by a single switch in the center of
the instrument panel.
The system is quite simple in that it comprises only a heated pitot-static head, an ON-OFF switch, and a
circuit breaker to protect the circuit. The pitot-static head is installed on the left wing.

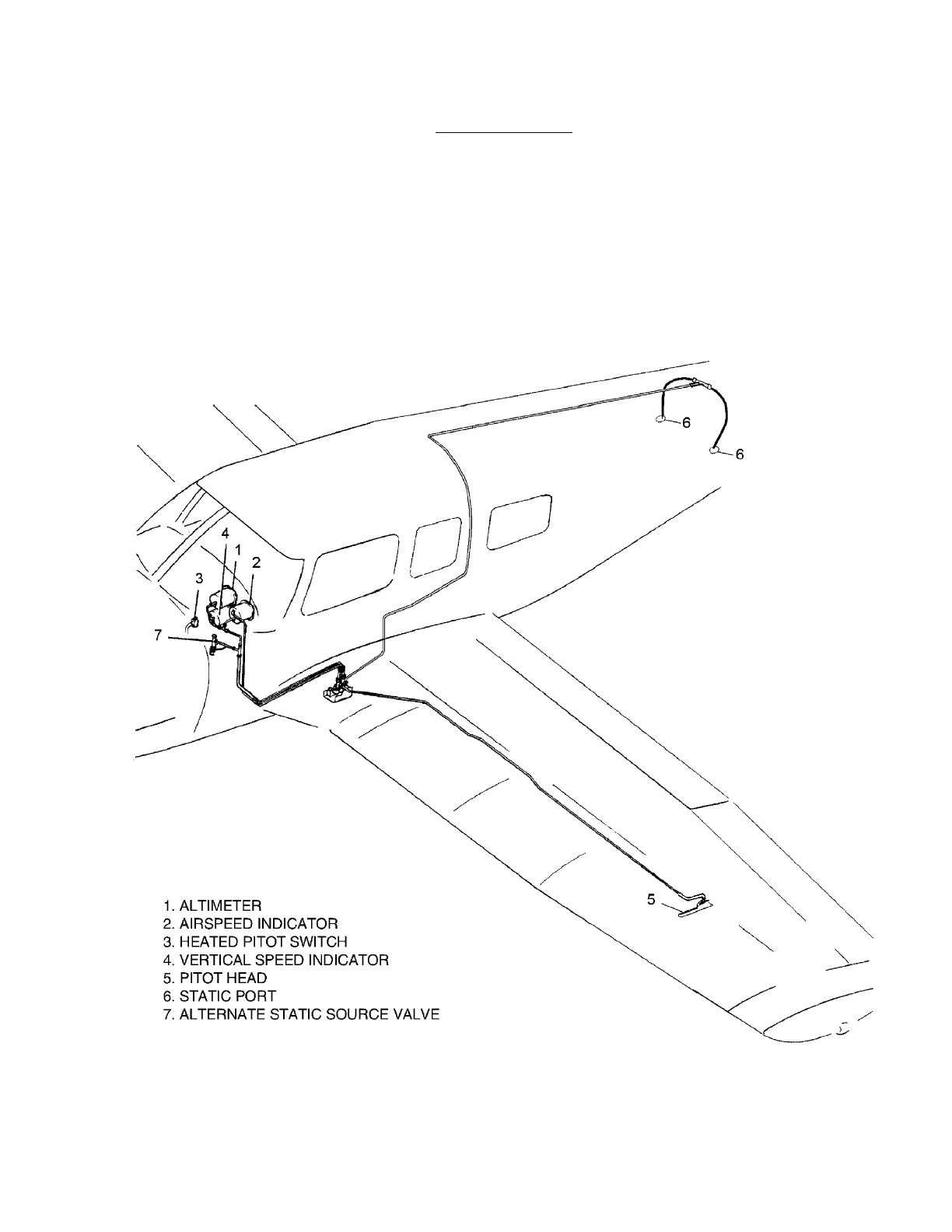

Pitot Static System Installation
Figure 1
