Piper 6XT - Page 1143

47K OHM 1000 OHM
* (HAS INTERNAL SUPPRESSION)
30
R22
SEE AVIONICS (COMM/NAV 1 HARNESS)
SEE AVIONICS (COMPASS HARNESS)
33 32 31
K8
R20
12
SEE AVIONICS (DME HARNESS)
}
J101
P101
16 15
*
11
TO SHEET 5
TO SHEET 5
101849 5.2 NEW
THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 7
Feb 19/04
5J3
91-31-50
Annunciator

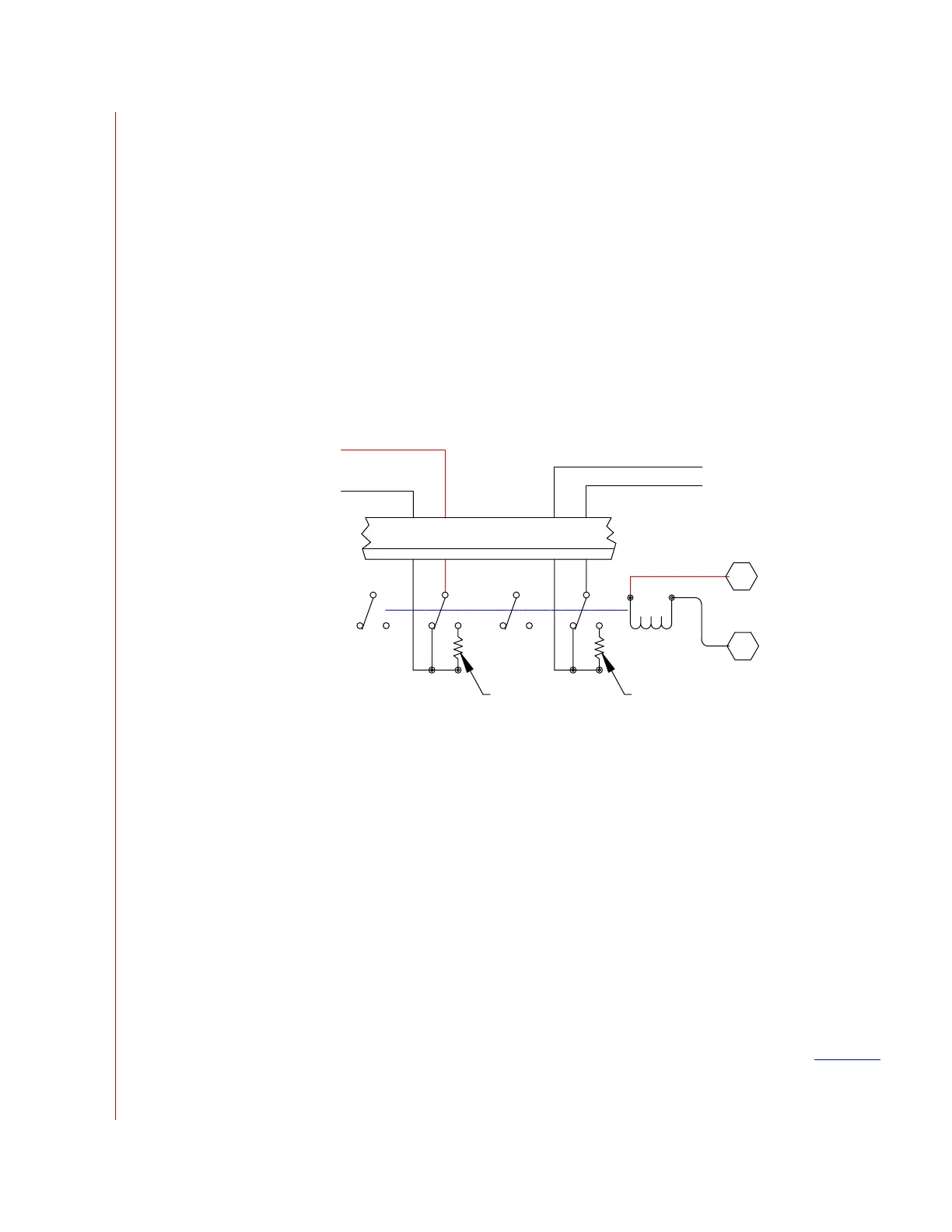

Figure 1 (Sheet 6 of 6)
Effectivity
with Avidyne Entegra option
3232014 & up
3255015 & up
